2.4 Exterior & Dimensions
2.5

Front View

On the front of the UPS, there are a 10" color touch panel, a tri-color LED indictor, two door
switches and eight stands. Please see Figure 2-2.
1. For information about the 10" color touch panel, please refer to 7. LCD Display &
Settings.
2. For information about the tri-color LED indicator, please refer to 2.8 Tri-color LED
Indicator & Buzzer.
Please refer to 5.4 Fixing the UPS for relevant information.
4. Please refer to Figure 2-3 for how to open the UPS front doors.
Modulon DPH Series
1200
mm

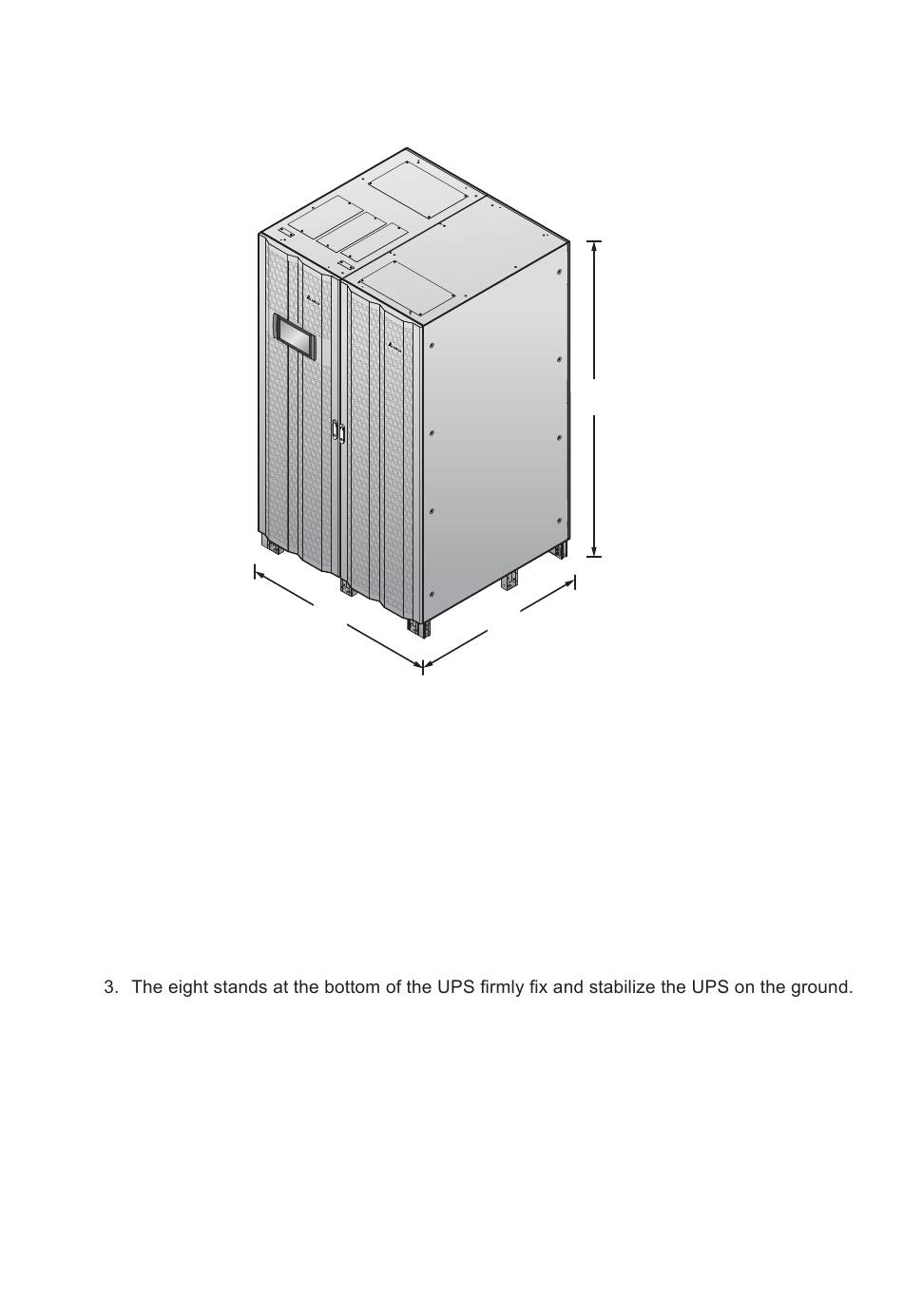

(Figure 2-1: Exterior & Dimensions)
2-6
2000
mm
1100
mm
