How to Program
Operating variables with different formatting are shown in
each status screen.
2 2
Several values or measurements can be linked to each of
the shown operating variables.
Define the values/measurements to be shown via:
•
Parameter 0-20 Display Line 1.1 Small
•
Parameter 0-21 Display Line 1.2 Small
•
Parameter 0-22 Display Line 1.3 Small
•
Parameter 0-23 Display Line 2 Large
•
Parameter 0-24 Display Line 3 Large
which can be accessed via [Quick Menu], Q3 Function Set-
ups, Q3-1 General Settings, Q3-13 Display Settings.
Each value/measurement readout parameter selected in
parameter 0-20 Display Line 1.1 Small to
parameter 0-24 Display Line 3 Large has its own scale and
number of digits after a possible decimal point. Larger
numeric values are shown with few digits after the decimal
point.
Ex.: Current readout
5.25 A; 15.2 A 105 A.
Status display I
This readout state is standard after start-up or initialization.
Press [INFO] to obtain information about the value/
measurement linked to the shown operating variables (1.1,
1.2, 1.3, 2, and 3).
See the operating variables shown in the display in
Illustration 2.2. 1.1, 1.2, and 1.3 are shown in small size. 2
and 3 are shown in medium size.

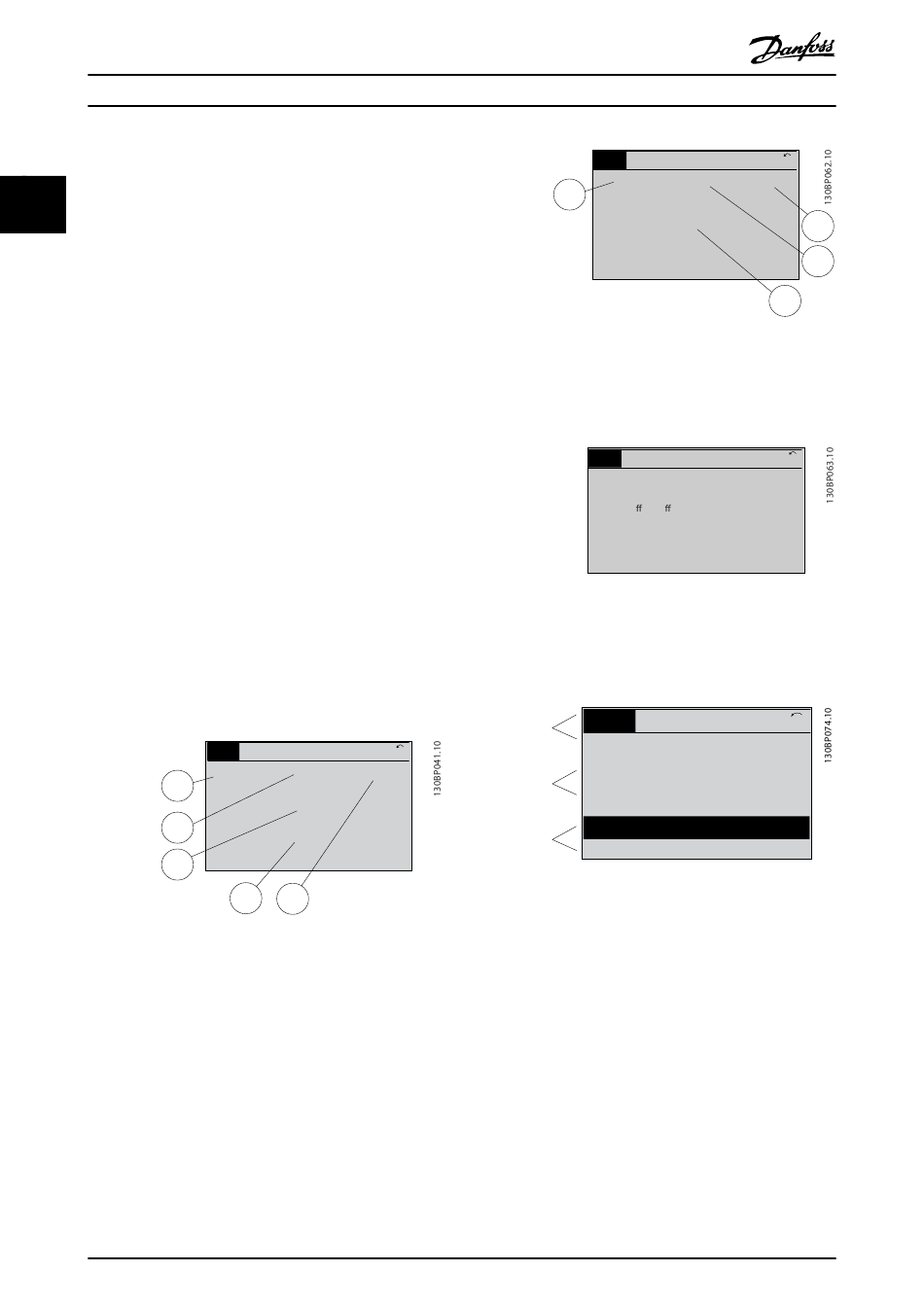

Illustration 2.2 Example of Status Display I
Status display II
See the operating variables (1.1, 1.2, 1.3, and 2) shown in
the display in Illustration 2.3.
In the example, speed, motor current, motor power, and
frequency are selected as variables in the first and second
lines.
1.1, 1.2, and 1.3 are shown in small size. 2 is shown in
large size.
14
Status
799 RPM 7.83 A
1.1
0.000
1.2
53.2 %
Auto Remote Ramping
2
3
1.3
Danfoss A/S © 05/2016 All rights reserved.
®
VLT Refrigeration Drive FC 103
Illustration 2.3 Example of Status Display II
Status display III
This state displays the event and action of the smart logic
control.
Illustration 2.4 Example of Status Display III
Display contrast adjustment
Press [Status] and [
Press [Status] and [
Top section
1 (1)
36.4 kw
Middle section
Bottom section
Illustration 2.5 Display Sections
Indicator lights (LEDs)
If certain threshold values are exceeded, the alarm and/or
warning LED lights up. A status and alarm text appear in
the display.
The On LED is activated when the frequency converter
receives power from mains voltage, a DC bus terminal, or a
24 V external supply. At the same time, the backlight is on.
•
•
•
Status
207RPM 5.25A
1.1
6.9
Hz
Auto Remote Running
Status
778 RPM 0.86 A
State: 0 o 0 (o )
When: -
Do: -
Auto Remote Running
▲
] for darker display.
▼
] for brighter display.
Status
43 RPM 5.44 A
1.4 Hz
2.9%
! Pwr.card temp (W29)
Auto Remote Running
Green LED/On: Control section is working.
Yellow LED/Warn.: Indicates a warning.
Flashing Red LED/Alarm: Indicates an alarm.
1 (1)
24.4 kW
1.3
1.2
2
1 (1)
4.0 kW
! 1(1)
25.3kW
