3.5 Parameters: 3-** Reference/Ramps

3.5.1 3-0* Reference Limits
3-02 Minimum Reference
Range: Function:
Size [ -999999.999 - Enter the minimum reference. The
related par. 3-03 minimum reference is the lowest
*
ReferenceFeed- value obtainable by summing all
backUnit] references. The minimum reference
value and unit match the configu-
ration made in
parameter 1-00 Configuration Mode
and parameter 20-12 Reference/
Feedback Unit.
NOTICE
This parameter is used in open
loop only.
3-03 Maximum Reference
Range: Function:
Size [ par. 3-02 - Enter the maximum reference. The
related 999999.999 maximum reference is the highest
*
ReferenceFeed- value obtainable by summing all
backUnit] references.
The maximum reference unit
matches the configuration selected
in parameter 1-00 Configuration
Mode: For [1] Speed closed loop,
RPM; for [2] Torque, Nm.
If [9] Positioning is selected in
parameter 1-00 Configuration Mode,
this parameter defines the default
speed for positioning.
MG16H202
Programming Guide
3-04 Reference Function
Option:
[0] Sum
*
[1] External/
Preset
3.5.2 3-1* References
Select the preset reference(s). Select Preset ref. bit 0/1/2
[16], [17], or [18] for the corresponding digital inputs in
parameter group 5-1* Digital Inputs.
3-10 Preset Reference
Array [8]
Range:
0 %
*
100 %]
Preset

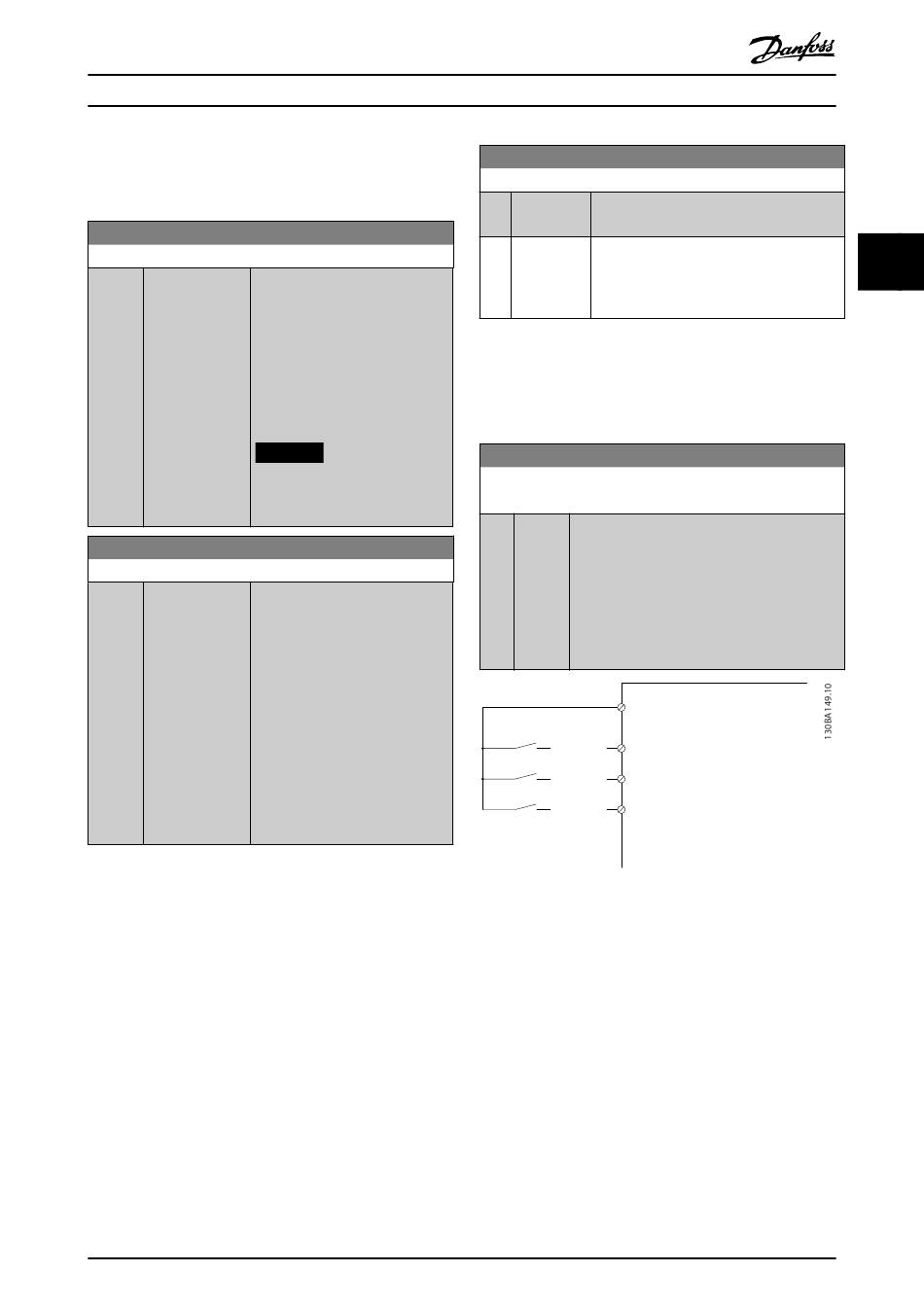

Illustration 3.16 Preset Reference Scheme
Danfoss A/S © 05/2016 All rights reserved.
Function:
Sums both external and preset reference
sources.
Use either the preset or the external
reference source.
Shift between external and preset via a
command or a digital input.
Function:
[-100 - Enter up to 8 different preset references (0-7) in
this parameter, using array programming. The
preset reference is stated as a percentage of the
value Ref (parameter 3-03 Maximum Reference).
MAX
When using preset references, select preset
reference bit 0/1/2 [16], [17], or [18] for the
corresponding digital inputs in parameter group
5-1* Digital Inputs.
12 (+24V)
76543210
29 [P 5-13=Preset ref. bit 0]
10101010
11001100 32 [P 5-14=Preset ref. bit 1]
33 [P 5-15=Preset ref. bit 2]
11110000
3 3
55
