Parameter Description
conditions are monitored to find out when load has been
applied to the system again.
Sleep mode can be activated either from the no-flow
detection/minimum speed detection (must be
programmed via parameters for no-flow detection, see the
signal flow-diagram in parameter group 22-2*, No-Flow
Detection) or via an external signal applied to 1 of the
digital inputs (must be programmed via the parameters for
configuration of the digital inputs, parameter group 5-1*
Digital Inputs selecting [66] Sleep Mode). Sleep mode is
activated only when no wake-up conditions are present.
To enable use of, for example, an electro-mechanical flow
switch to detect a no-flow condition and activate sleep
mode, the action takes place at the raising edge of the
external signal applied (otherwise the frequency converter
would stay in sleep mode as the signal would be steadily
connected).
NOTICE
If sleep mode is to be based on no-flow detection/
minimum speed, select [1] Sleep Mode in
parameter 22-23 No-Flow Function.
If parameter 25-30 Destage At No-Flow is set for [1] Enabled,
activating sleep mode sends a command to the cascade
controller (if enabled) to start de-staging of lag pumps
(fixed speed) before stopping the lead pump (variable
speed).
When entering sleep mode, the lower status line in the
LCP shows Sleep Mode.
See also signal flow chart in parameter group 22-2* No-Flow
Detection.
There are the following ways of using the sleep mode
function:
MG16H202
Programming Guide

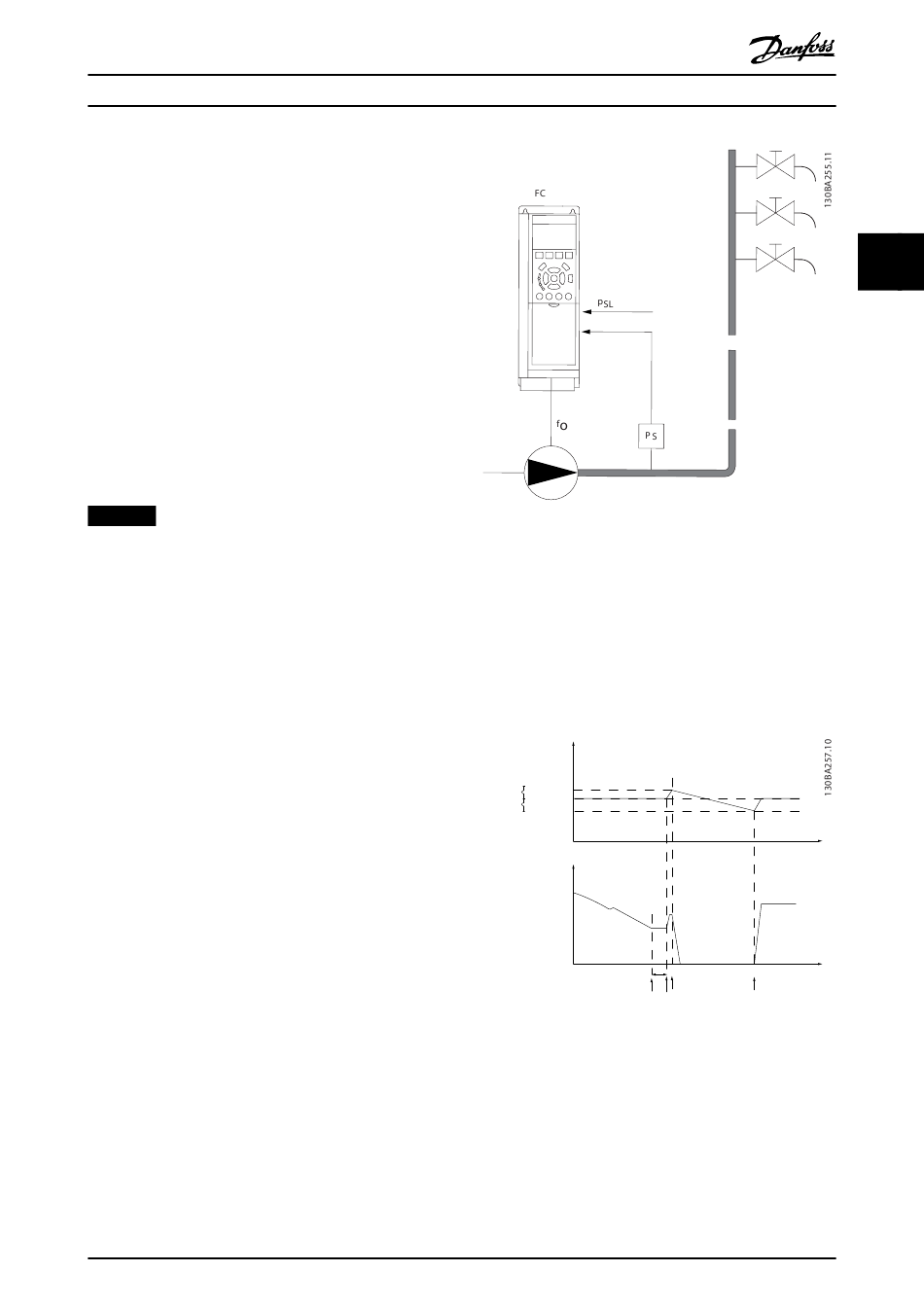

Illustration 3.50 Sleep Mode Function
1) Systems where the integrated PI controller is used for
controlling pressure or temperature, for example boost
systems with a pressure feedback signal applied to the
frequency converter from a pressure transducer. Set
parameter 1-00 Configuration Mode for [3] Closed Loop and
configure the PI controller configured for desired reference
and feedback signals.
Example: Boost system.
P 22-45
P 22-44
Illustration 3.51 Boost System
If no-flow is detected, the frequency converter increases
the setpoint for pressure to ensure a slight overpressure in
the system (boost to be set in parameter 22-45 Setpoint
Boost).
The feedback from the pressure transducer is monitored,
and when this pressure has dropped with a set percentage
below the normal setpoint for pressure (P
Danfoss A/S © 05/2016 All rights reserved.
p (Pressure)
P
P
System
Boost
P
Set
P
Wake
f (Frequency)
f
out
Ref
t
No/Low Flow Sleep mode
1
detected activated
Boost
activated
3
Time
Time
p = p
System Wake
), the motor
set
151
