Parameter Description
13-12 Comparator Value
Array [6]
Range: Function:
Size related [-100000 - Enter the trigger level for the
*
100000] variable that is monitored by this
comparator. This is an array
parameter containing comparator
values 0–5.
3.11.4 13-2* Timers
Use the result (true or false) from timers directly to define
an event (see parameter 13-51 SL Controller Event), or as
boolean input in a logic rule (see parameter 13-40 Logic
Rule Boolean 1, parameter 13-42 Logic Rule Boolean 2, or
parameter 13-44 Logic Rule Boolean 3). A timer is only false
when started by an action (for example [29] Start timer 1)
until the timer value entered in this parameter has elapsed.
Then it becomes true again.
All parameters in this parameter group are array
parameters with index 0–2. Select index 0 to program
timer 0, select index 1 to program timer 1, and so on.
13-20 SL Controller Timer
Array [8]
Range: Function:
Size related [ 0 - 0] Enter the value to define the duration of
*
the false output from the programmed
timer.
3.11.5 13-4* Logic Rules
Combine up to 3 boolean inputs (true/false inputs) from
timers, comparators, digital inputs, status bits, and events
using the logical operators AND, OR, and NOT. Select
boolean inputs for the calculation in parameter 13-40 Logic
Rule Boolean 1, parameter 13-42 Logic Rule Boolean 2, and
parameter 13-44 Logic Rule Boolean 3. Define the operators
used to logically combine the selected inputs in
parameter 13-41 Logic Rule Operator 1 and
parameter 13-43 Logic Rule Operator 2.
Par. 13-41
Logic Rule Operator 1
Par. 13-40
Logic Rule Boolean 1
Par. 13-42
Logic Rule Boolean 2 . . .
. . .
Par. 13-44
Logic Rule Boolean 3

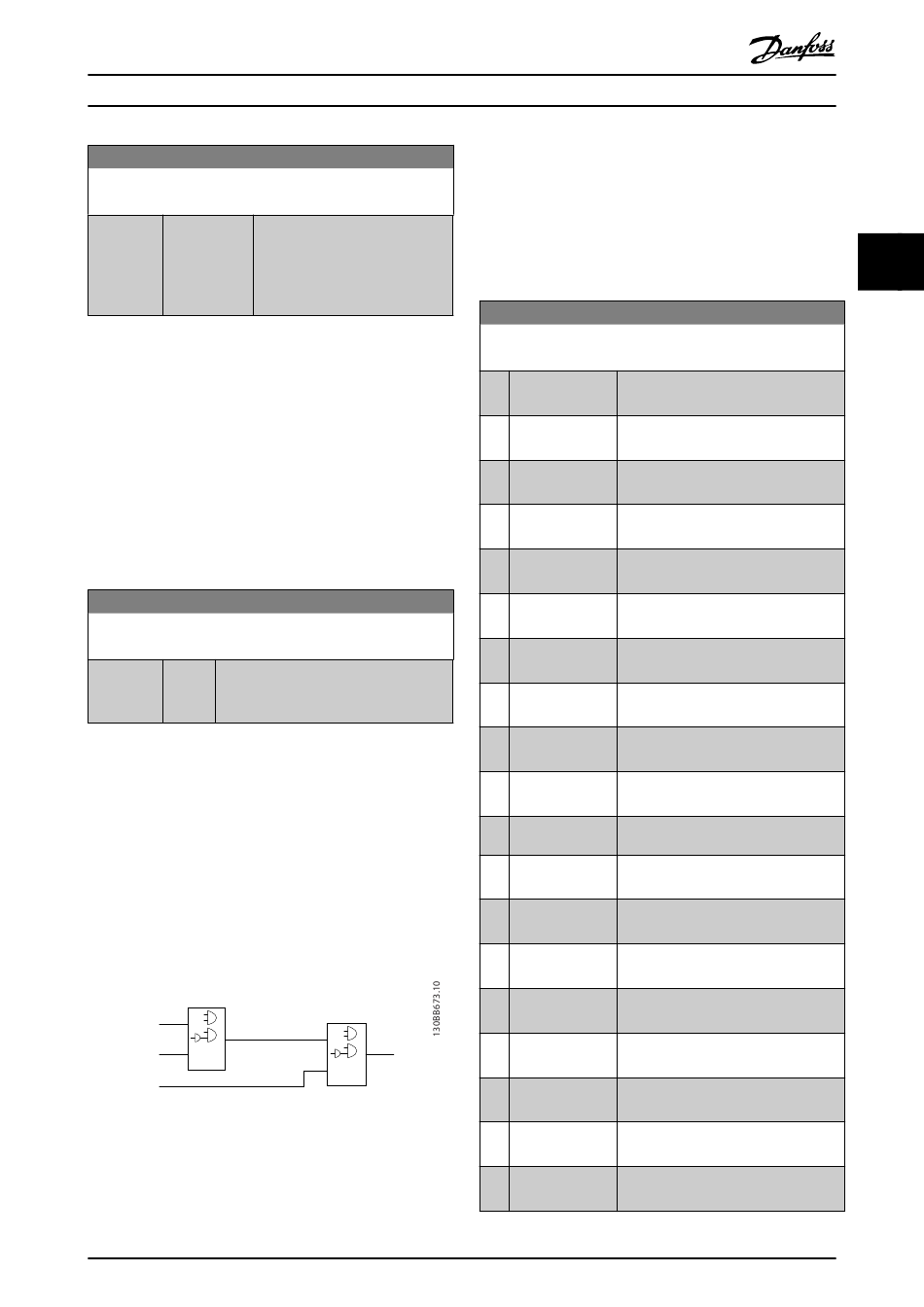

Illustration 3.36 Logic Rules
MG16H202
Programming Guide
Priority of calculation
The results of parameter 13-40 Logic Rule Boolean 1,
parameter 13-41 Logic Rule Operator 1, and
parameter 13-42 Logic Rule Boolean 2 are calculated first.
The outcome (true/false) of this calculation is combined
with the settings of parameter 13-43 Logic Rule Operator 2
and parameter 13-44 Logic Rule Boolean 3, yielding the final
result (true/false) of the logic rule.
13-40 Logic Rule Boolean 1
Array [6]
Option:
[0]
[1]
[2]
[3]
[4]
[5]
[6]
[7]
[8]
[9]
[10] Out of speed
[11] Below speed low
[12] Above speed high See parameter group 5-3* Digital Outputs
[13] Out of feedb.
Par. 13-43
[14] Below feedb. low
Logic Rule Operator 2
[15] Above feedb. high See parameter group 5-3* Digital Outputs
. . .
. . .
[16] Thermal warning
[17] Mains out of
[18] Reversing
Danfoss A/S © 05/2016 All rights reserved.
Function:
False Enters the fixed value of false in the
logic rule.
True Enters the fixed value true in the logic
rule.
Running See parameter group 5-3* Digital Outputs
for further description.
In range See parameter group 5-3* Digital Outputs
for further description.
On reference See parameter group 5-3* Digital Outputs
for further description.
Torque limit See parameter group 5-3* Digital Outputs
for further description.
Current Limit See parameter group 5-3* Digital Outputs
for further description.
Out of current See parameter group 5-3* Digital Outputs
range for further description.
Below I low See parameter group 5-3* Digital Outputs
for further description.
Above I high See parameter group 5-3* Digital Outputs
for further description.
range
See parameter group 5-3* Digital Outputs
for further description.
for further description.
See parameter group 5-3* Digital Outputs
range for further description.
See parameter group 5-3* Digital Outputs
for further description.
for further description.
See parameter group 5-3* Digital Outputs
for further description.
See parameter group 5-3* Digital Outputs
range for further description.
See parameter group 5-3* Digital Outputs
for further description.
