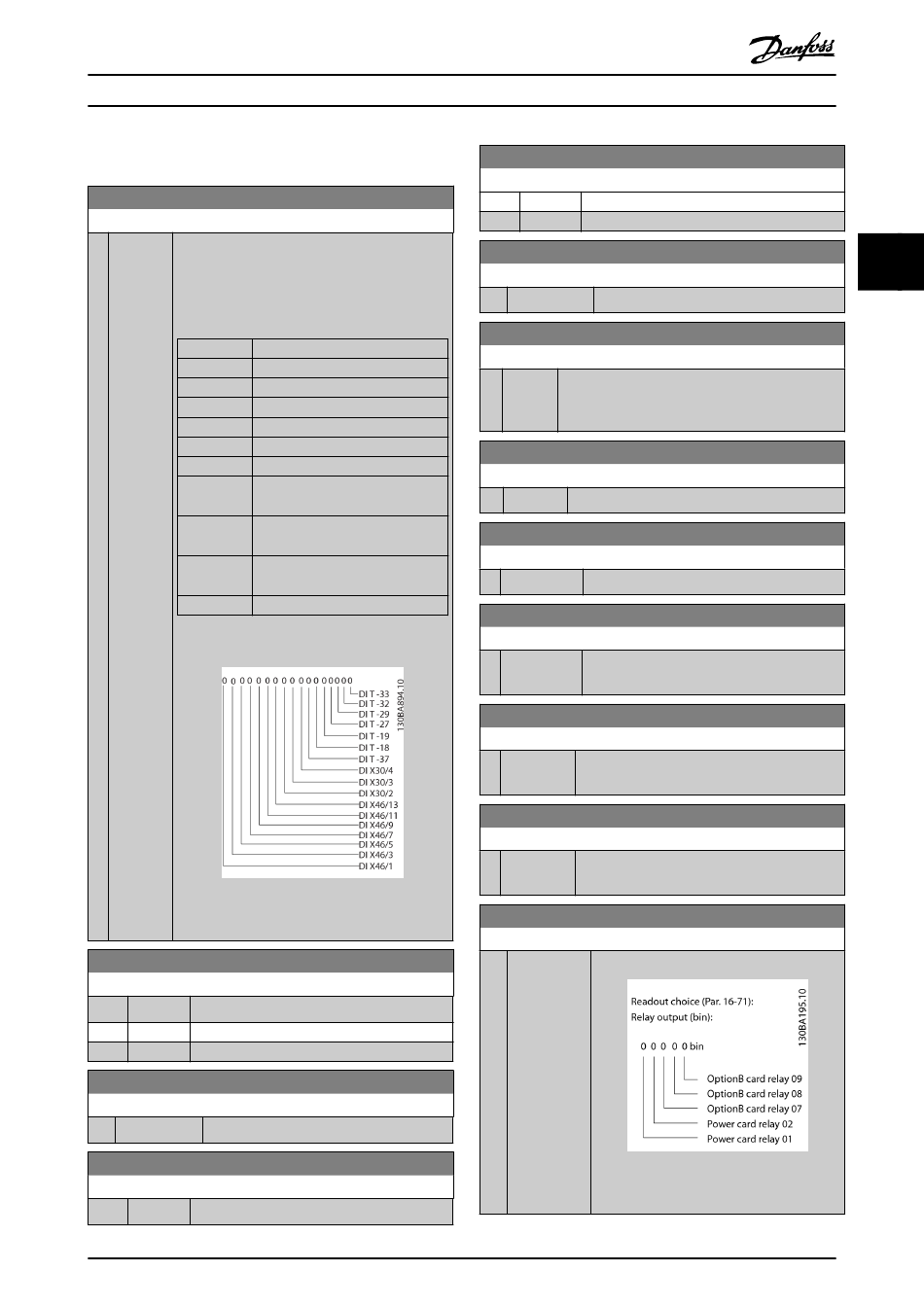

Parameter Description
3.14.5 16-6* Inputs and Outputs
16-60 Digital Input
Range: Function:
0 [ 0 - View the signal states from the active digital
*
65535] inputs. Example: Input 18 corresponds to bit
number 5, 0 = no signal, 1 = connected signal. Bit
6 works in the opposite way, on = 0, off = 1 (Safe
Torque Off input).
Bit 0 Digital input terminal 33.
Bit 1 Digital input terminal 32.
Bit 2 Digital input terminal 29.
Bit 3 Digital input terminal 27.
Bit 4 Digital input terminal 19.
Bit 5 Digital input terminal 18.
Bit 6 Digital input terminal 37.
Bit 7
Digital input VLT
I/O MCB 101 terminal X30/4.
Bit 8
Digital input VLT
I/O MCB 101 terminal X30/3.
Bit 9
Digital input VLT
I/O MCB 101 terminal X30/2.
Bit 10–63 Reserved for future terminals.
Table 3.16 Active Digital Inputs
Illustration 3.44 Relay Settings
16-61 Terminal 53 Switch Setting
Option: Function:
View the setting of input terminal 53.
[0] Current
*
[1] Voltage
16-62 Analog Input 53
Range: Function:
0 [-20 - 20] View the actual value at input 53.
*
16-63 Terminal 54 Switch Setting
Option: Function:
View the setting of input terminal 54.
MG16H202
Programming Guide
16-63 Terminal 54 Switch Setting
Option:
[0]
*
[1]
16-64 Analog Input 54
Range:
0
*
16-65 Analog Output 42 [mA]
Range:
0 [0 - 30] View the actual value at output 42 in mA. The
*
16-66 Digital Output [bin]
Range:
®
General Purpose
0 [0 - 15]
*
®
General Purpose
16-67 Pulse Input #29 [Hz]
Range:
®
General Purpose
0 [0 - 130000] View the actual frequency rate on terminal 29.
*
16-68 Pulse Input #33 [Hz]
Range:
0 [0 - 130000] View the actual value of the frequency applied
*
16-69 Pulse Output #27 [Hz]
Range:
0 [0 - 40000] View the actual value of impulses applied to
*
16-70 Pulse Output #29 [Hz]
Range:
0 [0 - 40000] View the actual value of pulses to terminal 29 in
*
16-71 Relay Output [bin]
Range:
0
*
Danfoss A/S © 05/2016 All rights reserved.
Function:
Current
Voltage
Function:
[-20 - 20] View the actual value at input 54.
Function:
value shown reflects the selection in
parameter 6-50 Terminal 42 Output.
Function:
View the binary value of all digital outputs.
Function:
Function:
at terminal 33 as an impulse input.
Function:
terminal 27 in digital output mode.
Function:
digital output mode.
Function:
[0 - 511] View the settings of all relays.
Illustration 3.45 Relay Settings
3 3
