2.1.15 Read-out and Programming of
Indexed Parameters
2 2
Parameters are indexed when placed in a rolling stack.
15-30 Fault Log: Error Code to 15-32 Alarm Log: Time contain
a fault log which can be read out. Choose a parameter,
press [OK], and use [
Use 3-10 Preset Reference as another example:
Choose the parameter, press [OK], and use [
through the indexed values. To change the parameter
value, select the indexed value and press [OK]. Change the
value by pressing [
setting. Press [Cancel] to abort. Press [Back] to leave the
parameter.
The following instructions are valid for the Numerical LCP
(LCP 101).
The control panel is divided into four functional groups:
1. Numerical display.
2. Menu keys and indicator lights - changing
parameters and switching between display
functions.
3. Navigation keys and indicator lights (LEDs).
4. Operation keys and indicator lights (LEDs).
Display line: Status messages displaying icons and numeric
value.
Indicator lights (LEDs)
•
Green LED/On: Indicates if control section is on.
•
Yellow LED/Wrn.: Indicates a warning.
•
Flashing red LED/Alarm: Indicates an alarm.
LCP keys
[Menu] Select one of the following modes:
•
Status
•
Quick Setup
•
Main Menu
20
®
VLT
▲ ▼
] [ ] to scroll through the value log.
▲ ▼
] [
▲ ▼
] [ ]. Press [OK] to accept the new
MG33MG02 - VLT
AutomationDrive Programming Guide
1
] to scroll
2
Menu
On
3
Warn.
Alarm
Hand
4
on

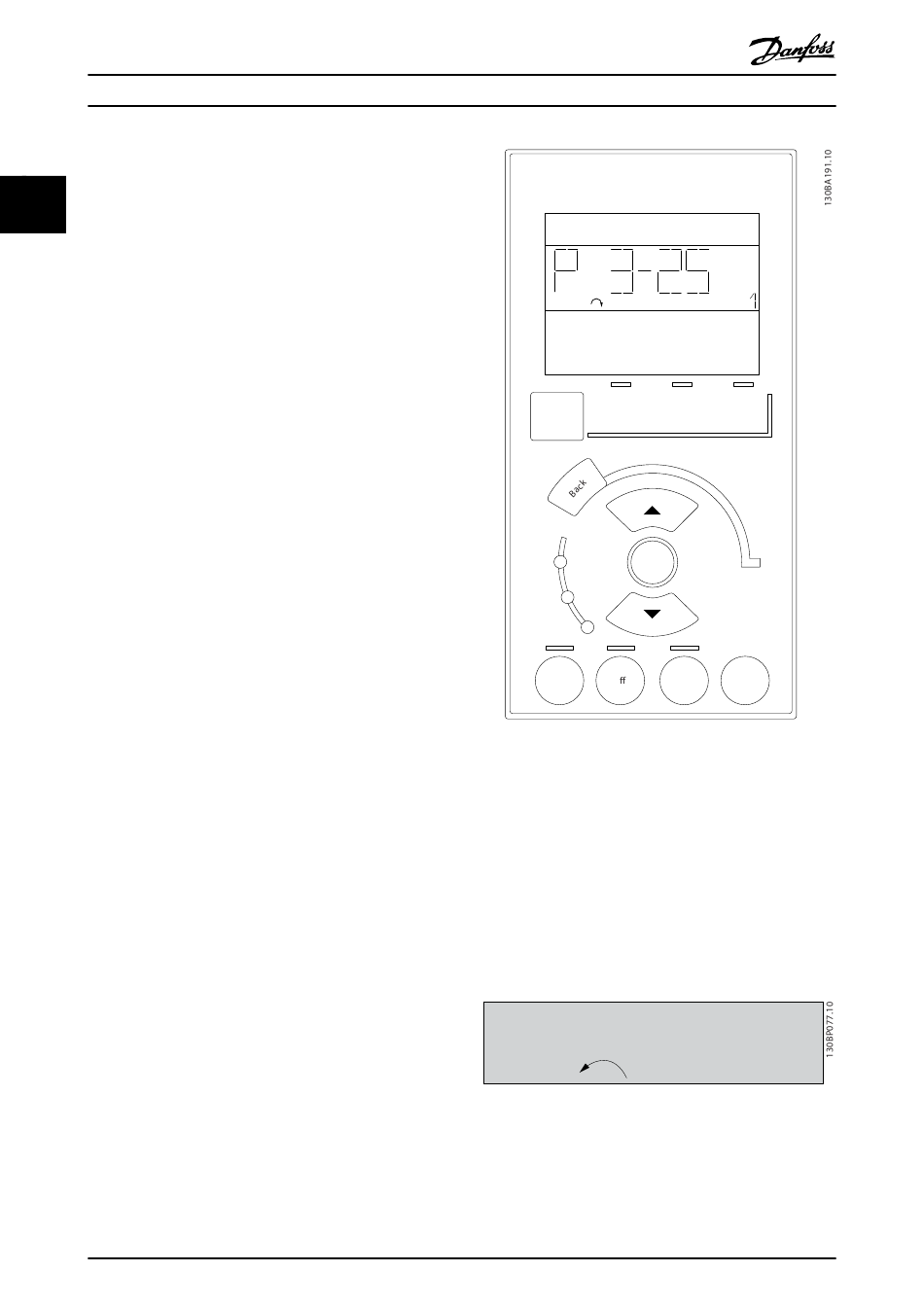

Illustration 2.21 LCP Keys
Status Mode
Displays the status of the frequency converter or the
motor.
If an alarm occurs the NLCP automatically switches to
status mode.
A number of alarms can be displayed.
NOTE
Parameter copy is not possible with LCP 101 Numerical
Local Control Panel.
Illustration 2.22 Status Mode
®
