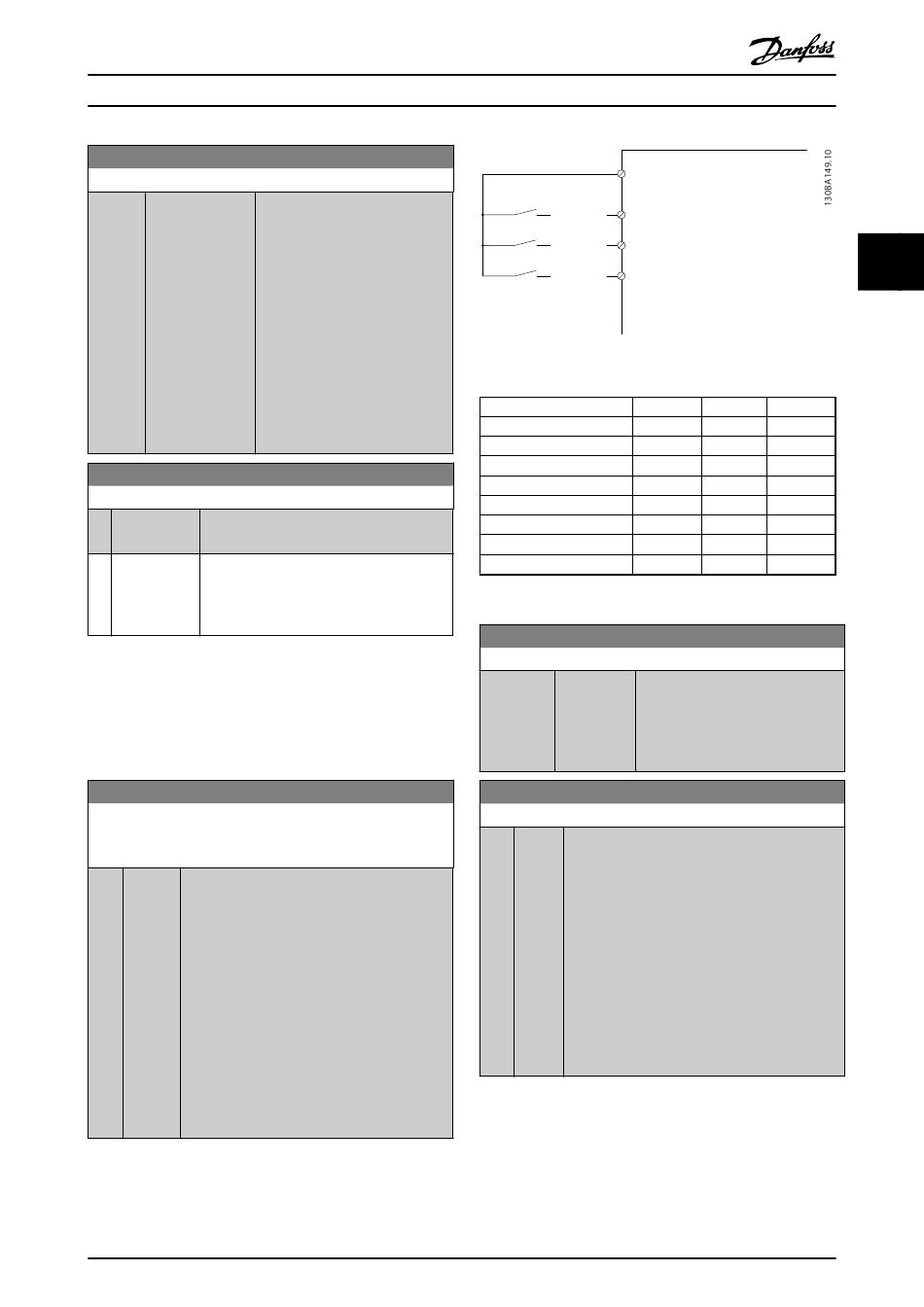

Parameter Descriptions
3-03 Maximum Reference
Range:
Size [ par. 3-02 - Enter the Maximum Reference. The
related 999999.999 Maximum Reference is the highest
*
ReferenceFeed- value obtainable by summing all
backUnit] references.
3-04 Reference Function
Option: Function:
[0] Sum Sums both external and preset reference
sources.
[1] External/Preset Use either the preset or the external
reference source.
Shift between external and preset via a
command or a digital input.
3.5.2 3-1* References
Select the preset reference(s). Select Preset ref. bit 0/1/2
[16], [17] or [18] for the corresponding digital inputs in
parameter group 5-1* Digital Inputs.
3-10 Preset Reference
Array [8]
Range: 0-7
Range: Function:
0 % [-100 - Enter up to eight different preset references
*
100 %] (0-7) in this parameter, using array
programming. The preset reference is stated as a
percentage of the value Ref
Reference) If a Ref
(3-02 Minimum Reference) is programmed, the
preset reference is calculated as a percentage of
the full reference range, i.e. on the basis of the
difference between Ref
Afterwards, the value is added to Ref
using preset references, select Preset ref. bit
0/1/2 [16], [17] or [18] for the corresponding
digital inputs in parameter group 5-1* Digital
Inputs.
®
VLT AutomationDrive Programming Guide
Function:
The Maximum Reference unit
matches:
•
The choice of configu-
ration in
1-00 Configuration Mode:
for [1] Speed closed loop,
RPM; for [2] Torque, Nm.
•
The unit selected in
3-00 Reference Range.
(3-03 Maximum
MAX
different from 0
MIN
and Ref .
MAX MIN
. When
MIN
®
MG33MG02 - VLT is a registered Danfoss trademark
12 (+24V)
Preset 76543210
29
10101010 [P 5-13=Preset ref. bit 0]
11001100 32 [P 5-14=Preset ref. bit 1]
33
11110000 [P 5-15=Preset ref. bit 2]
Illustration 3.21 Preset Reference
Preset ref. bit
Preset ref. 0
Preset ref. 1
Preset ref. 2
Preset ref. 3
Preset ref. 4
Preset ref. 5
Preset ref. 6
Preset ref. 7
Table 3.11 Preset Ref. Bit
3-11 Jog Speed [Hz]
Range: Function:
Size related [ 0 - par. The jog speed is a fixed output
*
4-14 Hz] speed at which the frequency
converter is running when the jog
function is activated.
See also 3-80 Jog Ramp Time.
3-12 Catch up/slow Down Value
Range: Function:
0 % [0 - Enter a percentage (relative) value to be either
*
100 %] added to or deducted from the actual reference
for Catch up or Slow down respectively. If Catch
up is selected via one of the digital inputs
(5-10 Terminal 18 Digital Input to 5-15 Terminal 33
Digital Input), the percentage (relative) value is
added to the total reference. If Slow down is
selected via one of the digital inputs
(5-10 Terminal 18 Digital Input to 5-15 Terminal 33
Digital Input), the percentage (relative) value is
deducted from the total reference. Obtain
extended functionality with the DigiPot function.
See parameter group 3-9* Digital Potentiometer.
2 1 0
0 0 0
0 0 1
0 1 0
0 1 1
1 0 0
1 0 1
1 1 0
1 1 1
