2.1.14 Infinitely Variable Change of Numeric
Data Value

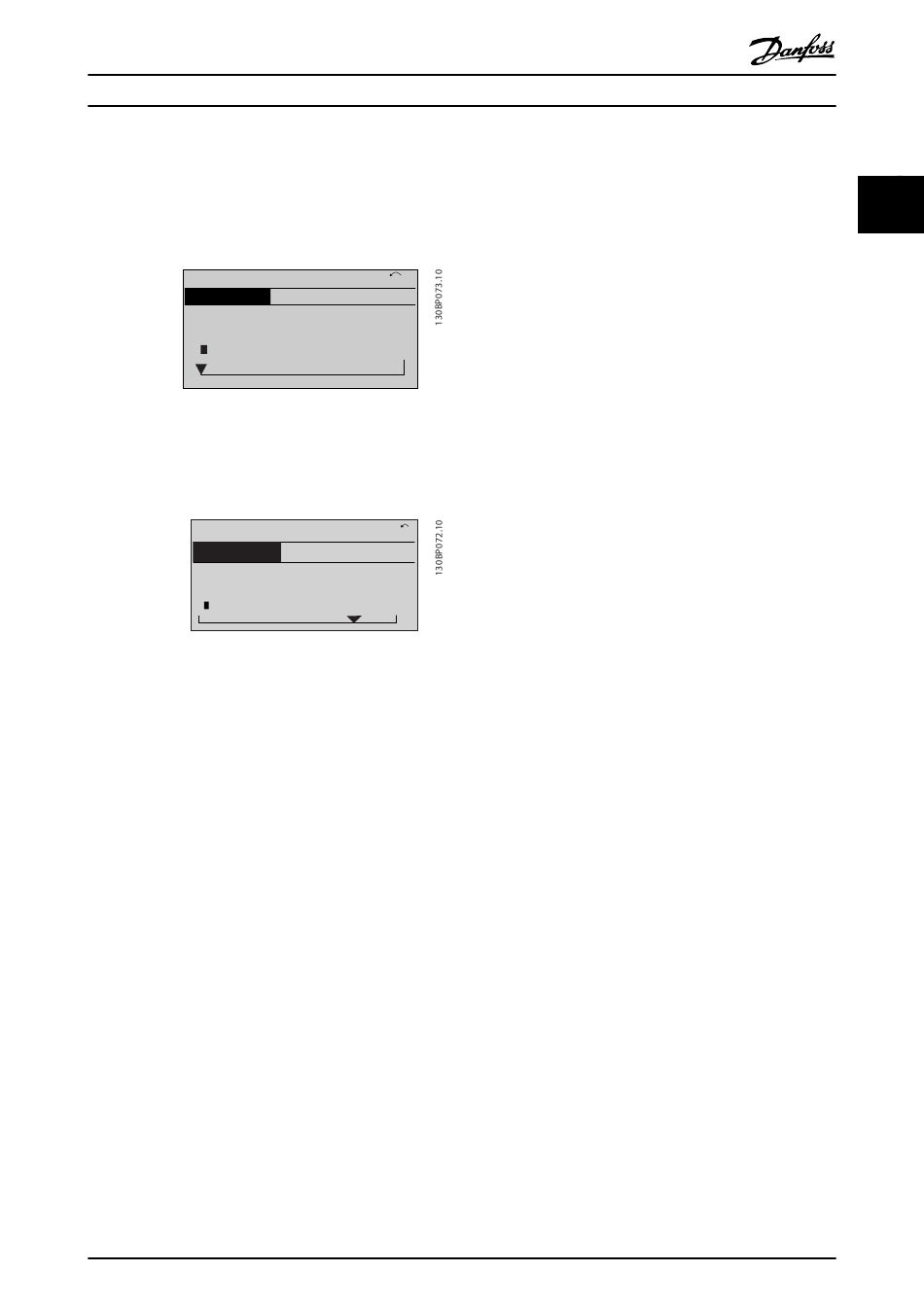

If the chosen parameter represents a numeric data value,
◀ ▶
select a digit with the [ ] [ ] navigation keys.
635 RPM
Start Adjustments
1 - 71 Start Delay
00.0s
Change the selected digit infinitely variably with the [
navigation keys.
The chosen digit is indicated by the cursor. Place the cursor
on the digit you want to save and press [OK].
957RPM
Start Adjustments
1-71 High starting torque time
0. s 4
2.1.15 Value, Step-by-Step
Certain parameters can be changed step by step or infinitely
varying. This applies to 1-20 Motor Power [kW], 1-22 Motor
Voltage and 1-23 Motor Frequency.
The parameters are changed both as a group of numeric
data values and as numeric data values infinitely varying.
2.1.16 Read-out and Programming of
Indexed Parameters
Parameters are indexed when placed in a rolling stack.
15-30 Fault Log: Error Code to 15-32 Alarm Log: Time contain a
fault log which can be read out. Choose a parameter, press
▲ ▼
[OK], and use the [ ] [ ] navigation keys to scroll through
the value log.
Use 3-10 Preset Reference as another example:
Choose the parameter, press [OK], and use the [
navigation keys to scroll through the indexed values. To
change the parameter value, select the indexed value and
press [OK]. Change the value by using the [
[OK] to accept the new setting. Press [CANCEL] to abort.
Press [Back] to leave the parameter.
FC 300 Programming Guide
0.44 A 1 (1)
1- 7*
▲ ▼
] [ ]
11.58A 1 (1)
1-7*
▲ ▼
] [ ]
▲ ▼
] [ ] keys. Press
®
MG.33.MB.02 - VLT is a registered Danfoss trademark
2.1.17 How to Programme on the Numerical
Local Control Panel
The following instructions are valid for the Numerical LCP
(LCP 101).
The control panel is divided into four functional groups:
1. Numerical display.
2. Menu keys and indicator lights - changing
parameters and switching between display
functions.
3. Navigation keys and indicator lights (LEDs).
4. Operation keys and indicator lights (LEDs).
Display line: Status messages displaying icons and numeric
value.
Indicator lights (LEDs)
•
Green LED/On: Indicates if control section is on.
•
Yellow LED/Wrn.: Indicates a warning.
•
Flashing red LED/Alarm: Indicates an alarm.
LCP keys
[Menu] Select one of the following modes:
•
Status
•
Quick Setup
•
Main Menu
2 2
