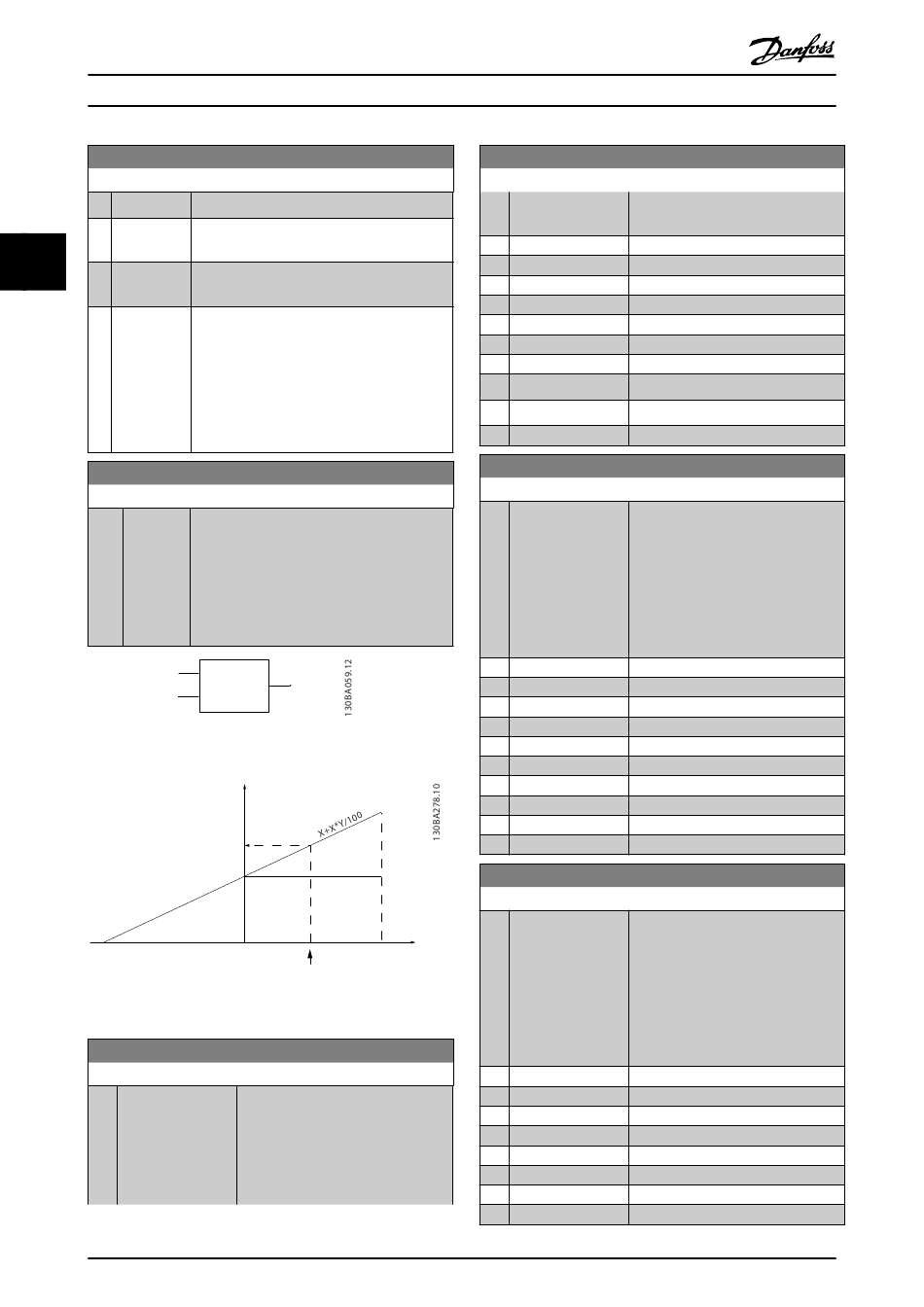

Parameter Descriptions
3-13 Reference Site
Option:
[0] Linked to
Hand / Auto
3 3
[1] Remote
[2] Local
3-14 Preset Relative Reference
Range:
0 % [-100 -
*
100 %]
Illustration 3.22 Preset Relative Reference
-100
Illustration 3.23 Actual Reference
3-15 Reference Resource 1
Option:
64
VLT
Function:
Select which reference site to activate.
Use local reference when in Hand mode; or
remote reference when in Auto mode.
Use remote reference in both Hand mode and
Auto mode.
Use local reference in both Hand mode and
Auto mode.
NOTE
When set to [2] Local, the frequency
converter will start with this setting again
following a 'power down'.
Function:
The actual reference, X, is increased or
decreased with the percentage Y, set in
3-14 Preset Relative Reference. This results in the
actual reference Z. Actual reference (X) is the
sum of the inputs selected in 3-15 Reference 1
Source, 3-16 Reference 2 Source, 3-17 Reference
3 Source and 8-02 Control Source.
Y
Resulting
Relative Z
actual
X Z=X+X*Y/100
reference
Z
X
0
P 3-14
Function:
Select the reference input to be used
for the first reference signal.
3-15 Reference Resource 1,
3-16 Reference Resource 2 and
3-17 Reference Resource 3 define up to
three different reference signals. The
MG33MG02 - VLT
®
AutomationDrive Programming Guide
3-15 Reference Resource 1
Option:
[0] No function
[1] Analog Input 53
[2] Analog Input 54
[7] Frequency input 29
[8] Frequency input 33
[11] Local bus reference
[20] Digital pot.meter
[21] Analog input X30-11 (General Purpose I/O Option Module)
[22] Analog input X30-12 (General Purpose I/O Option Module)
[29] Analog Input X48/2
3-16 Reference Resource 2
Option:
[0] No function
[1] Analog Input 53
[2] Analog Input 54
[7] Frequency input 29
[8] Frequency input 33
[11] Local bus reference
[20] Digital pot.meter
[21] Analog input X30-11
[22] Analog input X30-12
[29] Analog Input X48/2
3-17 Reference Resource 3
Option:
Y
100 %
[0] No function
[1] Analog Input 53
[2] Analog Input 54
[7] Frequency input 29
[8] Frequency input 33
[11] Local bus reference
[20] Digital pot.meter
[21] Analog input X30-11
®
is a registered Danfoss trademark
Function:
sum of these reference signals defines
the actual reference.
Function:
Select the reference input to be used
for the second reference signal.
3-15 Reference Resource 1,
3-16 Reference Resource 2 and
3-17 Reference Resource 3 define up to
three different reference signals. The
sum of these reference signals defines
the actual reference.
Function:
Select the reference input to be used
for the third reference signal.
3-15 Reference Resource 1,
3-16 Reference Resource 2 and
3-17 Reference Resource 3 define up to
three different reference signals. The
sum of these reference signals defines
the actual reference.
