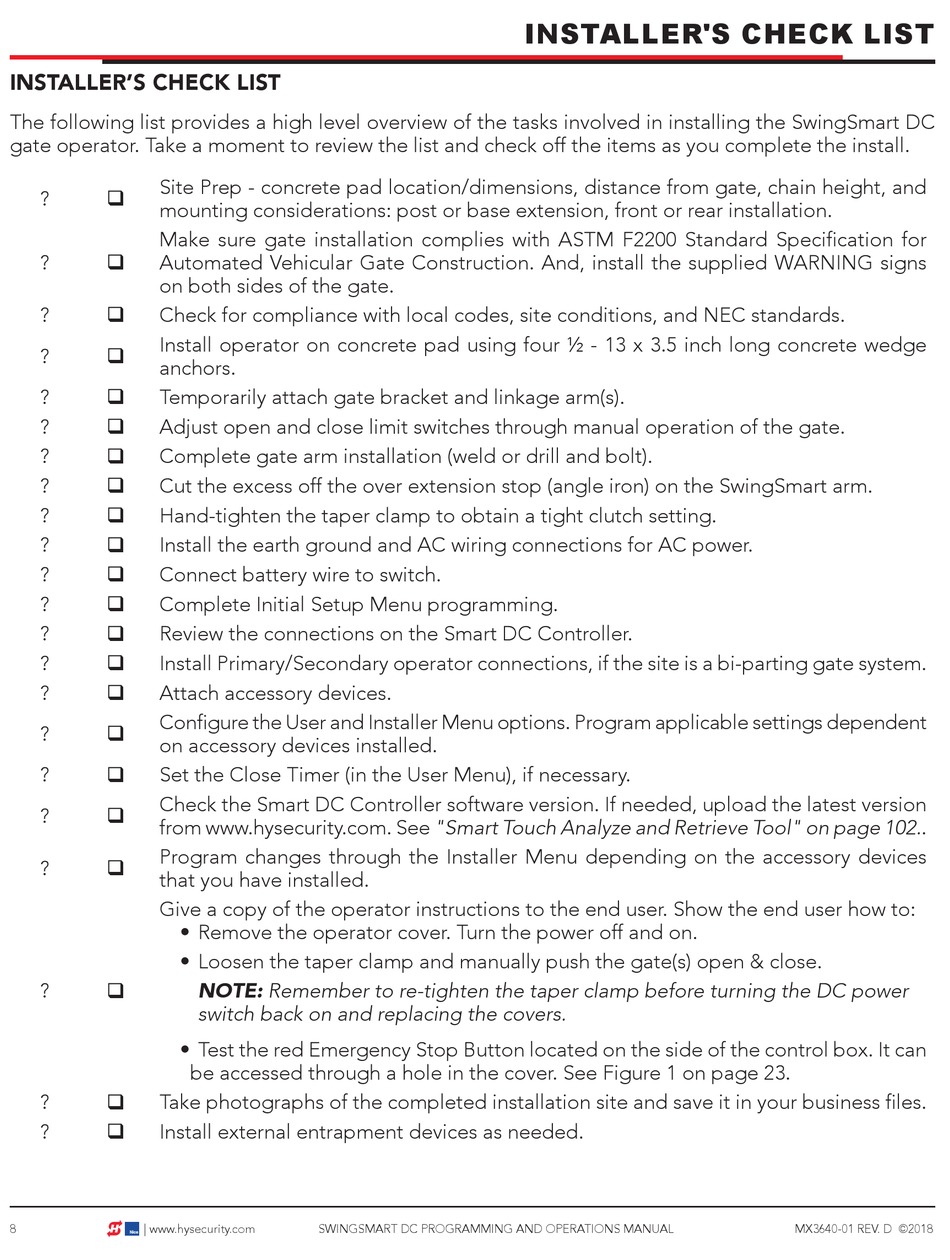

INSTALLER'S CHECK LIST

The following list provides a high level overview of the tasks involved in installing the SwingSmart DC
gate operator. Take a moment to review the list and check off the items as you complete the install.
Site Prep - concrete pad location/dimensions, distance from gate, chain height, and
?

mounting considerations: post or base extension, front or rear installation.
Make sure gate installation complies with ASTM F2200 Standard Specification for
? Automated Vehicular Gate Construction. And, install the supplied WARNING signs

on both sides of the gate.
? Check for compliance with local codes, site conditions, and NEC standards.

Install operator on concrete pad using four ½ - 13 x 3.5 inch long concrete wedge
?

anchors.
? Temporarily attach gate bracket and linkage arm(s).

? Adjust open and close limit switches through manual operation of the gate.

? Complete gate arm installation (weld or drill and bolt).

? Cut the excess off the over extension stop (angle iron) on the SwingSmart arm.

? Hand-tighten the taper clamp to obtain a tight clutch setting.

? Install the earth ground and AC wiring connections for AC power.

? Connect battery wire to switch.

? Complete Initial Setup Menu programming.

? Review the connections on the Smart DC Controller.

? Install Primary/Secondary operator connections, if the site is a bi-parting gate system.

? Attach accessory devices.

Configure the User and Installer Menu options. Program applicable settings dependent
?

on accessory devices installed.
? Set the Close Timer (in the User Menu), if necessary.

Check the Smart DC Controller software version. If needed, upload the latest version
?

from www.hysecurity.com. See "Smart Touch Analyze and Retrieve Tool" on page 102..
Program changes through the Installer Menu depending on the accessory devices
?

that you have installed.
Give a copy of the operator instructions to the end user. Show the end user how to:
• Remove the operator cover. Turn the power off and on.
• Loosen the taper clamp and manually push the gate(s) open & close.
? 
• Test the red Emergency Stop Button located on the side of the control box. It can
? Take photographs of the completed installation site and save it in your business files.

? Install external entrapment devices as needed.

8 | www.hysecurity.com
NOTE: Remember to re-tighten the taper clamp before turning the DC power
switch back on and replacing the covers.
be accessed through a hole in the cover. See Figure 1 on page 23.
