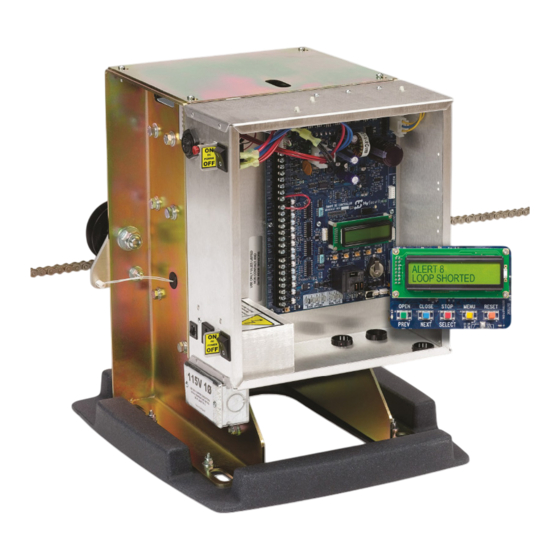

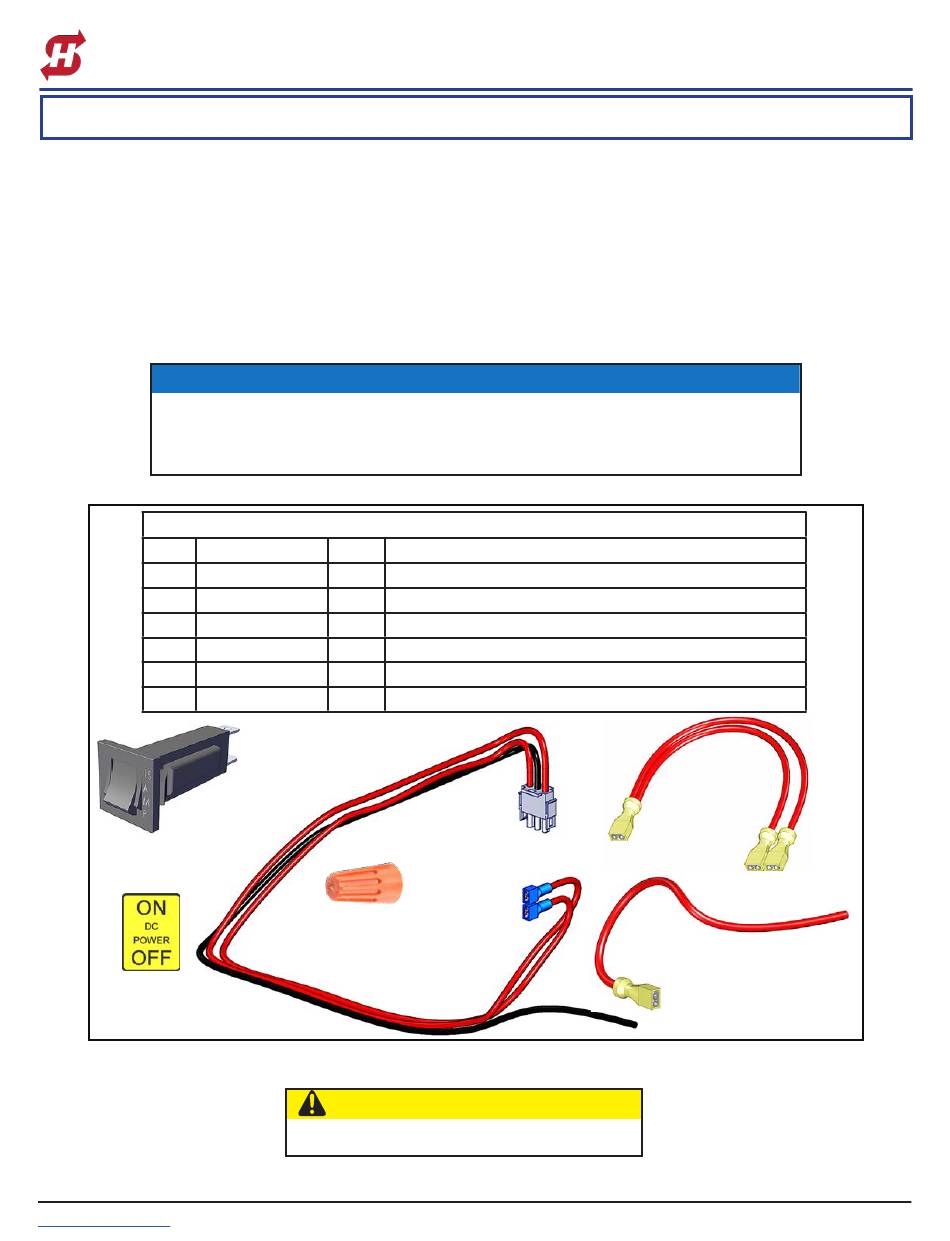

HySecurity SlideSmart DC Technical Instructions

Converting SlideSmart DC from AC Power to Solar Power
These instructions are provided to enable converting a factory configured AC powered SlideSmart DC Operator
to one powered by a solar panel using the parts in the table below. The conversion is done in four major steps:
y Remove AC power components and transformer harness
y Install solar power components and harnesses
y Wire the solar panel into the power section and change the AC Power Switch label to DC label.
y Change the operator charging type to Solar, using ether the SmartTouch controls or the START software.
Kit contents are below, instructions start on next page, and the wiring schematic is on page 8.
NOTICE
The conversion of SlideSmart DC models to solar power is not covered under the
Nice|HySecurity UL 325 Listing. Although the design conforms to the standards
of UL 325, it has not been examined and certified by an independent lab.
Item
Part Number
1
2
3
4
5
6
1)
15A Circuit
Breaker
MX001760
6)
DC Power Label
(MX001832)
support.hysecurity.com
Technical Instructions
Slidesmart DC: AC to Solar Conversion Kit
QTY
MX001760 1 Circuit Breaker, 15A
MX001892 1 Wire Harness, Solar
MX001891 1 Wire Harness, 2 to 1, Red
MX001890 1 Wire, Red, 12 AWG, Female Spade on Stripped End, 11"
generic 2 Wire Nut
MX001832 1 Label, DC Power (2 labels per part)
5)
Wire Nut (x2)
CAUTION
Read all warnings, notes, and instructions.
Instructions: Converting SlideSmartDC from AC to Solar Power
Description
2)
Solar Harness
MX001892
3)
2-to-1 Harness
MX001891
4)
11" Wire/Spade
MX001890
D1131 Rev. B ©2022
1
