11.9.3 Starting Up

Startup from Explorer
Double-click on the winfog17.exe icon or select winfog17 from the start menu.
If the device information definition file (S1C17xxx.ini) was loaded into your computer during
previous execution, winfog17 automatically reads the same file as it starts.
Alternatively, drag the device information definition file icon into the winfog17.exe icon to start
winfog17, which will then read the device information definition file.
Startup from iDE
To start WinFog17, select [Start WinFog17] from the IDE [GNU17 Actions] menu or click the [Start WinFog17]
toolbar button.

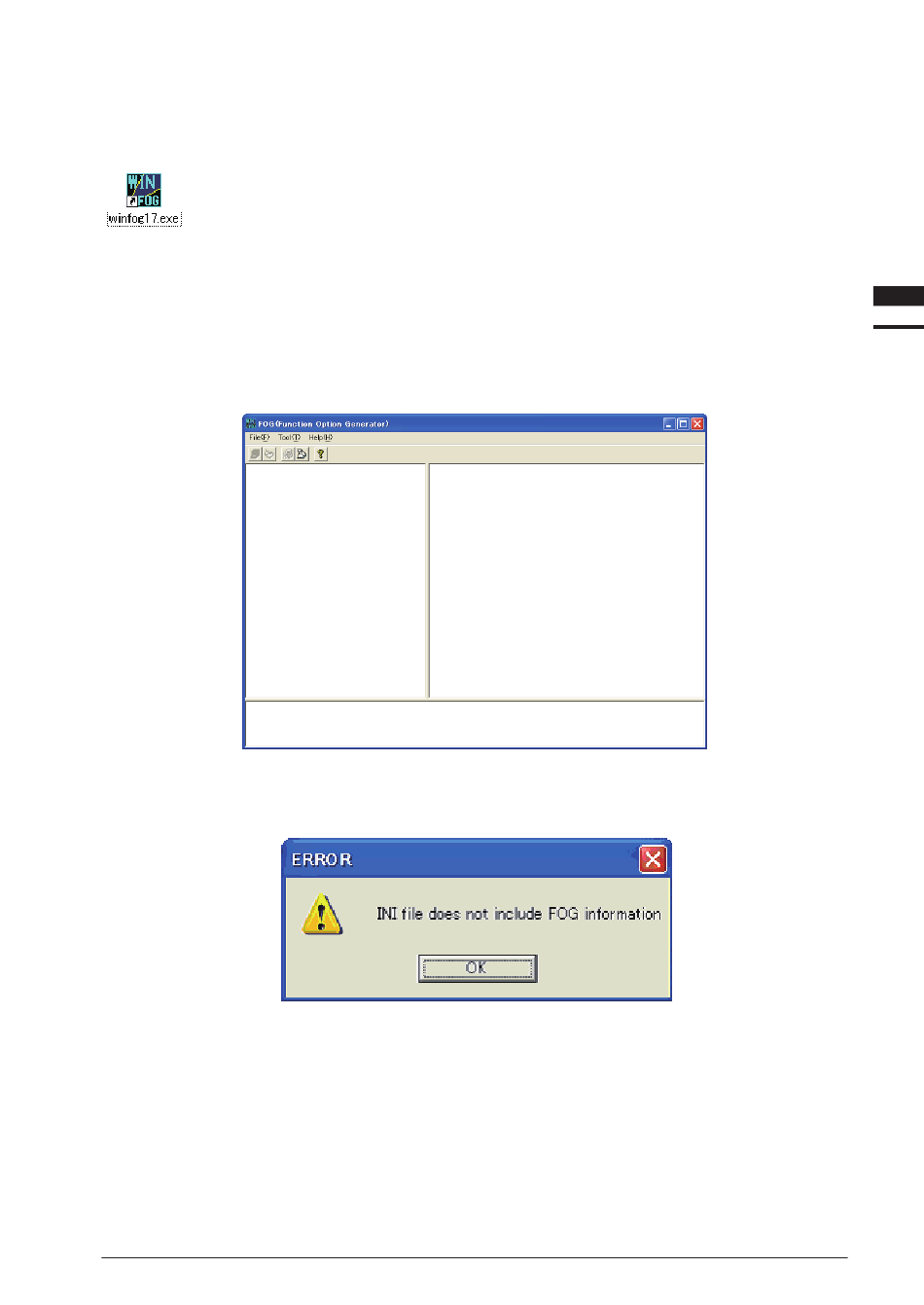

When winfog17 starts, it displays the [FOG] window. The following diagrams show a [FOG] window when the
device information definition file has been loaded and when it has not.
If the model lacks mask options, the [INI file does not include FOG information] dialog box will appear when you
click the [Start Winfog17] button.
In this case, there is no need to create a function options file. Close the dialog box and exit Winfog17.
S5U1C17001C ManUal
(C COMPilEr PaCkagE fOr S1C17 faMily) (Ver. 1.5.0)
[FOG] Window (initial screen)
EPSOn
11 OTHEr TOOlS
11
Tools
11-33
