11 OTHEr TOOlS

11.10.5 Operation Procedure

The following shows the basic operation procedure.
(1) loading the device information definition file
First, select a device information definition file (S1C17xxx.ini) and load it.
Select [Device INI Select] from the [Tool] menu or click the [Device INI Select] button.
[Device INI Select] button

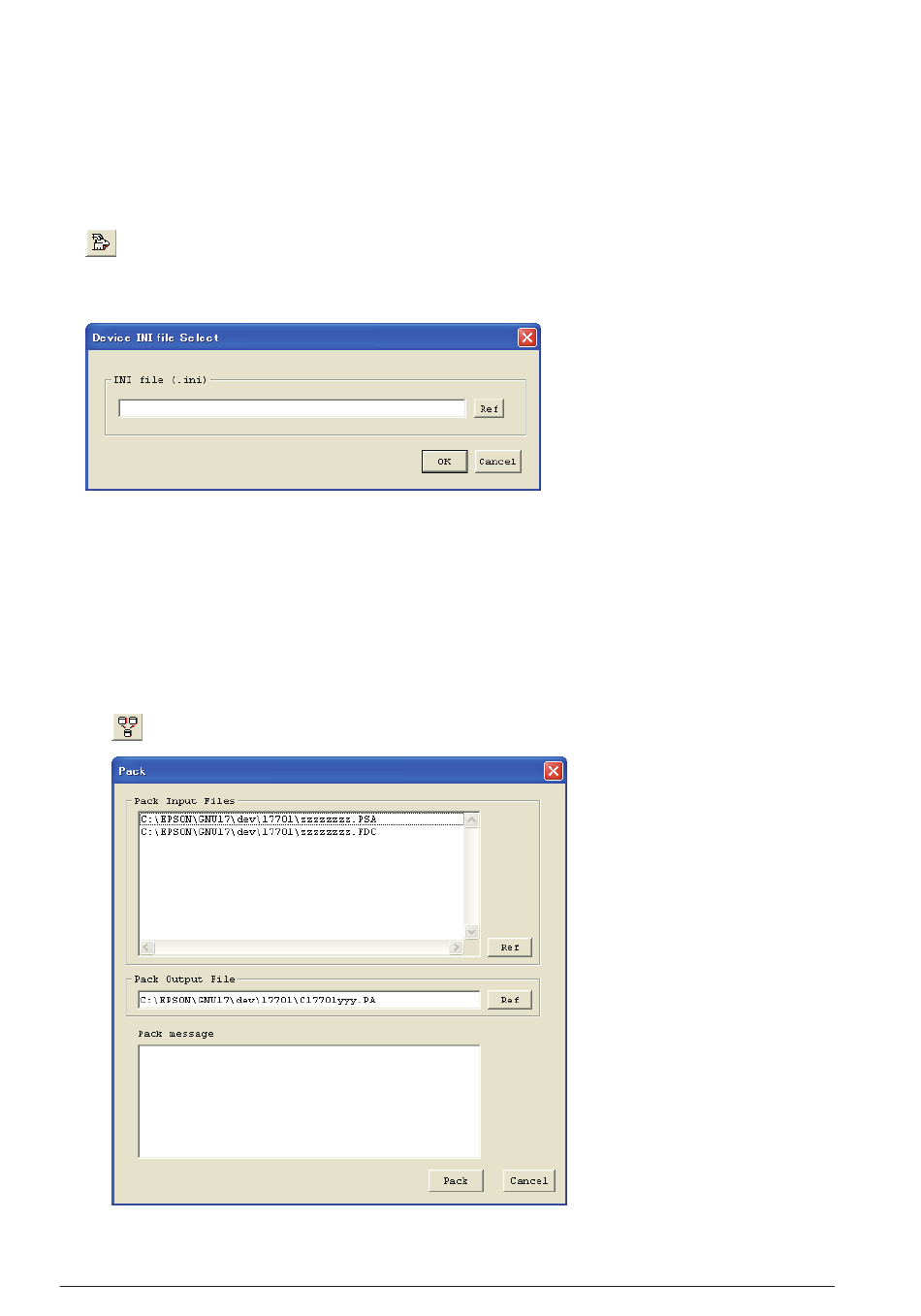

The dialog box shown below appears. Enter a file name including the path in the text box or select a file by
clicking the [Ref] button.
Click [OK], and the file is loaded. If the specified file exists and there is no problem with its contents, the set-
up items in winmdc17 are initialized with the loaded device information.
To stop loading the file, click [Cancel].
Once a device information definition file is selected, the same file is automatically loaded the next time you
start winmdc17.
(2) Packing
1. Select [Pack] from the [Tool] menu or click the [Pack] button on the tool bar to bring up the [Pack] dialog
box.
[Pack] button
