10 Debugger
This chapter describes how to use the debugger gdb.

10.1 features

The debugger gdb is software used to debug a program after loading an elf-format object file created by the linker.
This debugger has the following features and functions:
• Can reference various types of data at one time, thanks to a multi-window facility.
• In addition to debugging programs using the ICD Mini (S5U1C17001H) or ICD board, the debugger incorporates
a software simulator function for debugging programs on a personal computer.
• Capable of C source and assembly source level debugging.
• Supports C source and assembler level single-stepping functions, in addition to continuous program execution.
• Supports hardware and software PC break functions.
• Can measure program execution time by duration of time or number of cycles.
• Supports a trace function that allows saving of the traced data (in simulator mode).
• Can automatically execute commands using a command file.
• Supports a simulated I/O function that allows Stdin/Stdout evaluation in the debugger.
• Supports the embedded system simulator that allows evaluation of port input/output, SVD and LCD display in
the debugger.
• Supports the flash writer function of the ICD Mini (S5U1C17001H).
• Allows storing and re-registering the symbols registered in the Watch Window.

10.2 input/Output files

Reset definition User definition button
command file
reset.gdb
INI file Stdin file
gdbtk.ini file.xxx
ICD
break.gdb file.log
Breakpoint Stdout file
storage file
10.2.1 input files
Parameter file
File format: Text file
File name: <filename>.par
Description: This file has recorded in it the contents needed to set the memory map information for the debugger.
The [Project > Properties > GNU17 Parameter Settings] dialog box of the IDE displayed by
selecting Project and then Properties may be used to create parameter files. For details about
parameter files, see Section 10.9, "Parameter Files".
S5U1C17001C ManUal
(C COMPilEr PaCkagE fOr S1C17 faMily) (Ver. 1.5.0)
from Linker
Save break button
command file command file
userdefine.gdb savebreak.gdb
Command
Source file(s)
file elf object file
file.c
file.cmd file.elf
file.s
Debugger
gdb
file.log file.log
Command Trace
Storage file for symbols
log file log file
registered in Watch Window

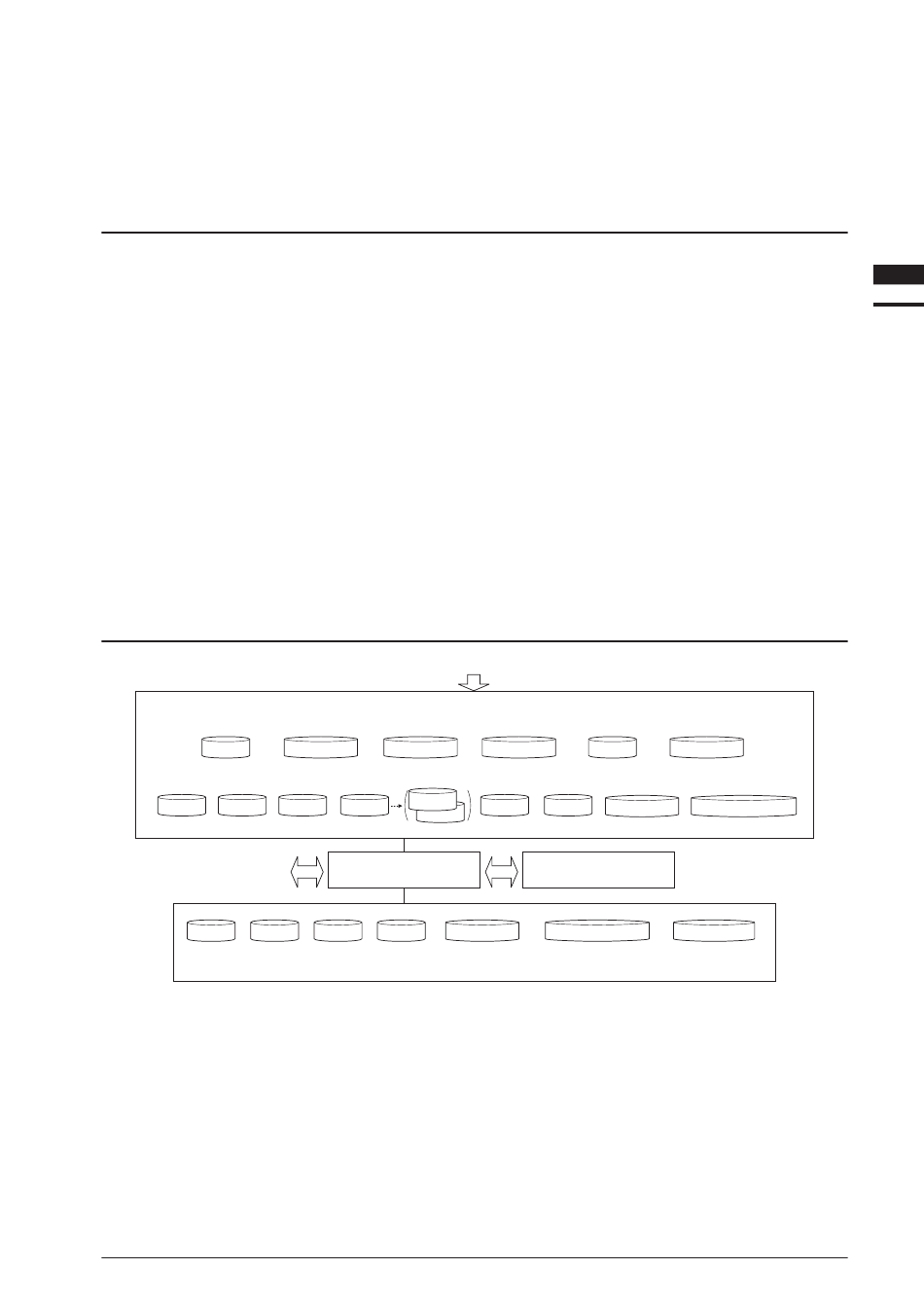

Figure 10.2.1 Flowchart
EPSOn
Load break button Breakpoint
command file storage file
loadbreak.gdb break.gdb
Motorola S3 Profile/coverage
Parameter file HEX file data file
file.par file.sa
c17_profile.prf
Embedded system simulator
ES-Sim17
watch.gdb c17_profile_path.gdb
Storage location file for
profile/coverage data files
10 DEBUggEr
Storage file for symbols
registered in Watch Window
watch.gdb
Profile/coverage
data path file
c17_profile_path.gdb
c17_profile.prf
Profile/coverage data file
