Epson S5U1C17001C Manual page 91

Step 6: Click the [Finish] button.
This imports the selected directory into the IDE as a project.
Checking the target CPU (parameter file)
Make sure "S1C17701" is selected as the target processor of the sample project to be simulated by ES-Sim17.

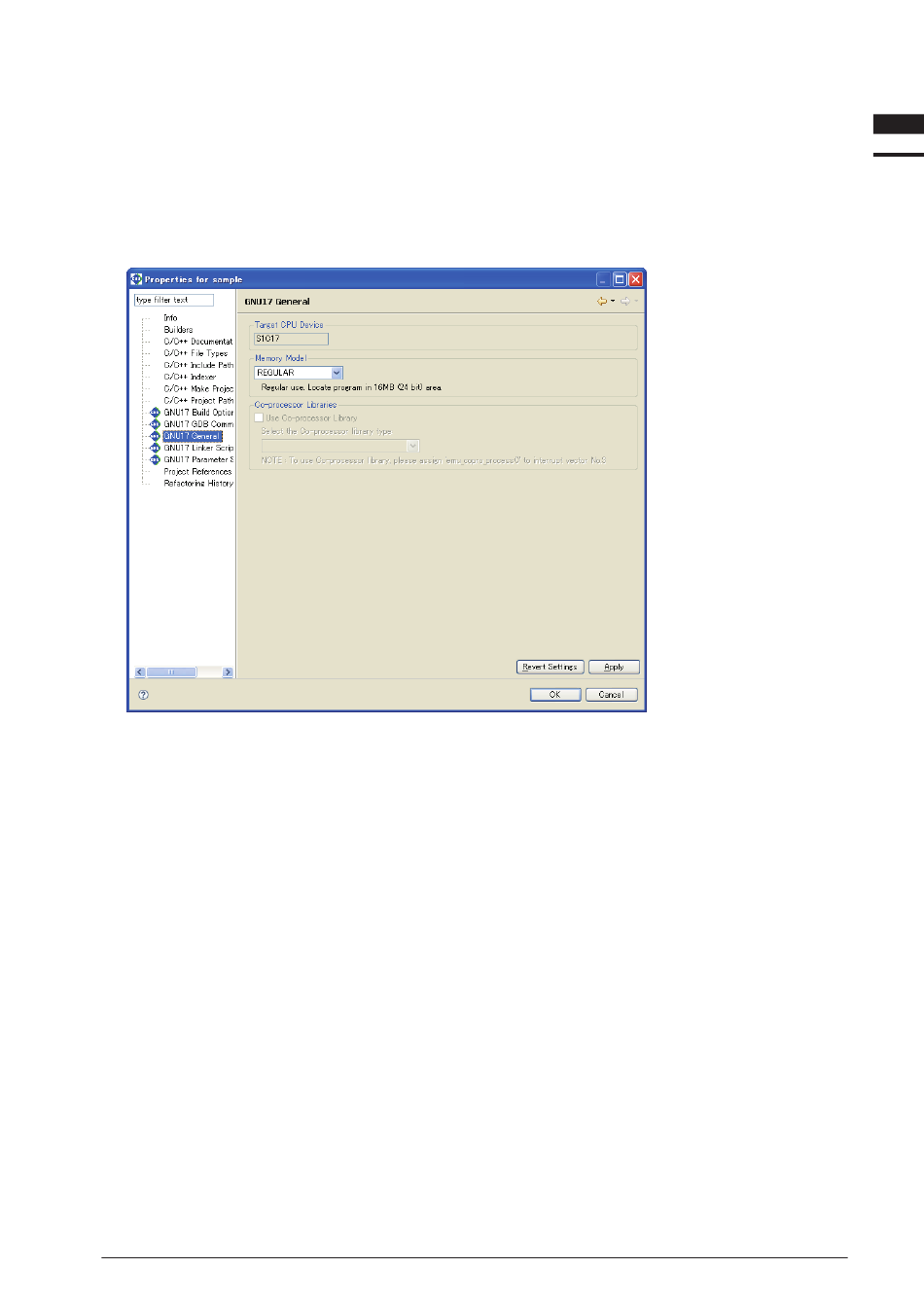

Step 7: Display the [Properties] dialog box by selecting [Properties] from the [Project] menu and open the
[GNU17 General] page.
Step 8: Make sure "S1C17701" is selected in the [Target CPU Device] combo box.
Step 9: Click the [OK] button.
The name of the target model used by the debugger to start ES-Sim17 is described below in the parameter file
to be passed on to the debugger:
ESSIM S1C17701
* When the user provides the original parameter file, add the above description to the file.
S5U1C17001C ManUal
(C COMPilEr PaCkagE fOr S1C17 faMily) (Ver. 1.5.0)
("S1C17701" is the name of the target processor.)
