11 OTHEr TOOlS

11.9 winfog17.exe

11.9.1 Outline of winfog17

The S1C17 Family allows several hardware specifications such as I/O port functions to be selected as mask options
depending on the model. This helps you to configure the hardware of your product by changing the S1C17 chip's
mask patterns according to its specifications.
The Function Option Generator winfog17 is the software tool for creating the files necessary to generate mask
patterns. Its graphical user interface (GUI) ensures easy selection mask options. From the files created by winfog17,
Seiko Epson produces the mask patterns for the S1C17 chip.

11.9.2 input/Output files

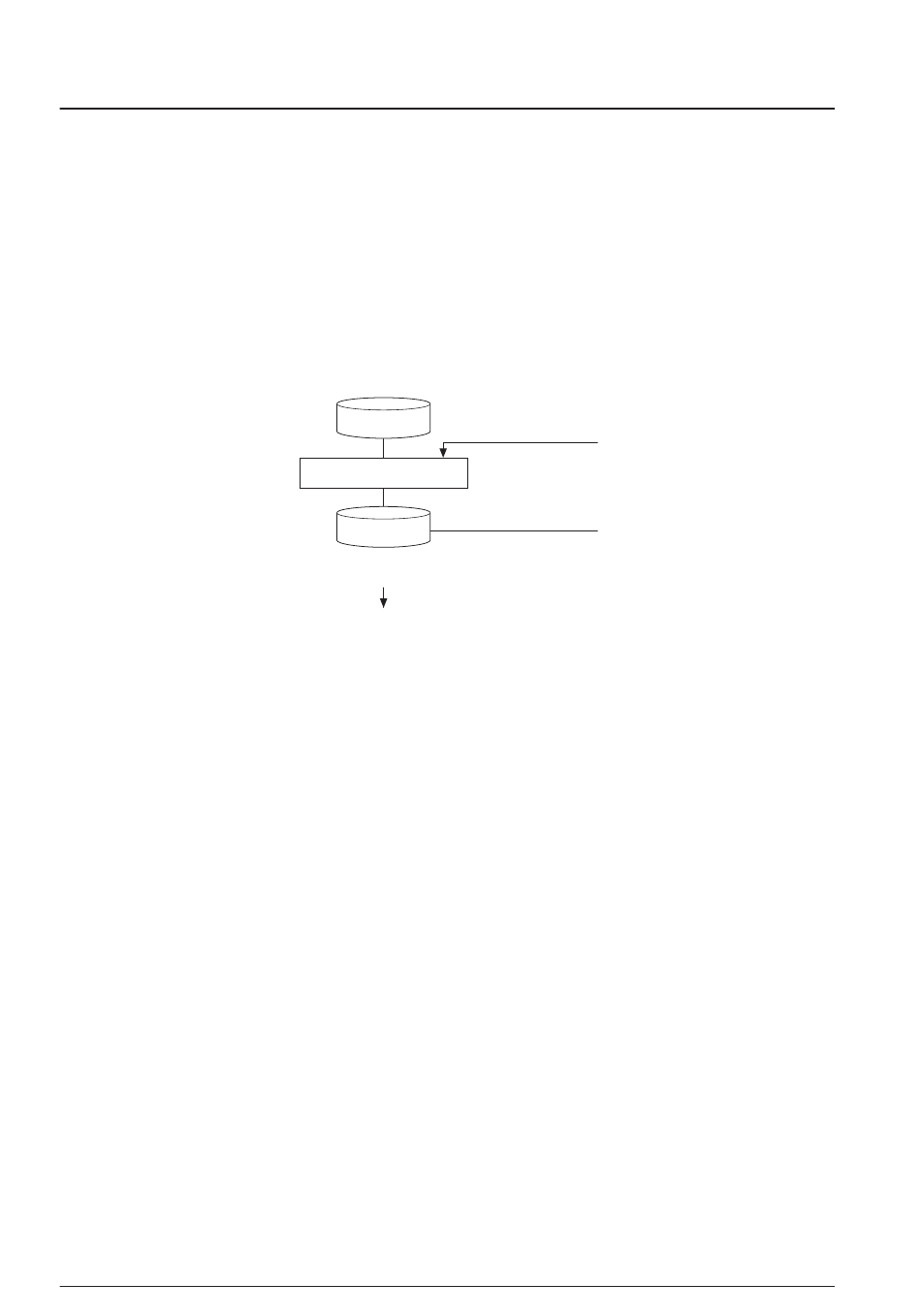

Figure 11.9.2.1 shows the input/output files of winfog17.
input file
Device information definition file
File format: Text format file
File name:
S1C17xxx.ini
Description: This file contains option lists for various types of microcomputers and other information. Always
be sure to use the files presented by Seiko Epson. This file is effective for only the type of
microcomputer indicated by the file name. Do not modify the contents of the file or use the file in
other types of microcomputers.
Output file
function option document file
File format: Text format file
File name:
<filename>.fdc
Description: This is a text format file in which the contents of selected mask options are stored. You can read
this file into winfog17 and correct the already selected option settings. This file is packed along
with completed other program/data files into a single file by the mask data checker winmdc17,
which we would like to have presented to Seiko Epson as the mask data file. From this file, Seiko
Epson will create the mask patterns for the IC.
11-32
Device information
S1C17xxx.ini
definition file
winfog
file.fdc
Function option
document file
Mask data creation
by mask data checker
Figure 11.9.2.1 Input/output files of winfog17
EPSOn
Selection of
mask options
(C COMPilEr PaCkagE fOr S1C17 faMily) (Ver. 1.5.0)
S5U1C17001C ManUal
