Second and subsequent debug sessions
If there is no need to change settings for the [External Tools Configurations] dialog box, do one of the follow-
ing to start the second and subsequent debug sessions:
• Select [External Tools] > [GDB17 Launch for <project name>] from the [Run] menu.
• Click the [External Tools] button in the window toolbar (for the same project as in the previous debugging
session).
• Select [GDB17 Launch for <project name>] from the [External Tools] shortcut in the window toolbar.
Precautions
• Once you start the debugger, you cannot execute a build process in the IDE. Quit the debugger to perform a
build.
• If you quit the IDE with the debugger open, the debugger will also be terminated.

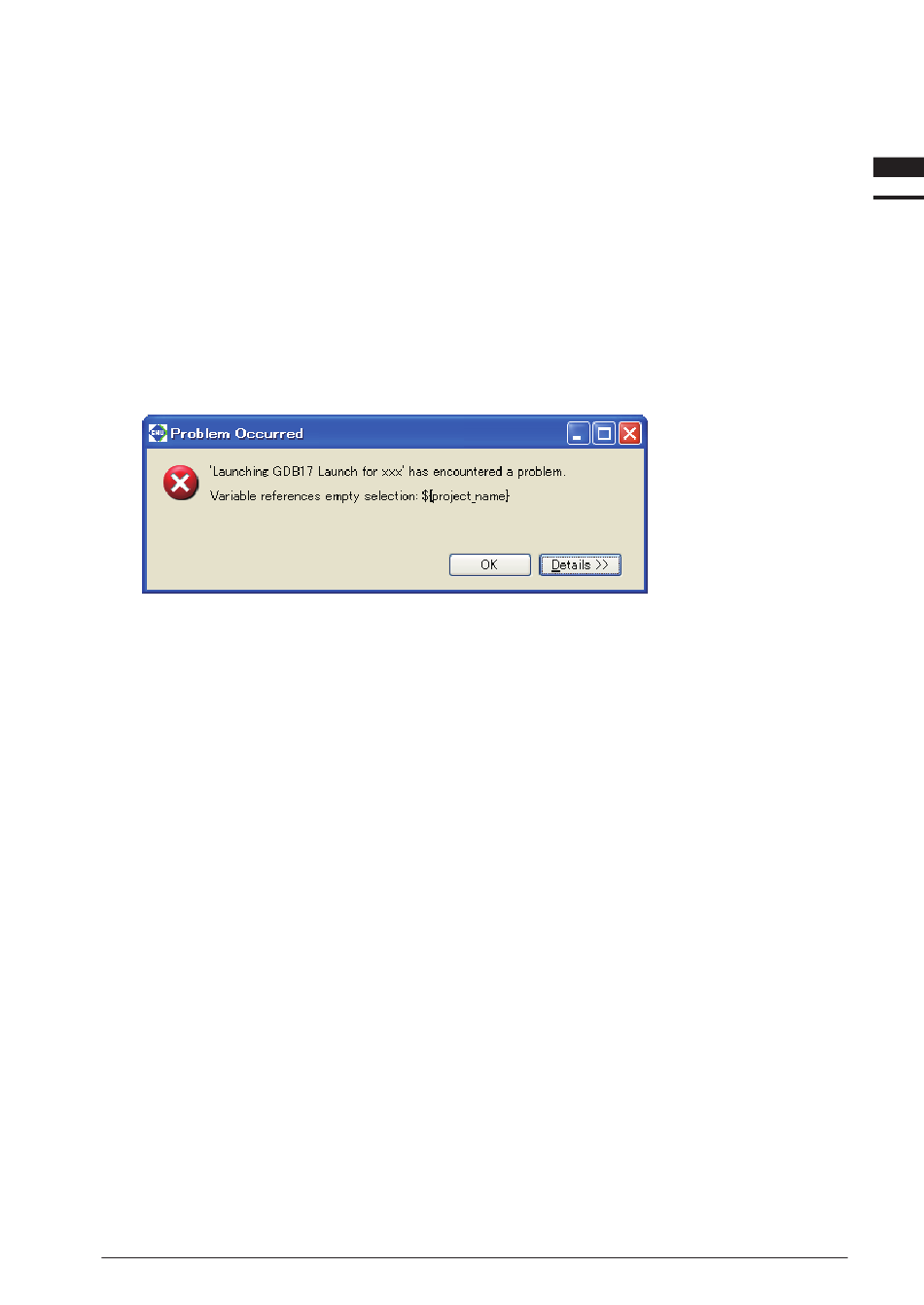

• If you click the [External Tools] button on the toolbar to launch the debugger, the following dialog box may
appear, and the debugger may not launch.
If this happens, select the project icon in the [C/C++ Projects] or [Navigator] view and click the [External
Tools] button once again.
Or, change "-x ${program_name}_gnu17IDE.cmd" in [Arguments] in the [Main] tab screen of the [External
Tools Configurations] dialog box to "-x <project name>_gnu17IDE.cmd."
S5U1C17001C ManUal
(C COMPilEr PaCkagE fOr S1C17 faMily) (Ver. 1.5.0)
EPSOn
5 gnU17 iDE
5
IDE
5-171
