11 OTHEr TOOlS

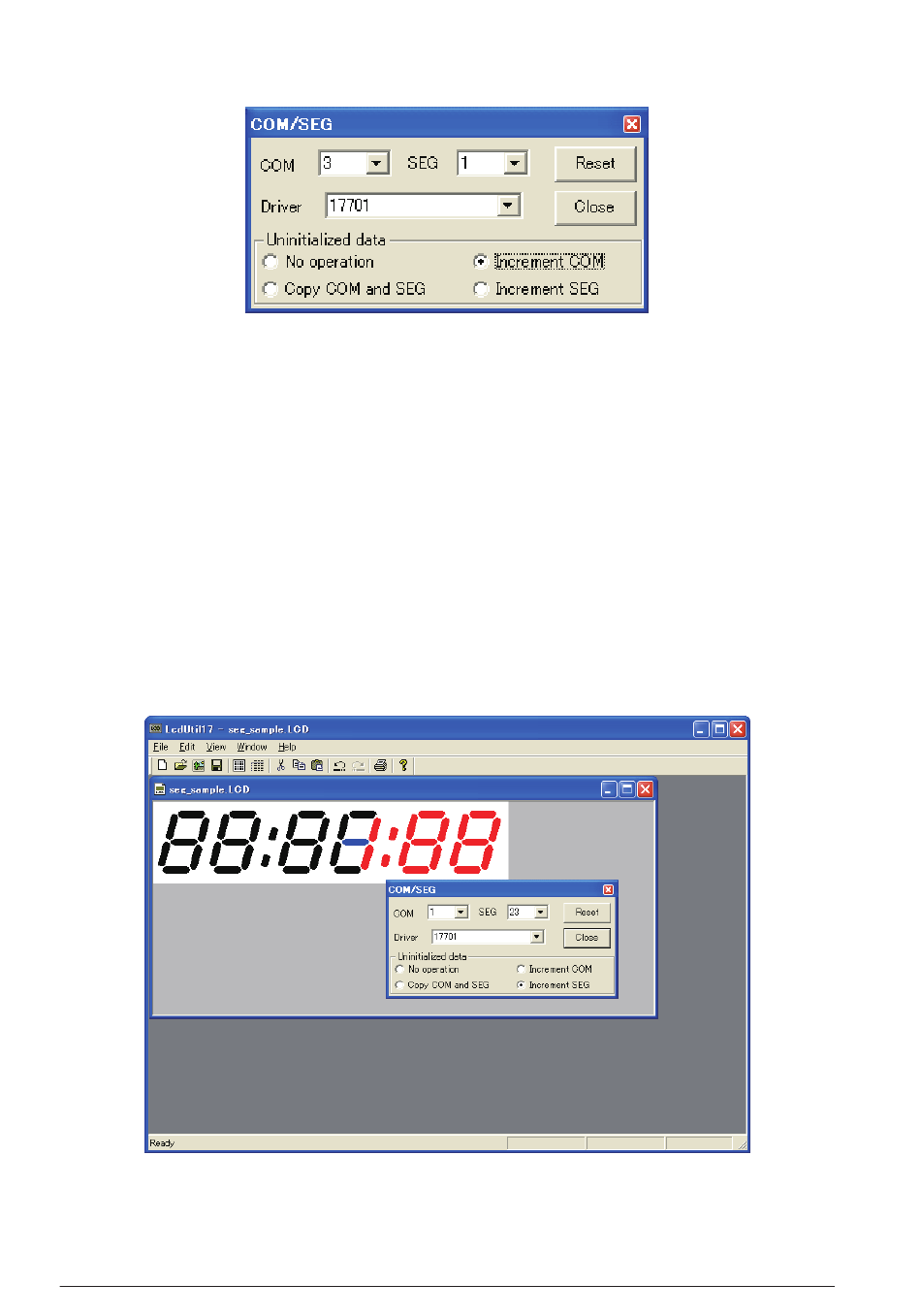

4-2) The [COM/SEG] dialog box appears.
COM, SEG
Select from the pull-down list. COM/SEG allocation is applied immediately after the change is made.
[Reset] button
Click this button to clear COM/SEG settings and set COM/SET in the "not set" state.
Driver
Indicates the name of the currently set LCD driver. This cannot be changed.
The maximum COM/SEG value is set by the LCD driver.
Uninitialized data
You can initiate settings if you click an icon for which no COM/SEG has been set.
No operation
Copy COM and SEG The displayed COM/SEG information will be set to the icon.
Increment COM
Increment SEG
Note: The port allocation information is discarded if you copy and paste an icon or move an icon from
another panel editing window. Dot matrices without allocation information appear in black.
11-62
The COM/SEG information will not be changed.
The COM will be incremented (+1) and set to the displayed COM/SEG
information.
The SEG will be incremented (+1) and set to the displayed COM/SEG
information.
