3 SOfTWarE DEVElOPMEnT PrOCEDUrES
Here, we'll set the debugger to simulator mode that does not require external equipment before we start debug-
ging.
The contents of the command file displayed by default are provided for debugging using an ICD.
It may be changed for simulator mode by the following procedure.

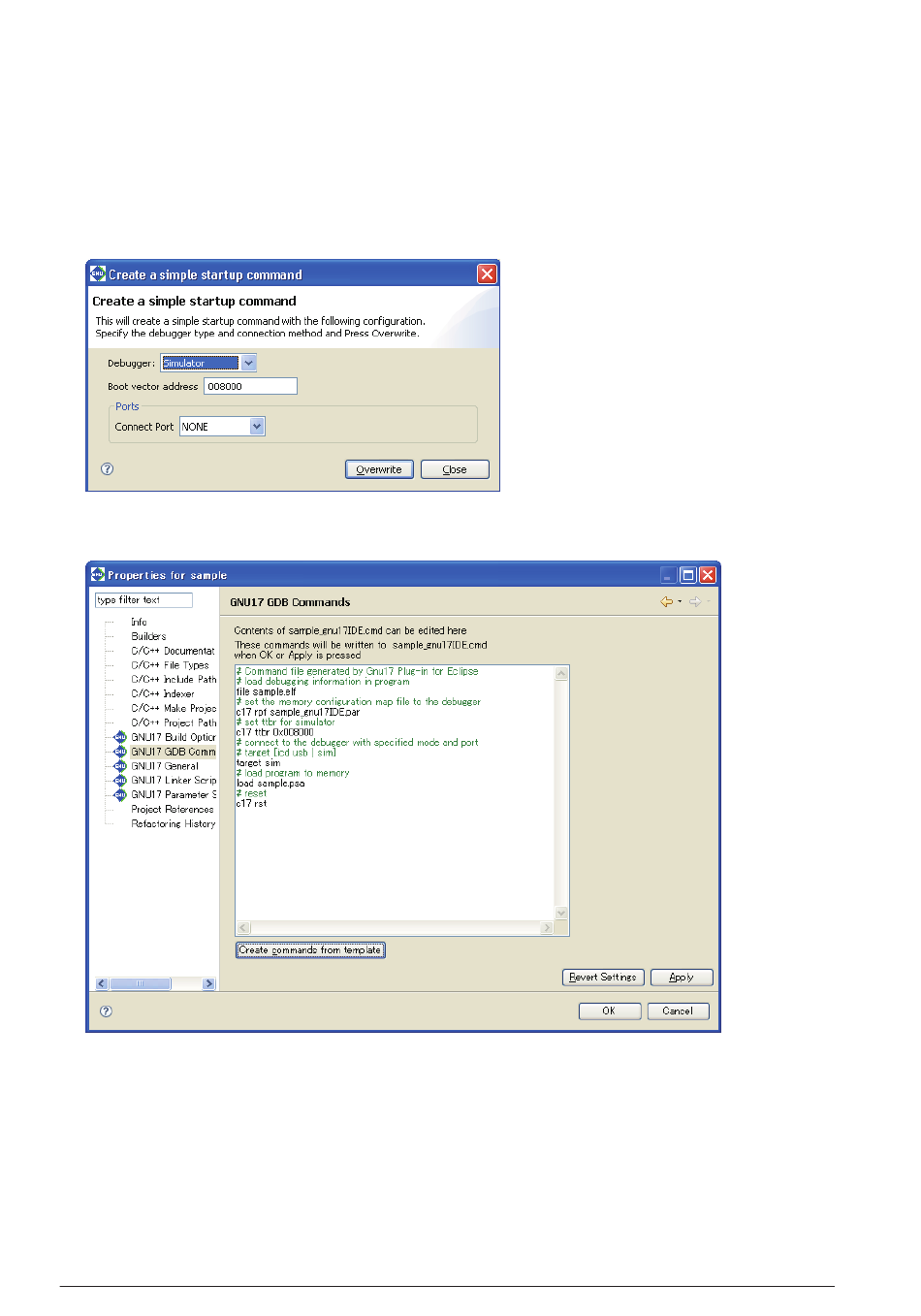

Step 49: Click the [Create commands from template] button to display the [Create a simple startup command]
dialog box.
Step 50: Select "Simulator" from the [Debugger:] combo box.
Step 51: Click the [Overwrite] button, then click the [OK] button in the [Overwrite commands] dialog box
displayed next.
The displayed contents are altered for simulator mode. The commands may be added and edited directly in this
page as necessary.
Step 52: Click the [OK] button.
When above settings are made, a command file named "sample_gnu17IDE.cmd" is generated and it will
be passed to the debugger.
