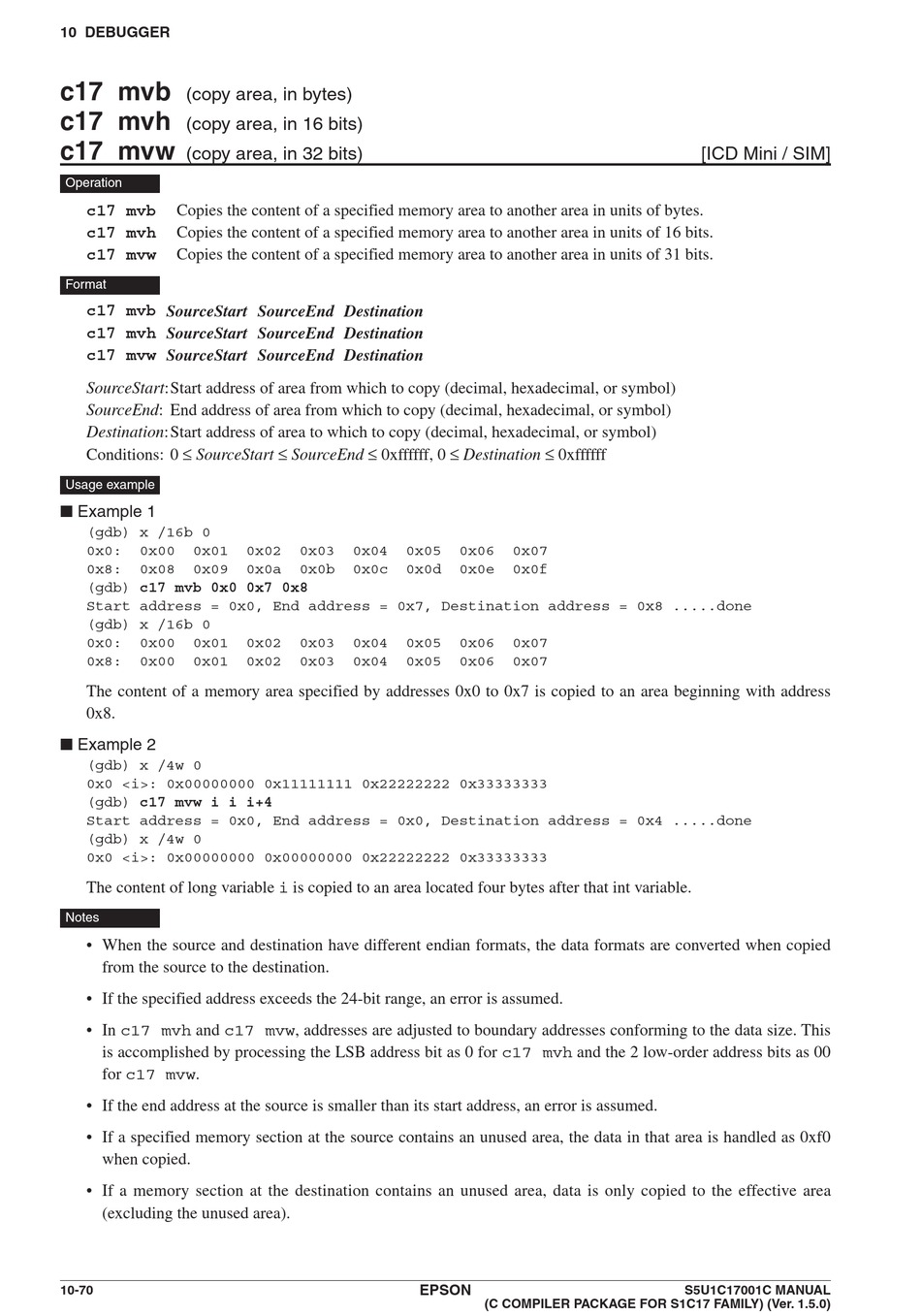

10 DEBUggEr
c17 mvb
(copy area, in bytes)
c17 mvh
(copy area, in 16 bits)
c17 mvw
(copy area, in 32 bits)
Operation
Copies the content of a specified memory area to another area in units of bytes.
c17 mvb
Copies the content of a specified memory area to another area in units of 16 bits.
c17 mvh
Copies the content of a specified memory area to another area in units of 31 bits.
c17 mvw
Format
c17 mvb SourceStart SourceEnd Destination
c17 mvh SourceStart SourceEnd Destination
c17 mvw SourceStart SourceEnd Destination
SourceStart: Start address of area from which to copy (decimal, hexadecimal, or symbol)
SourceEnd: End address of area from which to copy (decimal, hexadecimal, or symbol)
Destination: Start address of area to which to copy (decimal, hexadecimal, or symbol)
Conditions: 0 ≤ SourceStart ≤ SourceEnd ≤ 0xffffff, 0 ≤ Destination ≤ 0xffffff
Usage example
n Example 1
(gdb) x /16b 0
0x0: 0x00 0x01
0x8: 0x08 0x09
(gdb) c17 mvb 0x0 0x7 0x8
Start address = 0x0, End address = 0x7, Destination address = 0x8 .....done
(gdb) x /16b 0
0x0: 0x00 0x01
0x8: 0x00 0x01
The content of a memory area specified by addresses 0x0 to 0x7 is copied to an area beginning with address
0x8.
n Example 2
(gdb) x /4w 0
0x0 <i>: 0x00000000 0x11111111 0x22222222 0x33333333
(gdb) c17 mvw i i i+4
Start address = 0x0, End address = 0x0, Destination address = 0x4 .....done
(gdb) x /4w 0
0x0 <i>: 0x00000000 0x00000000 0x22222222 0x33333333
The content of long variable i is copied to an area located four bytes after that int variable.
Notes
• When the source and destination have different endian formats, the data formats are converted when copied
from the source to the destination.
• If the specified address exceeds the 24-bit range, an error is assumed.
• In c17 mvh and c17 mvw, addresses are adjusted to boundary addresses conforming to the data size. This
is accomplished by processing the LSB address bit as 0 for c17 mvh and the 2 low-order address bits as 00
for c17 mvw.
• If the end address at the source is smaller than its start address, an error is assumed.
• If a specified memory section at the source contains an unused area, the data in that area is handled as 0xf0
when copied.
• If a memory section at the destination contains an unused area, data is only copied to the effective area
(excluding the unused area).
10-70
0x02 0x03 0x04 0x05
0x0a 0x0b 0x0c 0x0d
0x02 0x03 0x04 0x05
0x02 0x03 0x04 0x05
0x06 0x07
0x0e 0x0f
0x06 0x07
0x06 0x07
