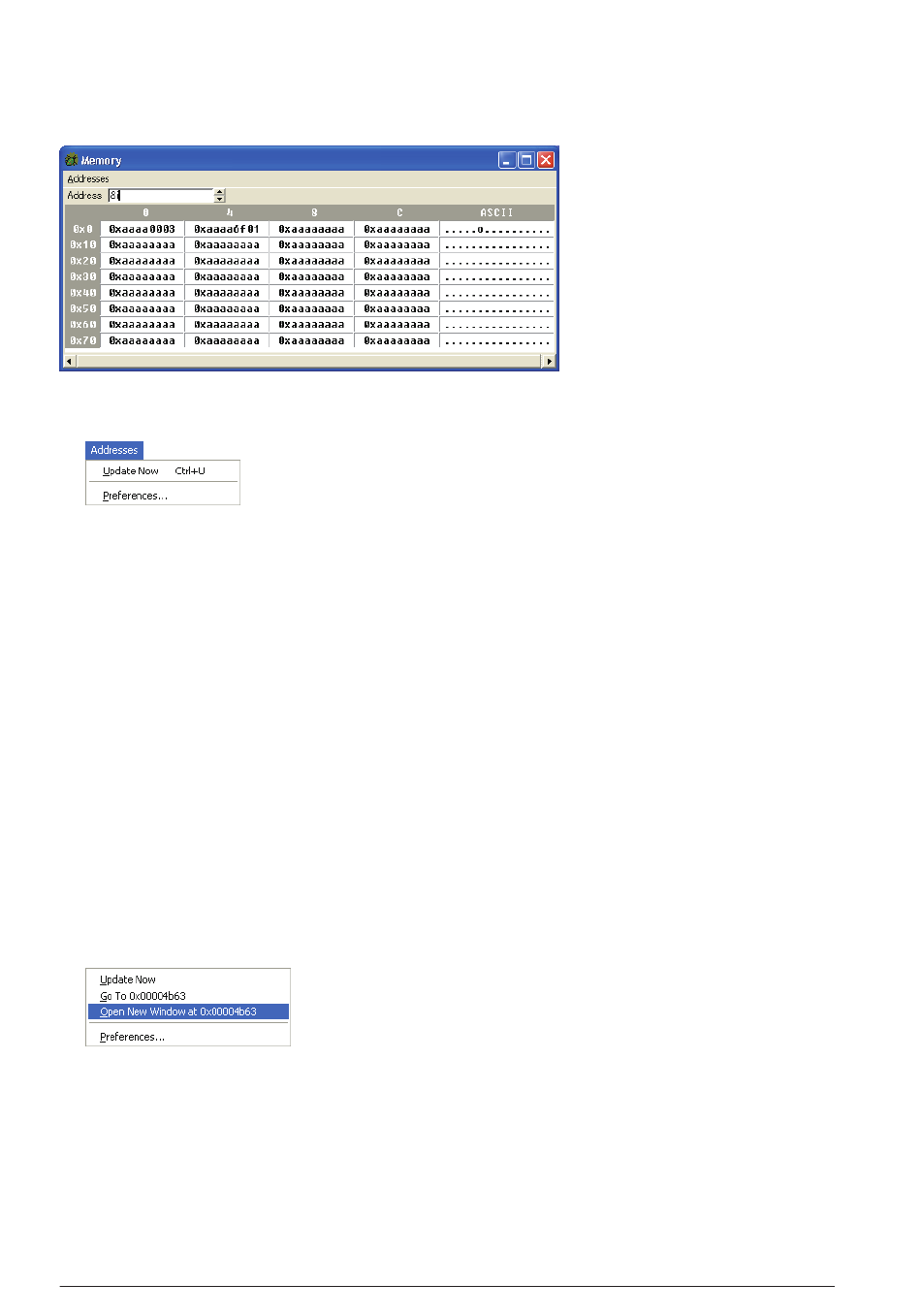

10.4.5 [Memory] Window

The [Memory] window is used to display and correct the contents of memory.
Menus
[addresses] menu
Displayed contents
The [Memory] window displays the dumped data of a memory area. With default settings, 16 bytes (4 bytes × 4)
of memory content, beginning with the start address of a selected line and the corresponding ASCII character,
are displayed on one line.
The default data size and display format can be changed in the [Memory Preferences] dialog box. For details,
see "Changing the basic settings" later in this section.
Note that 32-bit data are displayed in little endian format. In simulator mode, the memory content of any area is
displayed in endian format (i.e., big or little endian as specified in a parameter file) set for that area.
Operation
Opening and closing the window
The [Memory] window opens automatically at debugger startup. Clicking the [Close] button closes the window.
The window can also be minimized.
If necessary, multiple instances of the [Memory] window can be opened to display two or more areas
simultaneously. To open another [Memory] window, select any item of data by clicking it in the current [Memory]
window, then choose [Open New Window at <data>] from the popup menu that appears by right-clicking.
A new [Memory] window then appears, with contents displayed in it starting from the address of the selected
data.
10-24
Update now
Updates the displayed contents to the current state.
Preferences...
Displays the [Memory Preferences] dialog box in which you can choose the memory
content display format and related settings. For details about the content set in this
dialog box, see "Changing the basic settings" later in this section.
