Epson S5U1C17001C Manual page 162

5 gnU17 iDE
(3) Specify the location at which you want to create a project directory. (This is necessary if you want to specify a
specific location.)
With default settings, the [Use default location] check box is selected, and a project directory is generated in the
workspace directory specified when you started the IDE. Normally, go to the next step directly.
If you want to create a project directory outside the workspace, deselect the [Use default location] check box
and enter a path in [Location:], or select an existing directory from the list displayed by clicking the [Browse...]
button.
note: The path is limited to a maximum of 200 characters.
(4) Click the [Next>] button.

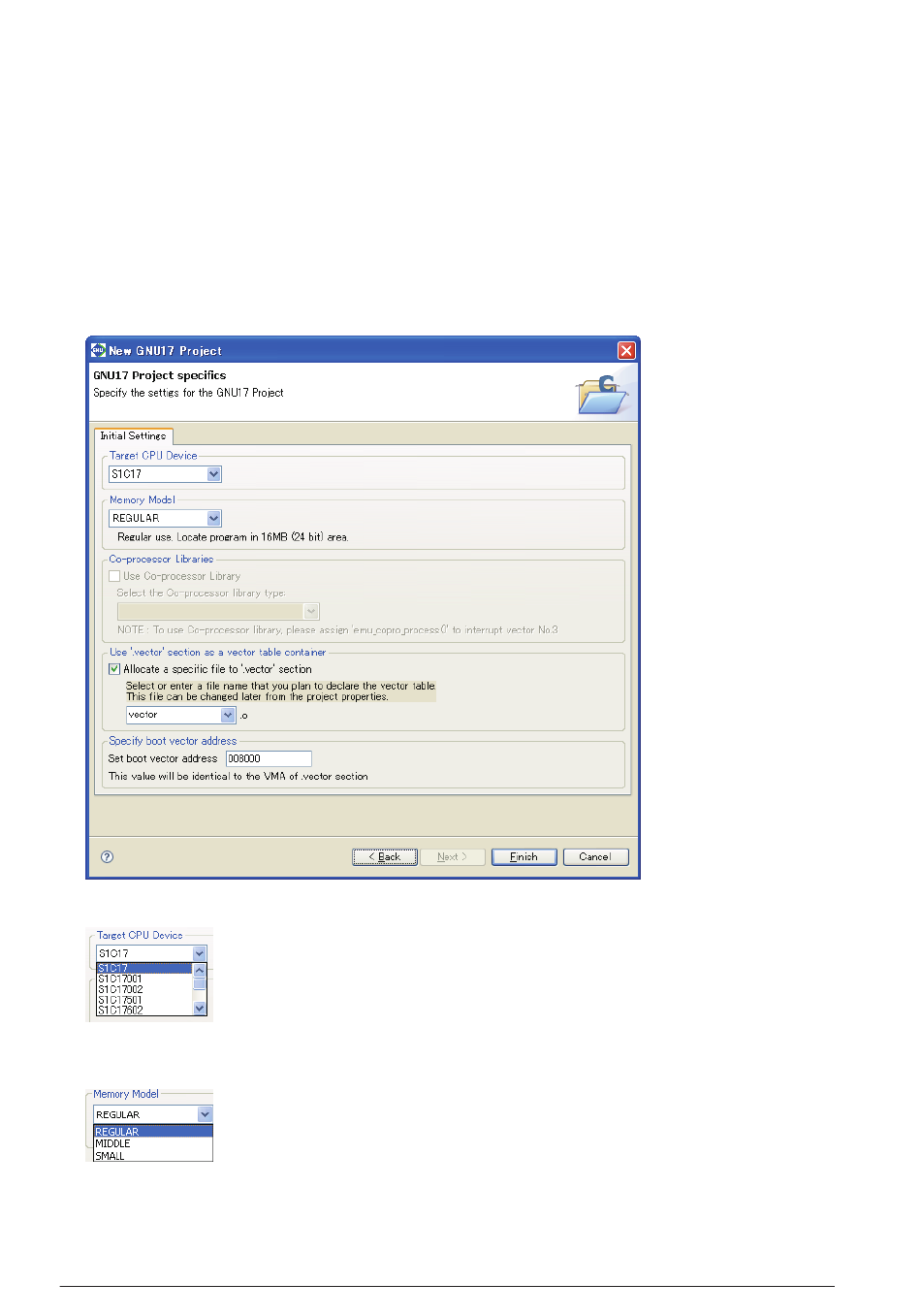

The IDE goes to the target CPU select screen shown below.
(5) From the [Target CPU Device] combo box, select the target processor:
The models displayed in the list may be added/deleted by the configuration file that will be
modified when a new model is released or an existing model is discontinued.
*Note that the CPU cannot be changed once a new project is created.
When "S1C17" is selected, only files up to an executable elf file will be generated when
the project is built.
(6) From the [Memory Model] combo box, select the memory model of the target:
REGULAR: 24 bits (Up to 16M-byte space can be used.)
MIDDLE:
SMALL:
You can modify settings for the memory model later. (Refer to Section 5.7.1, "Setting the Memory Model".)
5-40
20 bits (Up to 1M-byte space can be used.)
16 bits (Up to 64K-byte space can be used.)
EPSOn
(C COMPilEr PaCkagE fOr S1C17 faMily) (Ver. 1.5.0)
S5U1C17001C ManUal
