11.11.3 Starting and Closing lcdUtil17

To start LcdUtil17, select [Start LcdUtility] from the [GNU17 Actions] menu of the IDE or click the button
on the IDE toolbar.
To end the LcdUtil17 program, select [Exit] from the [File] menu.

11.11.4 Window

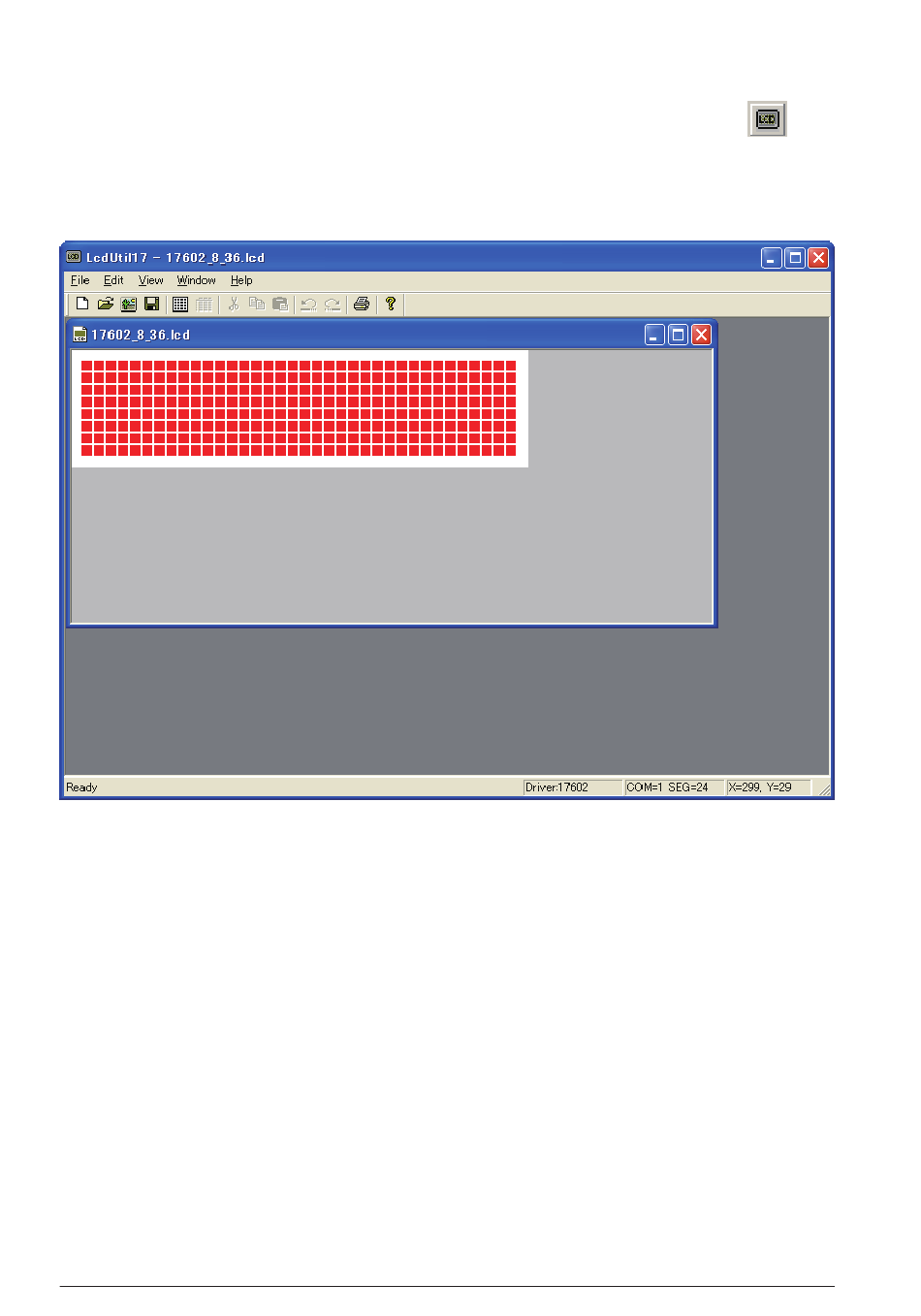

Panel editing window
Opening a bitmap file (.bmp) or LCD file (.lcd) will display the file in this window.
This window is used to design an LCD panel layout and assign COM/SEG.
Two or more windows can be opened at the same time, and icons and dot matrices can be dragged and dropped
between two windows.
