3 SOfTWarE DEVElOPMEnT PrOCEDUrES

3.6 Tutorial 4 (How to Use ES-Sim17)

The S5U1C17001C Package contains the Embedded System Simulator (ES-Sim17) for simulating the hardware
functions of the target model, such as I/O ports and LCD display, during debugging on the PC. The debugger will
launch ES-Sim17 by setting some conditions with the IDE. This section describes operations on the IDE to use
ES-Sim17. For other operations, see Tutorials 1 to 3. For details on ES-Sim17, see Section 10.11, "Embedded Sys-
tem Simulator (ES-Sim17)".

3.6.1 Settings required for launching ES-Sim17

To launch ES-Sim17 at the start of the debugger, the following two settings are required.
1. Specifying the target CPU (parameter file)
2. Starting the debugger in simulator mode (debugger command file)
This section explains the operations on the IDE to set the above conditions when a new project begins.
Specifying the target model
To simulate model specific hardware functions, the target CPU to be used must be specified in advance.
When a new project is created, specify the target CPU as in the procedure below.

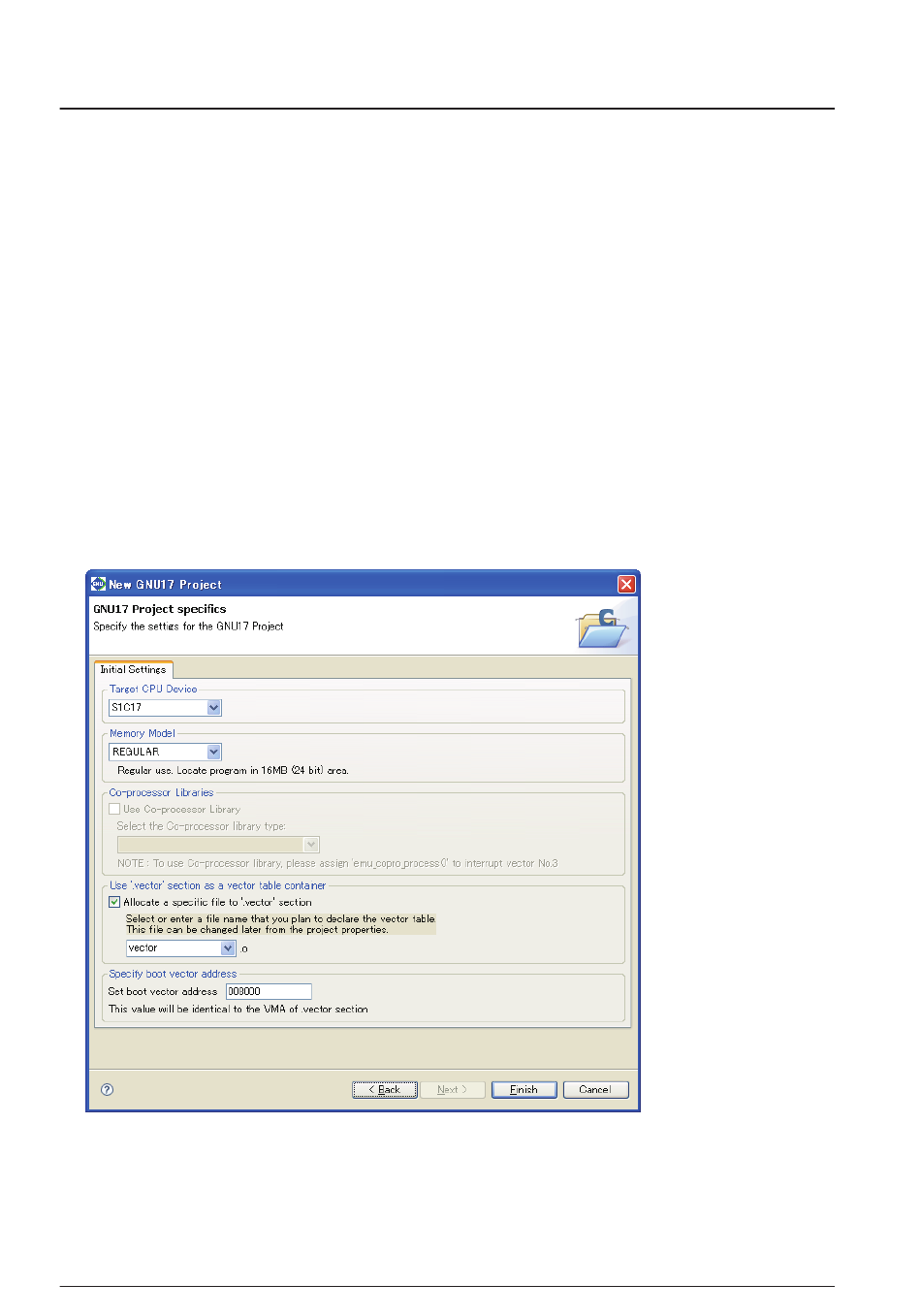

Step 1: Select [New GNU17 Project] from the [New] pull-down menu on the tool bar to launch the [New
GNU17 Project] wizard. Then enter the project name in the [Project name:] box on the first wizard
page and click the [Next>] button.
