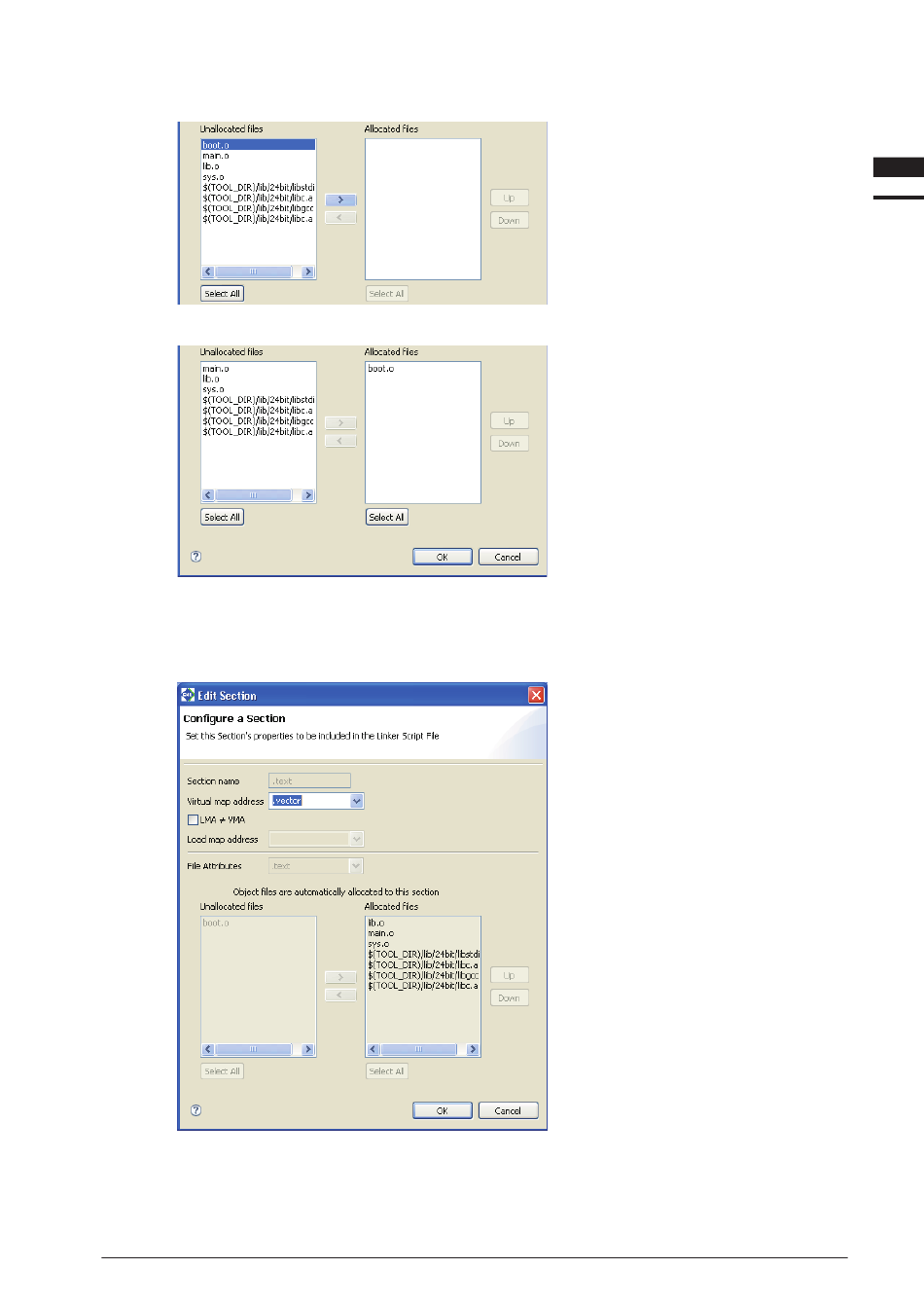

(4) Select boot.o from the unselected file list and click the [>] button.

The selected boot.o is moved to the selected file list.

(5) Click the [OK] button to end editing work.

Since the .text section of boot.o has been located in the .vector section, boot.o in the .text

section information is moved to the unselected file list. (You cannot locate one file in multiple sections

with the same attribute.)

(6) Simply closing the [Edit Section] dialog box with the [OK] button will not automatically reflect the

edits made here in the linker script. You must click the [Apply] or the [OK] button in the [Properties]

dialog box to confirm your edits.

S5U1C17001C ManUal

(C COMPilEr PaCkagE fOr S1C17 faMily) (Ver. 1.5.0)
