Debugger gdb (2)
Windows

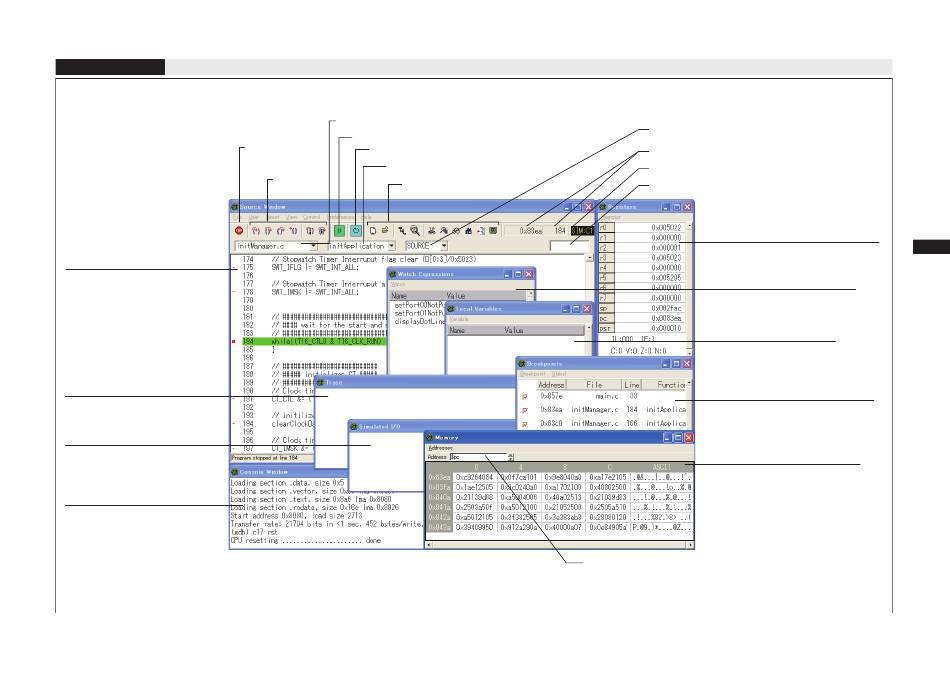

[Source] window
This is the main window of the
debugger. The menus and the tool
bar are generally used in the debugger.
This window allows execution of some
debugging functions, such as setting/
clearing software PC break points, as
well as displaying programs.
[Trace] window
Used to display trace data.
[Simulated I/O] window
Used to input and display data for
simulated I/O function.
[Console] window
Used to enter debug commands and
display the execution results.
Combo box to display and search
source file names
User defined button
Forced break
Reset button
button
Combo box to display and search
Program
function names
execution
Window open buttons
buttons
Pull-down list for selecting a display mode
(SOURCE/ASSEMBLY/MIXED/SRC+ASM)
Current PC address and source line number
Connect mode and CPU type
Text box for searching strings
[Registers] window
Used to display and edit the register values.
[Watch Expressions] window
Used to monitor global symbols and
register values.
[Local Variables] window
Used to monitor local variables.
[Breakpoints] window
Used to manage software PC breakpoints.
[Memory] window
Used to display and edit memory data.
Text box for specifying display start address
