Options and Accessories

9 Options and Accessories
9.1 Options and Accessories
Danfoss offers a wide range of options and accessories for
®
the VLT AutomationDrive.

9.1.1 Slot A

Slot A position is dedicated to Fieldbus options. For further
information, see the instructions that accompany the
optional equipment.

9.1.2 Slot B

The power to the frequency converter must be discon-
nected. For discharge time, see the instructions supplied
with the option.
First, ensure that the parameter data has been saved
before option modules are inserted/removed from the
frequency converter. To save parameter data, use MCT 10
or similar software. Then perform the following steps:
1. Remove the LCP, the terminal cover, and the LCP
frame from the frequency converter
2. Fit the MCB 10x option card into slot B
3. Connect the control cables and relieve the cable
using the enclosed cable strips
4. Remove the knock out in the extended LCP frame
so that the option fits under the extended LCP
frame
5. Fit the extended LCP frame and terminal cover
6. Fit the LCP or blind cover in the extended LCP
frame
7. Connect power to the frequency converter
8. Set up the input/output functions in the
corresponding parameters, as mentioned in
4.3 General Specifications

9.1.3 Slot C

The power to the frequency converter must be discon-
nected. For discharge time, see the instructions supplied
with the option.
Ensure that the parameter data has been saved before
option modules are inserted/removed from the frequency
converter. To save parameter data, use MCT 10 or similar
software.
®
VLT AutomationDrive FC 300 Design Guide 90-1200 kW
When installing a C option, a mounting kit is required. For
a list of mounting kit ordering numbers, refer to 5 How to
Order. The installation is illustrated using MCB 112 as an
example. For more information on installation of MCO 305,
see the separate operating instructions that accompany
the optional equipment.

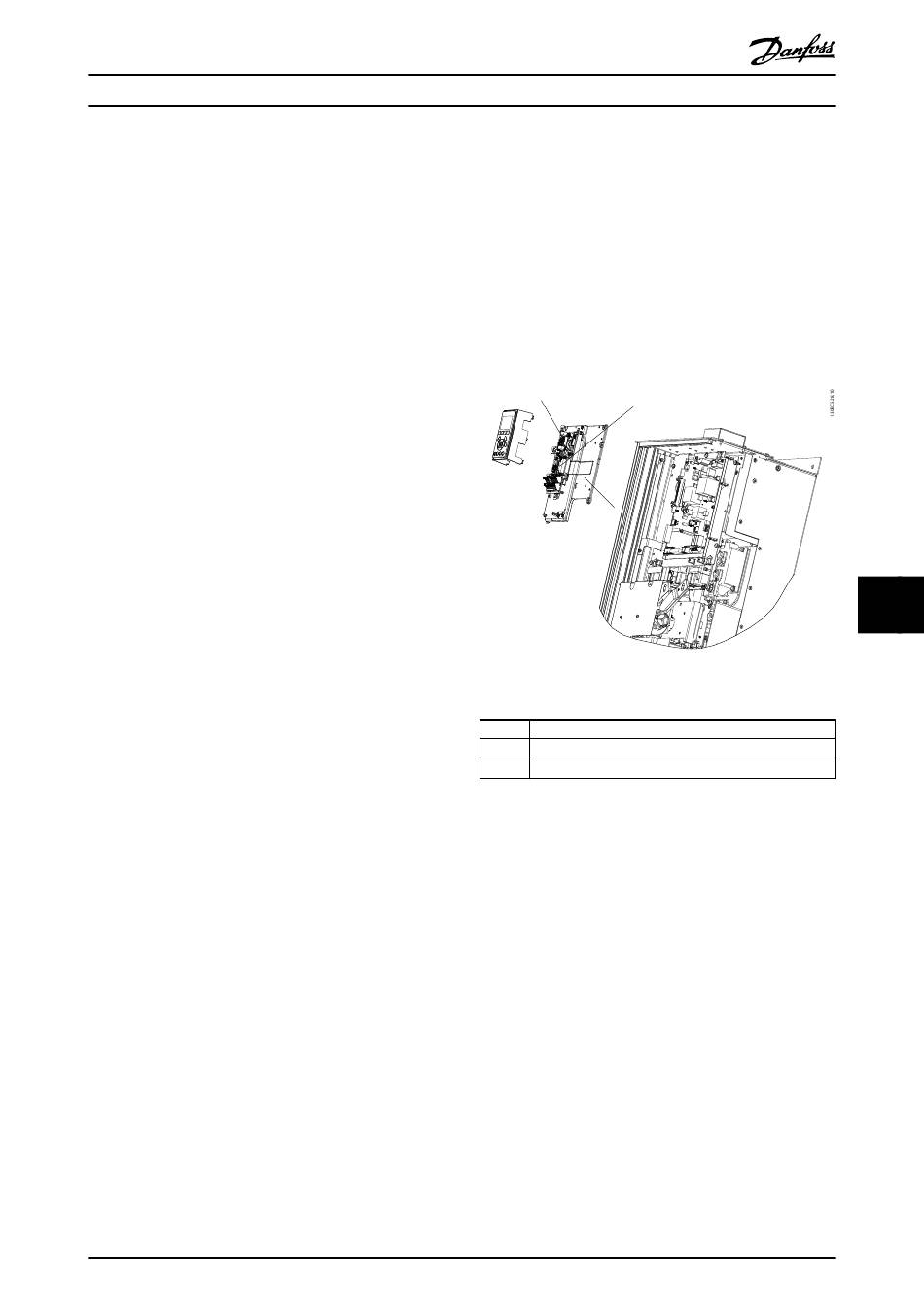

Illustration 9.1 Locations of Option Mounting Slots
1
2
3
Table 9.1 Legend to Illustration 9.1
9.2 General Purpose Input Output Module
MCB 101
MCB 101 is used for extension of digital and analog inputs
and outputs of FC 302. MCB 101 must be fitted into slot B
in the VLT
Contents:
•
•
•
MG34S202 - Rev. 2013-08-19
1
2
3
Slot A
Slot B
Slot C
®
AutomationDrive.
MCB 101 option module
Extended fixture for the LCP
Terminal cover
9 9
225
