Application Examples

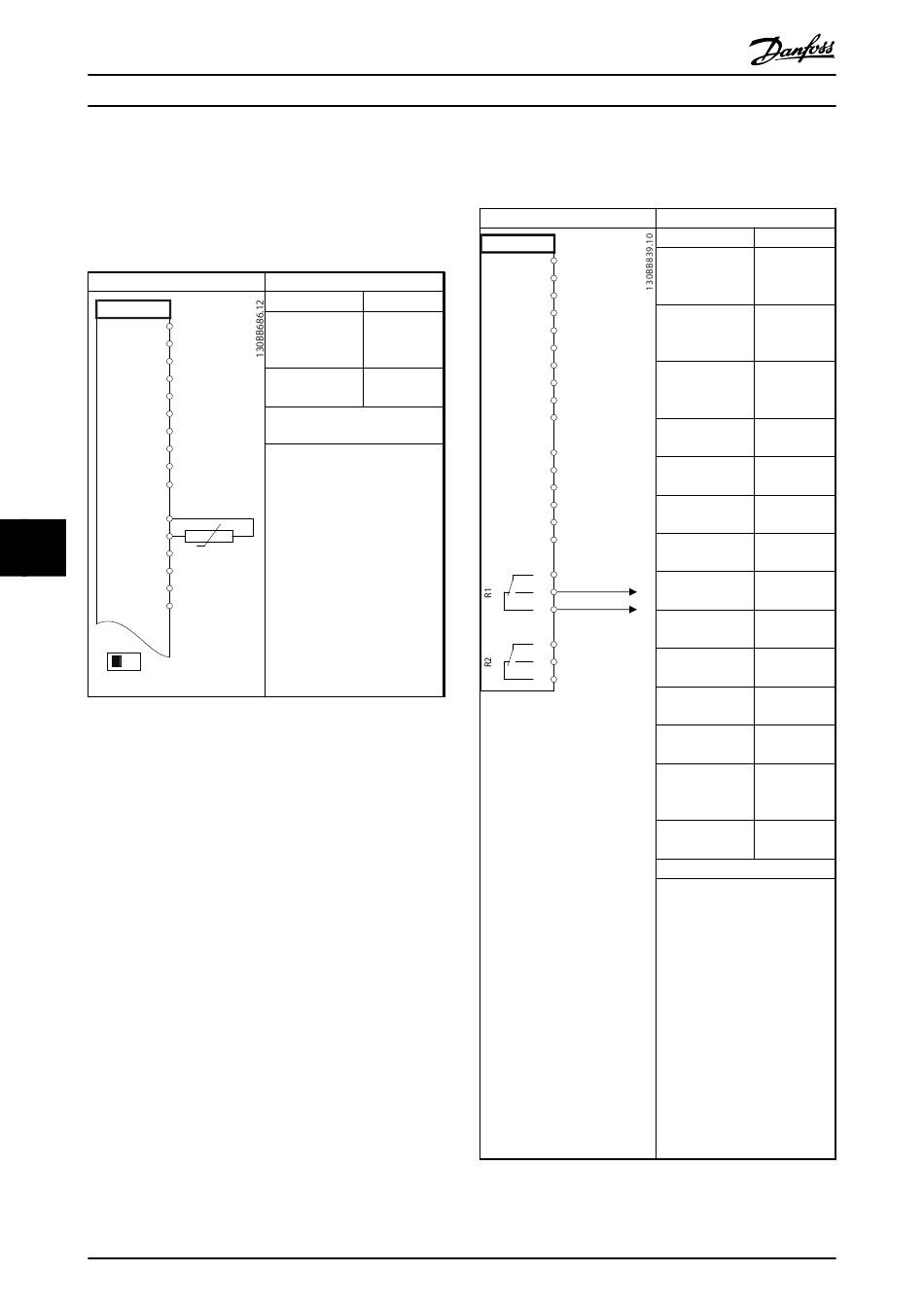

8.8 Motor Thermistor

CAUTION
Thermistors must use reinforced or double insulation
to meet PELV insulation requirements.
VLT
+24 V 12
+24 V 13
D IN 18
D IN 19
COM 20
D IN 27
D IN 29
D IN 32
D IN 33
D IN 37
+10 V 50
A IN
8 8
53
A IN
54
COM
55
A OUT
42
COM
39
U - I
A53
Table 8.12 Motor Thermistor
222
®
VLT AutomationDrive FC 300 Design Guide 90-1200 kW
Parameters
Function Setting
1-90 Motor [2]
Thermal Thermistor
Protection trip
1-93 Thermistor [1] analog
Source input 53
*=Default Value
Notes/Comments:
If only a warning is desired,
1-90 Motor Thermal Protection
should be set to [1] Thermistor
warning.
MG34S202 - Rev. 2013-08-19

8.9 Relay Setup with Smart Logic Control

FC
+24 V 12
+24 V 13
D IN 18
D IN 19
COM 20
D IN 27
D IN 29
D IN 32
D IN 33
D IN
37
+10 V 50
A IN
53
A IN
54
COM
55
A OUT
42
COM
39
01
02
03
04
05
06
Table 8.13 Using SLC to Set a Relay
Parameters
Function Setting
4-30 Motor
Feedback Loss
Function [1] Warning
4-31 Motor 100 RPM
Feedback Speed
Error
4-32 Motor 5 s
Feedback Loss
Timeout
7-00 Speed PID [2] MCB 102
Feedback Source
17-11 Resolution 1024*
(PPR)
13-00 SL [1] On
Controller Mode
13-01 Start [19] Warning
Event
13-02 Stop [44] Reset
Event key
13-10 Comparat [21] Warning
or Operand no.
13-11 Comparat [1]*
or Operator
13-12 Comparat 90
or Value
13-51 SL [22]
Controller Event Comparator 0
13-52 SL [32] Set
Controller Action digital out A
low
5-40 Function [80] SL digital
Relay output A
*=Default Value
Notes/Comments:
If the limit in the feedback
monitor is exceeded, Warning
90 is issued. The SLC monitors
Warning 90 and in the case
that Warning 90 becomes TRUE
then Relay 1 is triggered.
External equipment may
require service. If the feedback
error goes below the limit
again within 5 s, then the
frequency converter continues
and the warning disappears.
Press [Reset] on the LCP to
reset Relay 1.
