Electrical Installation
Terminal Locations - Frame Size F2 and F4
Take the following position of the terminals into consideration when designing the cable access.
1
FASTENER TORQUE: MIO 19 Nm (14 FT -LB) FASTENER TORQUE: MIO 19 Nm (14 FT -LB)
U/T1 96 V/T2 97 W/T3 98 U/T1 96 V/T2 97 W/T3 98

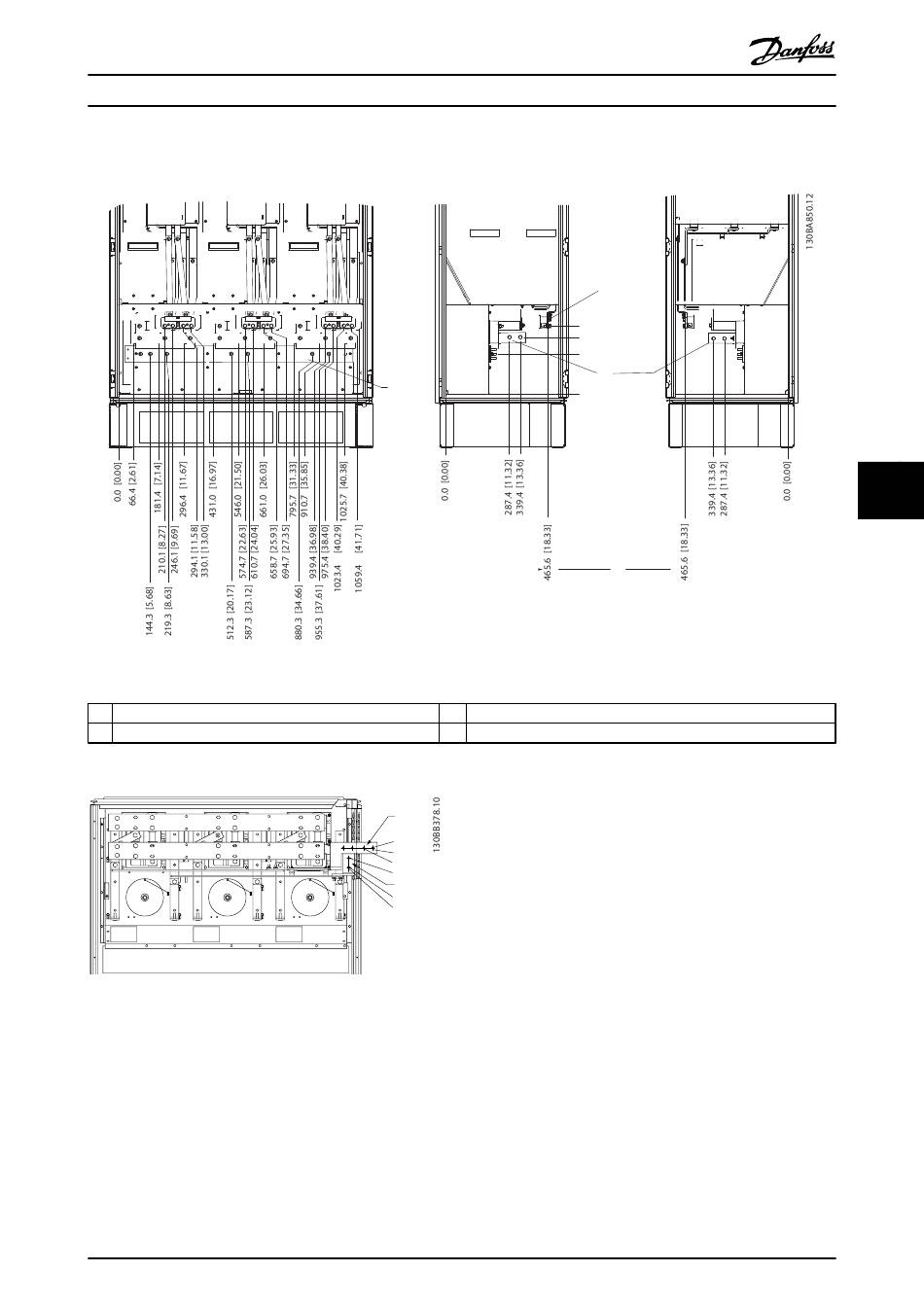

Illustration 7.26 Terminal Locations - Inverter Cabinet - F2 and F4. Gland Plate is 42 mm below .0 Level.
1 Front Side
2 Left Side
Table 7.19 Legend to Illustration 7.26
Illustration 7.27 Regeneration Terminal Locations - F2 and F4
®
VLT AutomationDrive FC 300 Design Guide 90-1200 kW
FASTENER TORQUE: MIO 19 Nm (14 FT -LB)
U/T1 96 V/T2 97 W/T3 98
6
3 Right Side
4 Earth ground bar
DC '-'
1739.1
1203.2
1163.2
1694.1
DC '+'
1654.1
1098.1
