Electrical Installation

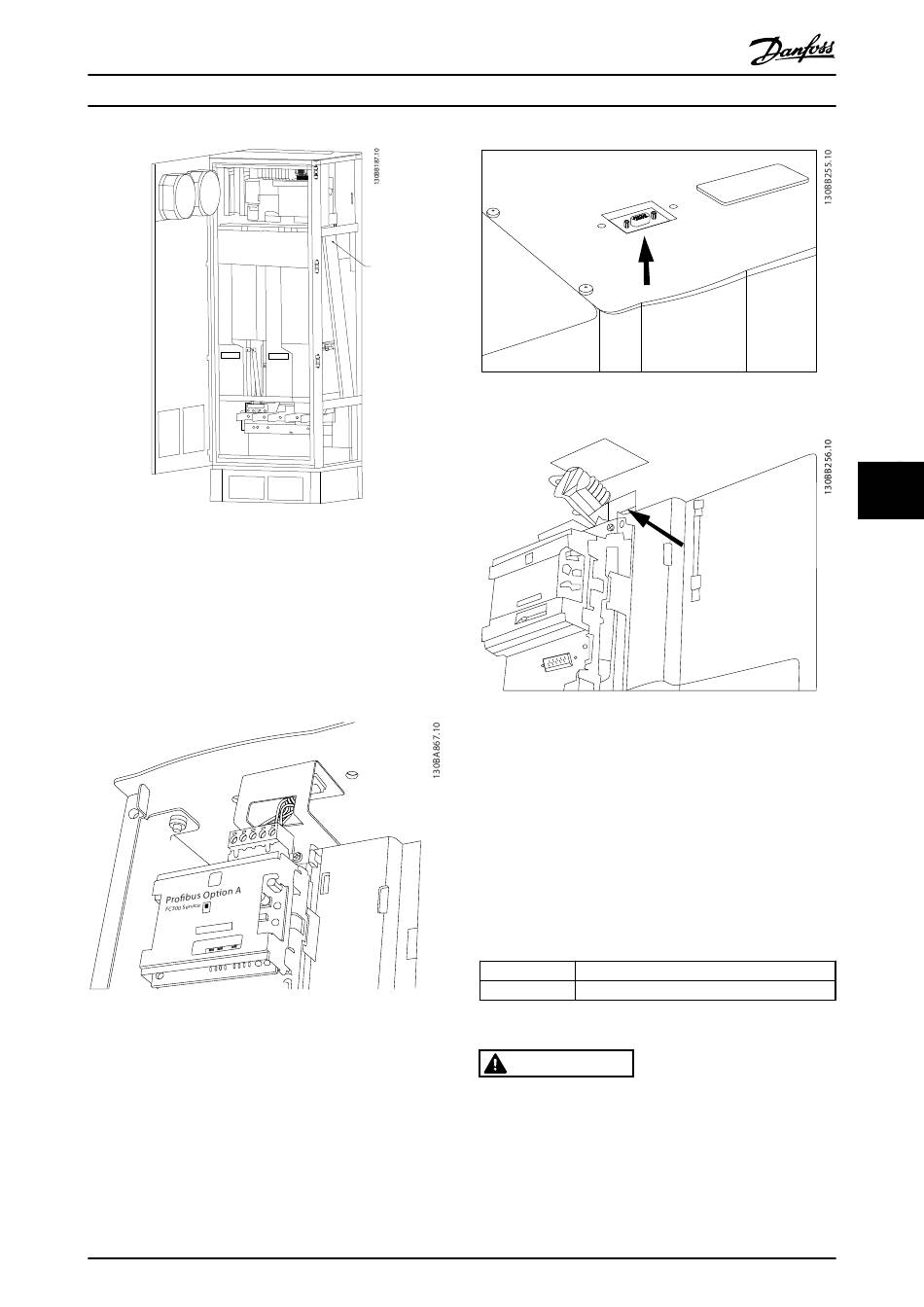

Illustration 7.36 Control Card Wiring Path for the F1/F3.
Control Card Wiring for the F2/F4 Use the Same Path
In the D- and E-Frame frequency converters, it is possible
to connect the fieldbus from the top of the unit, as shown
in the following illustrations. On the IP21/54 (NEMA-1/
NEMA-12) unit, a cover plate must be removed.
The kit number for the fieldbus top connection is
176F1742.
Illustration 7.37 Top Connection for Fieldbus
®
VLT AutomationDrive FC 300 Design Guide 90-1200 kW
1
Illustration 7.38 Profibus Top Entry Kit, Installed
Illustration 7.39 Shield Termination/Strain Relief for Fieldbus
Conductors
Installation of 24 V External DC Supply
Torque: 0.5-0.6 Nm (5 in-lbs)
Screw size: M3
24 V DC external supply can be used as a low-voltage
supply to the control card and any installed option cards.
This enables full operation of the LCP (including parameter
setting) without connection to mains. Note that a warning
of low voltage displays when 24 V DC has been connected;
however, there is no tripping.
No.
35 (-), 36 (+)
Table 7.67 Terminal Numbers for External 24 V Supply
WARNING
Use 24 V DC supply of type PELV to ensure correct
galvanic isolation (type PELV) on the control terminals of
the frequency converter.
