Mechanical Installation

6.2.3 Terminal Locations - Frame Size D

Take the following terminal positions into consideration when designing for cables access.
Dimensions are shown in mm [in].
NOTICE
Power cables are heavy and hard to bend. Consider the optimum position of the frequency converter to ensure easy
installation of the cables.

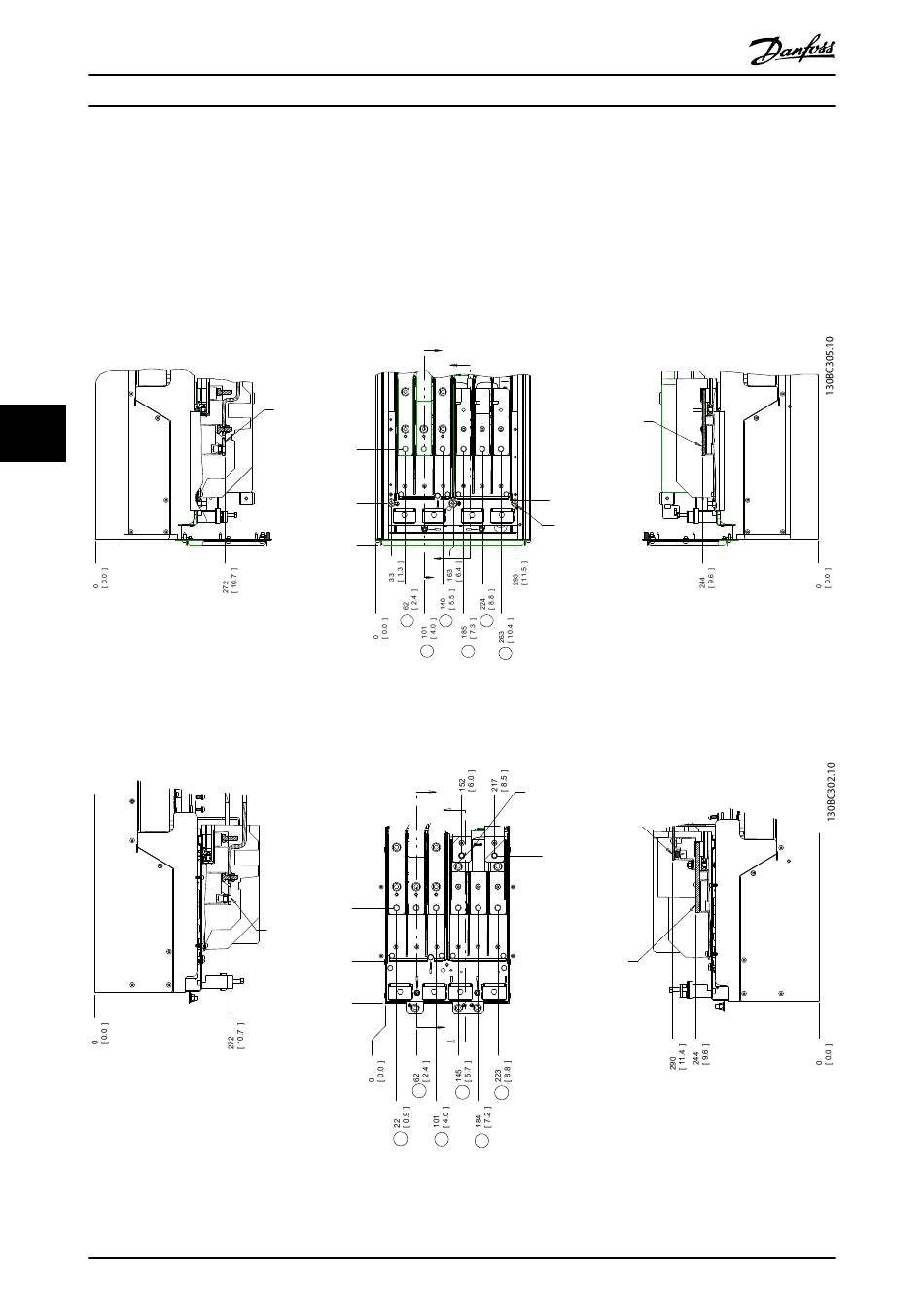

SECTION A-A
MAINS TERMINALS
6 6
Illustration 6.46 Position of Power Connections, Frame Size D1h
SECTION A-A
MAINS TERMINALS
Illustration 6.47 Position of Power Connections, Frame Size D3h
120
®
VLT AutomationDrive FC 300 Design Guide 90-1200 kW
MAINS TERMINAL
200
[ 7.9 ]
GROUND 88
[ 3.5 ]
0
[ 0.0 ]
B
A
R
S
A
B
188
[ 7.4 ]
MAINS
TERMINAL
83
[ 3.3 ]
0
[ 0.0 ]
B
S
R
T
MG34S202 - Rev. 2013-08-19
A
B
TERMINAL
94
[ 3.7 ]
3X M8x20 STUD
WITH NUT
T V
U
W
BRAKE
BRAKE
TERMINAL
292
[ 11.5 ]
MOTOR TERMINAL
A
U W
V
SECTION B-B
MOTOR TERMINALS
MOTOR
SECTION B-B
MOTOR TERMINALS AND
BRAKE TERMINALS
