Mechanical Installation
A-A

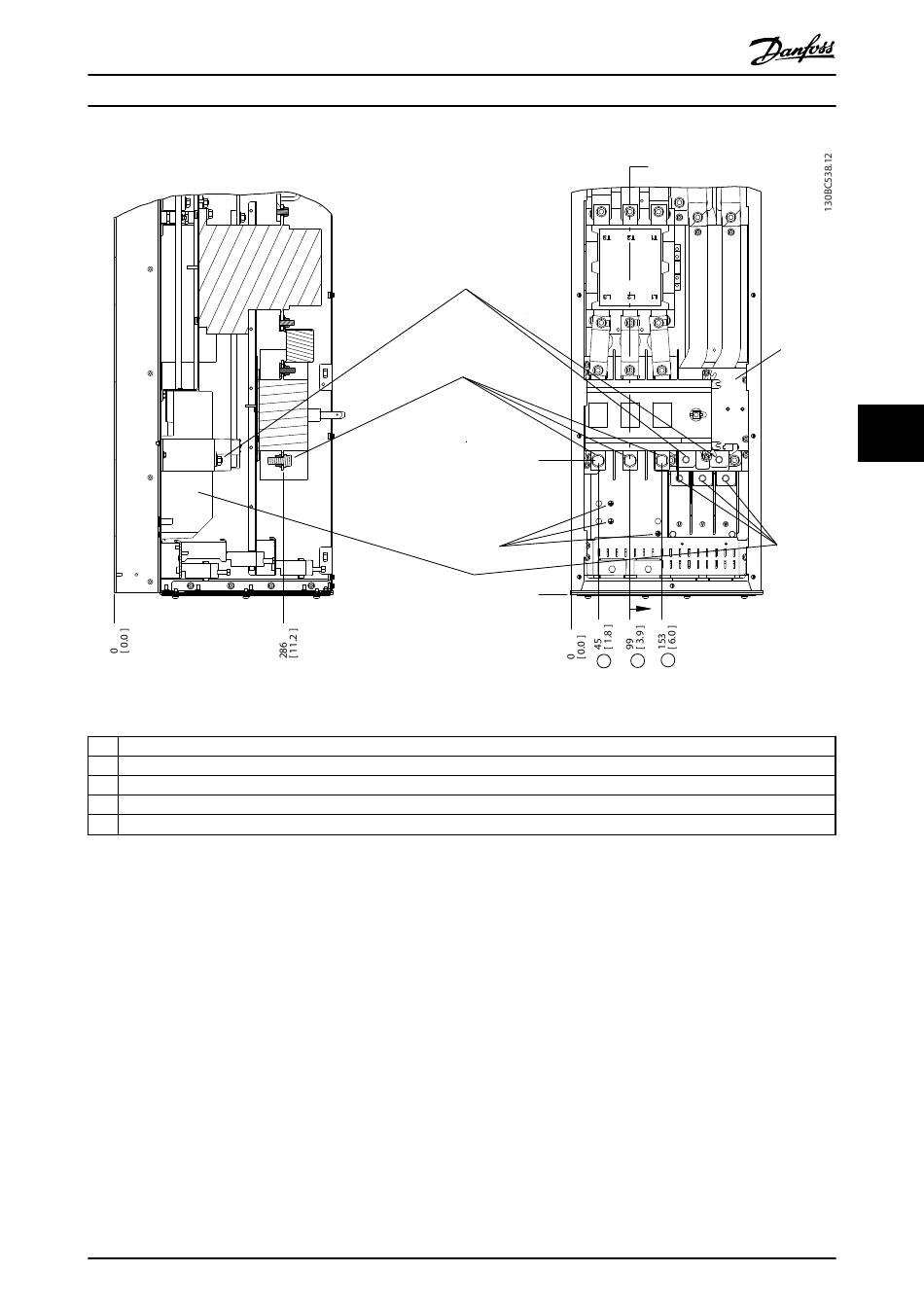

Illustration 6.53 Terminal Locations, D6h with Contactor and Disconnect Options
1 Brake Terminals
2 TB6 Terminal block for contactor
3 Motor Terminals
4 Earth/Ground Terminals
5 Mains Terminals
Table 6.26 Legend to Illustration 6.53
®
