Mechanical Installation
26
61
[1.0]
[2.4]
128
[5.0]
844
[33.2]
660
[26.0]
495
[19.5]

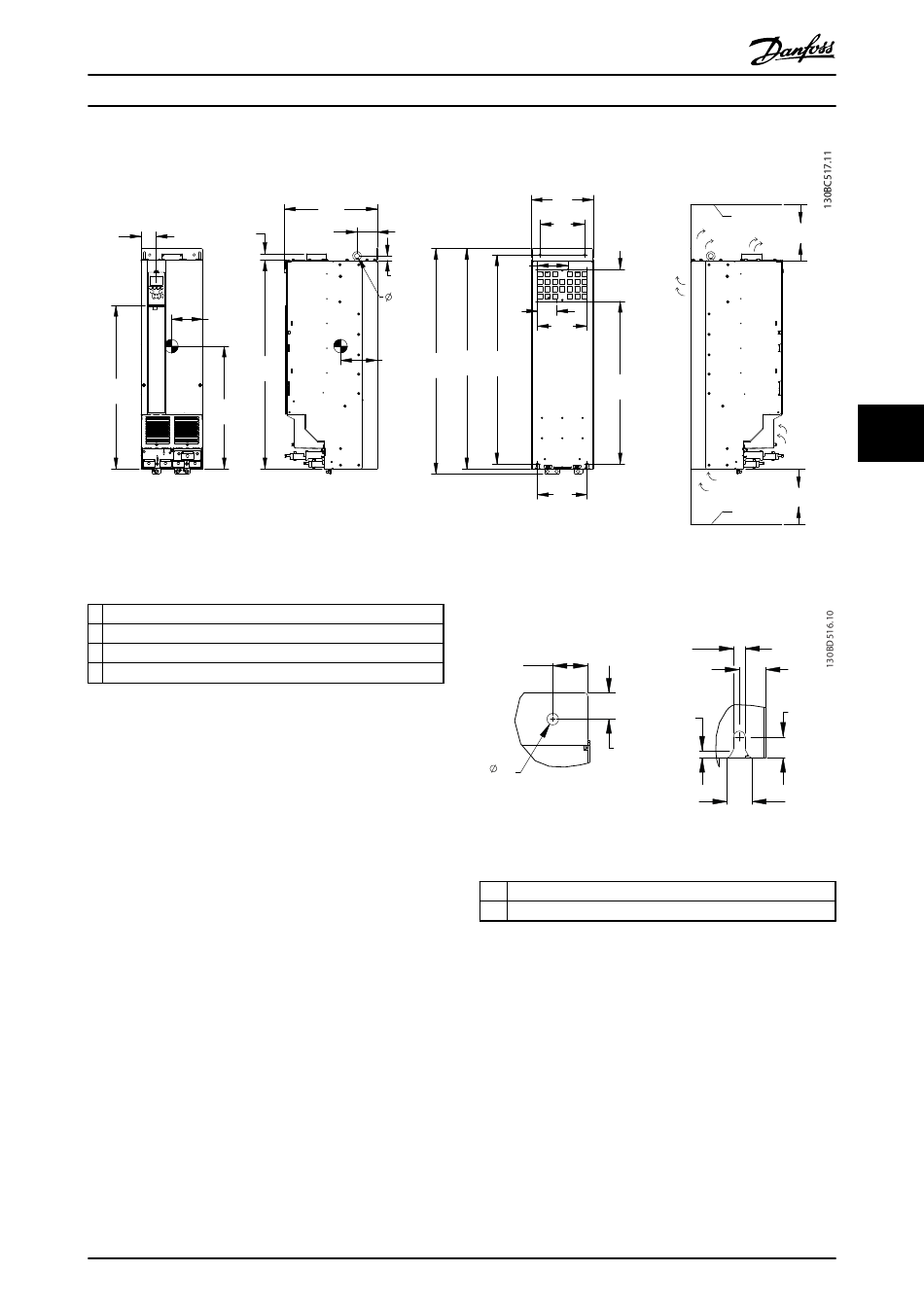

Illustration 6.11 Mechanical Dimensions, D3h
1 Ceiling
2 Air space outlet minimum 225 mm [8.9 in]
3 Air space inlet minimum 225 mm [8.9 in]
4 Floor
Table 6.5 Legend to Illustration 6.11
NOTICE
If using a kit to direct the airflow from the heat sink to
the outside vent on the back of the frequency converter,
the required ceiling clearance is 100 mm.
®
VLT AutomationDrive FC 300 Design Guide 90-1200 kW
375
[14.8]
82
[3.2]
18
[0.7]
20
[0.8]
889 844
148
909
[35.0] [33.2]
[5.8]
[35.8]
Illustration 6.12 Detail Dimensions, D3h
1
2
Table 6.6
