Mechanical Installation
Terminal Locations - Inverter Frame Size F10 and F11
6 6

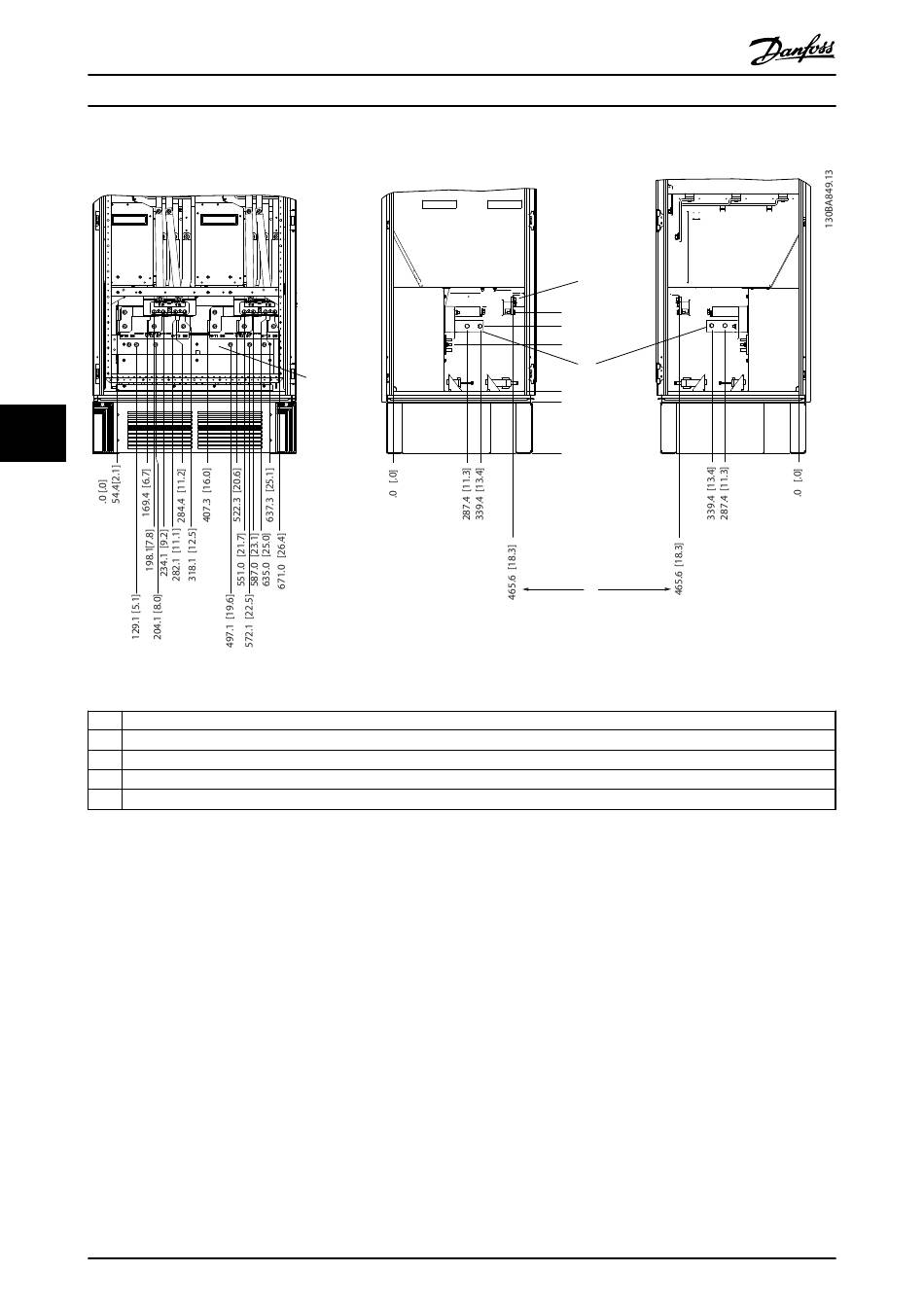

Illustration 6.75 Terminal Locations - Inverter Cabinet. Gland Plate is 42 mm below .0 Level.
1 Front View
2 Left Side View
3 Right Side View
4 Brake Terminals
5 Earth/Ground Bar
Table 6.42 Legend to Illustration 6.67
