Electrical Installation

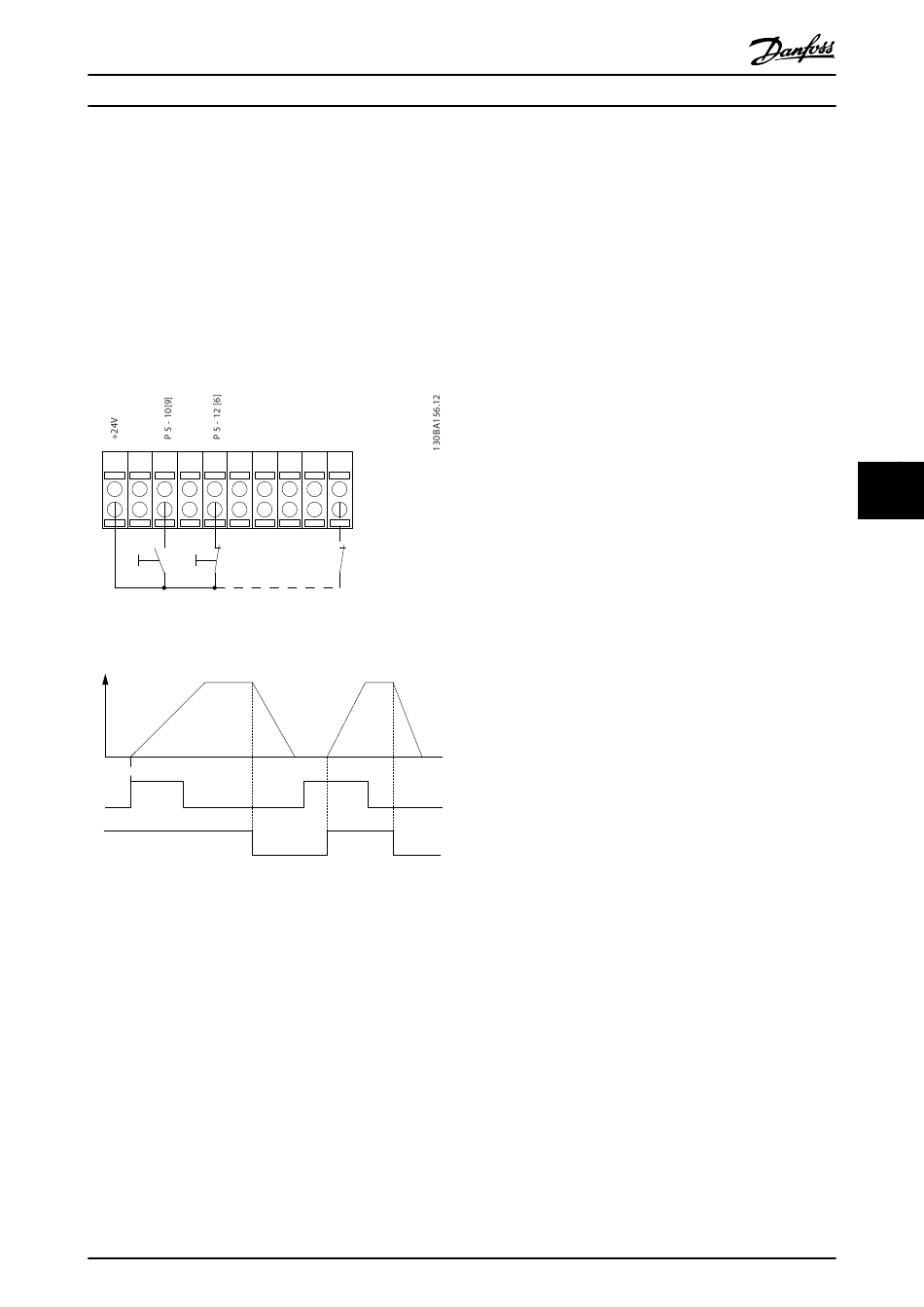

7.5.6 Basic Wiring Example

1. Mount the terminals from the accessory bag to
the front of the frequency converter.
2. Connect terminals 18, 27, and 37 to +24 V
(terminal 12/13)
Default Settings:
18=Start, 5-10 Terminal 18 Digital Input [9]
27=Stop inverse, 5-12 Terminal 27 Digital Input [6]
37=Safe torque off inverse
12 13 18 19 27 29 32
Start Stop inverse
Speed
Start (18)
Start (27)
Illustration 7.42 Basic Wiring
®
VLT AutomationDrive FC 300 Design Guide 90-1200 kW
33 20 37
Safe Stop
