Electrical Installation
®
VLT
AutomationDrive FC 300 Design Guide 90-1200 kW
Terminal Locations - D1h/D2h
Take the following position of the terminals into consideration when designing the cable access.
3
7
7
B
1

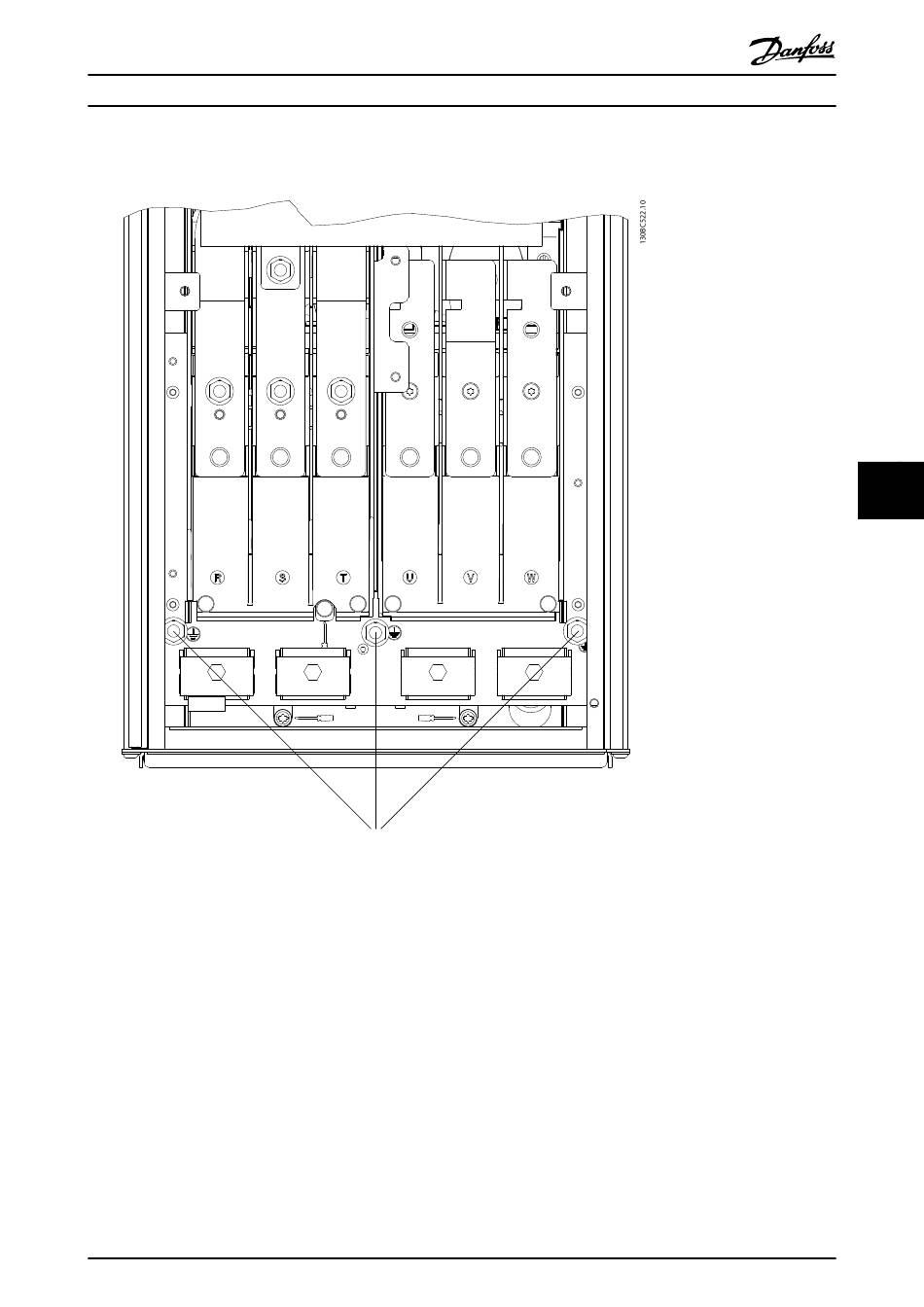

Illustration 7.5 Position of Earth Terminals IP21 (NEMA Type 1) and IP54 (NEMA Type 12), D1h/D2h
MG34S202 - Rev. 2013-08-19
163
