Electrical Installation
NOTICE
The F-Frames have 4 different sizes - F1, F2, F3 and F4. The F1 and F2 consist of an inverter cabinet on the right and
rectifier cabinet on the left. The F3 and F4 are F1 and F2 units, respectively, with an additional options cabinet to the
left of the rectifier.
Terminal Locations - Frame Sizes F1 and F3
Take the following position of the terminals into consideration when designing the cable access.
7 7

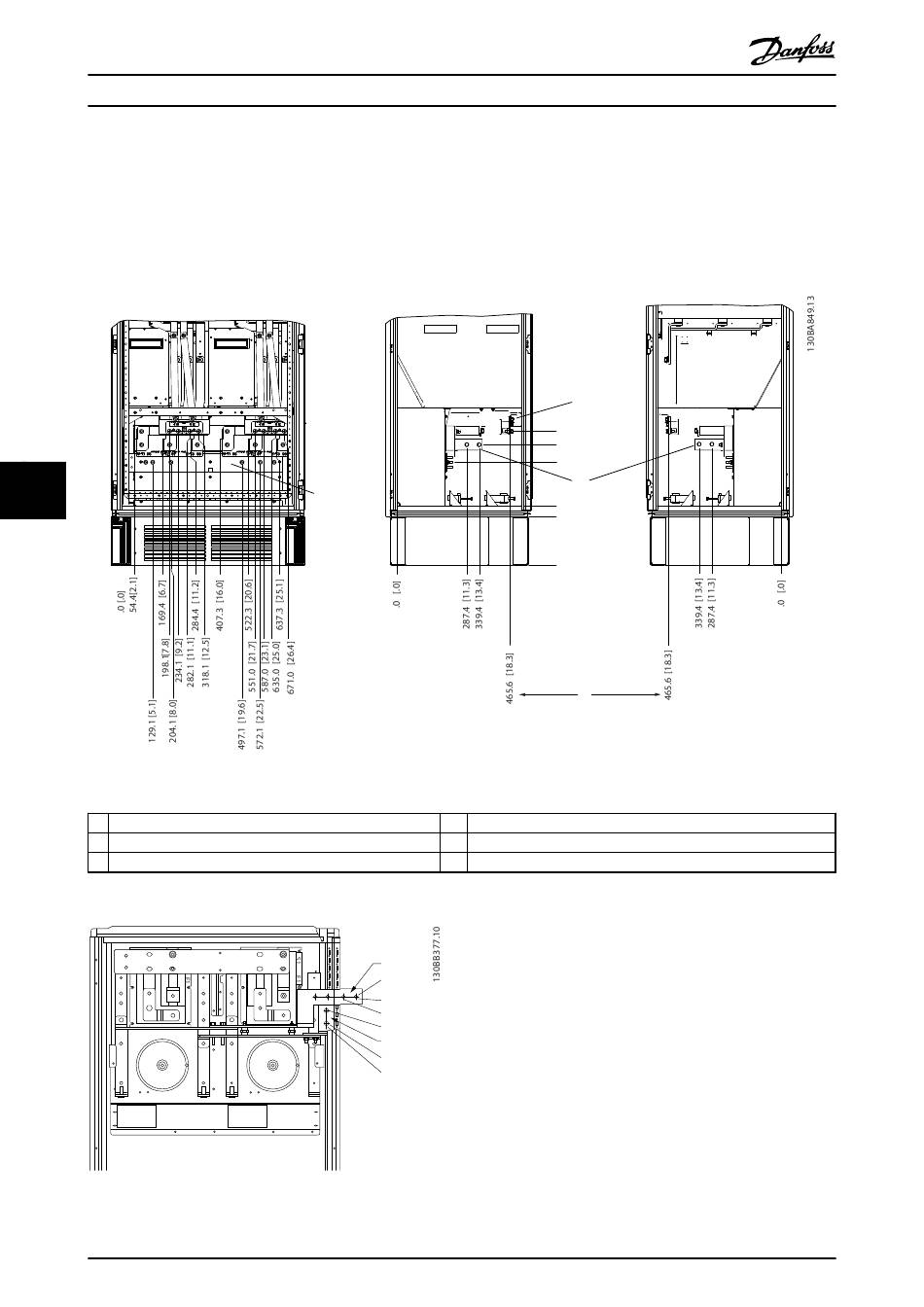

Illustration 7.24 Terminal Locations - Inverter Cabinet - F1 and F3. Gland Plate is 42 mm below .0 Level.
1 Front Side
2 Left Side
3 Right Side
Table 7.18 Legend to Illustration 7.24
Illustration 7.25 Regeneration Terminal Locations - F1 and F3
180
VLT
1
6
®
AutomationDrive FC 300 Design Guide 90-1200 kW
2
4 Earth ground bar
5 Motor Terminals
6 Brake Terminals
DC '-'
1739.1
805.0
765.0
1694.1
DC '+'
1654.1
710.0
MG34S202 - Rev. 2013-08-19
4
308.3 [12.1]
253.1 [10.0]
180.3 [7.1]
5
.0 [.0]
44.40 [1.75]
244.40 [9.62]
4
3
