Electrical Installation
D-frame Interior Components
7 7
15
(IP 21/54
NEMA 1/12)

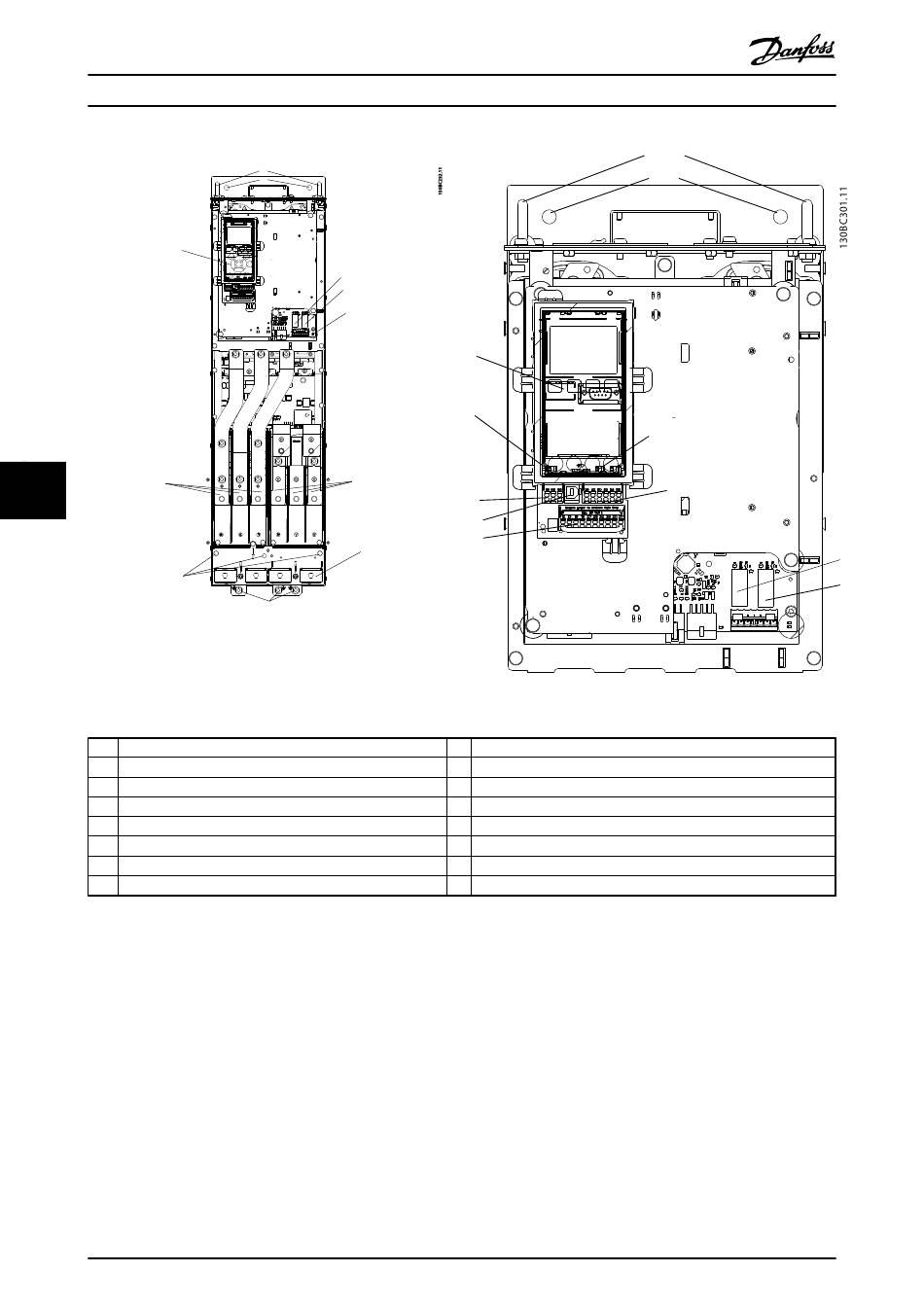

Illustration 7.3 D-frame Interior Components
1 LCP (Local Control Panel)
2 RS-485 serial bus connector
3 Digital I/O and 24 V power supply
4 Analog I/O connector
5 USB connector
6 Serial bus terminal switch
7 Analog switches (A53), (A54)
8 Relay 1 (01, 02, 03)
Table 7.3 Legend to Illustration 7.3 and Illustration 7.4
162
10
11
1
8
9
16
13
13 (IP 20/Chassis)
®
VLT AutomationDrive FC 300 Design Guide 90-1200 kW
1
6
14
2
5
3
12
Illustration 7.4 Close-up View: LCP and Control Functions
9 Relay 2 (04, 05, 06)
10 Lifting ring
11 Mounting slot
12 Cable clamp (PE)
13 Earth (ground)
14 Motor output terminals 96 (U), 97 (V), 98 (W)
15 Mains input terminals 91 (L1), 92 (L2), 93 (L3)
