(7) To prevent skewing the Stand Assembly during final assembly, tighten the screws in the following
order:
1. Tighten the 2 Lower Left screws.
2. Tighten the 2 Lower Right screws.
3. Tighten the 2 Middle Left screws.
4. Tighten the 2 Middle Right screws.
5. Tighten the 3 Upper Left screws.
6. Tighten the 3 Upper Right screws.
(8) Install the 4 End Caps.
(9) Return the Stand Assembly to it's upright position.
Note : The Front has a shorter base. The Front must have locking casters.
(10) Make sure the front of the plotter is aligned correctly.
Caution : Improper alignment of these pieces may cause the unit to become unstable when heavy loads
are added. In extreme cases, the unit may tip over.
Note : Always keep the wheels in a locked position when operating your plotter.

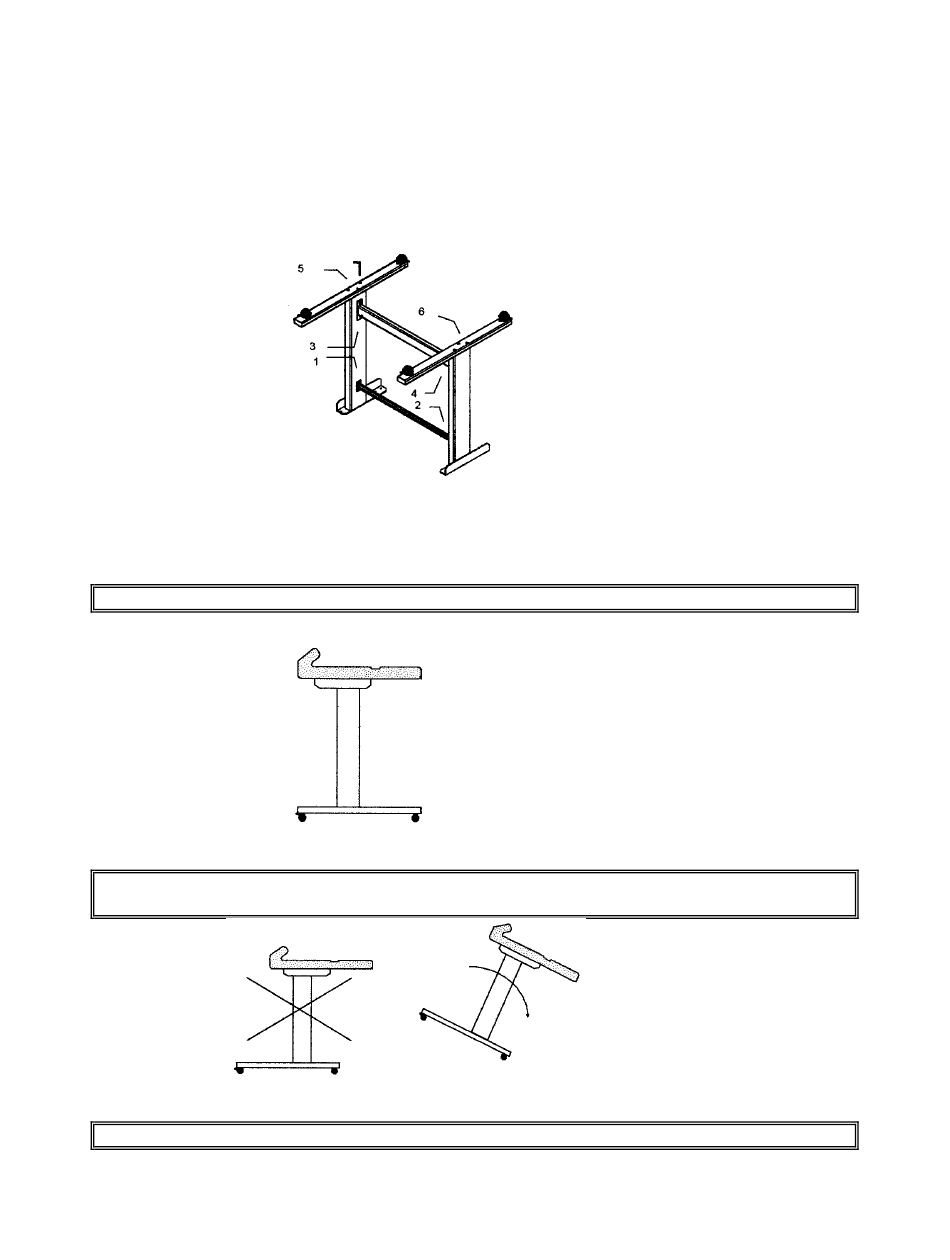

Fig. 4-113
Fig. 4-114
Fig. 4-115
4 - 51
FC3100-60 Service Manual
P/N53802-031T Rev. A
