4.2.9 Replacing the X Motor and X Motor Pulley

Replacing the X Motor
(1) Remove the side covers (see Subsection 4.1.1).
(2) Remove the rear guide (see Subsection 4.1.2).
(3) Loosen the tension of the X drive belt.
* Structurally, the screwdriver contacts the chassis and synchro belt.
* Be careful not to damage the X motor pulley.
• Four M3 x L8 pan-head with flat washer screws
(4) Remove the X motor.
(5) To mount the X motor, reverse the above procedure with special attention to the following point.
* As shown in Fig.4-61, mount the motor so that its leads emerge from the top of the motor.
(6) Adjust the X drive belt's tension (see Subsection 4.2.5).

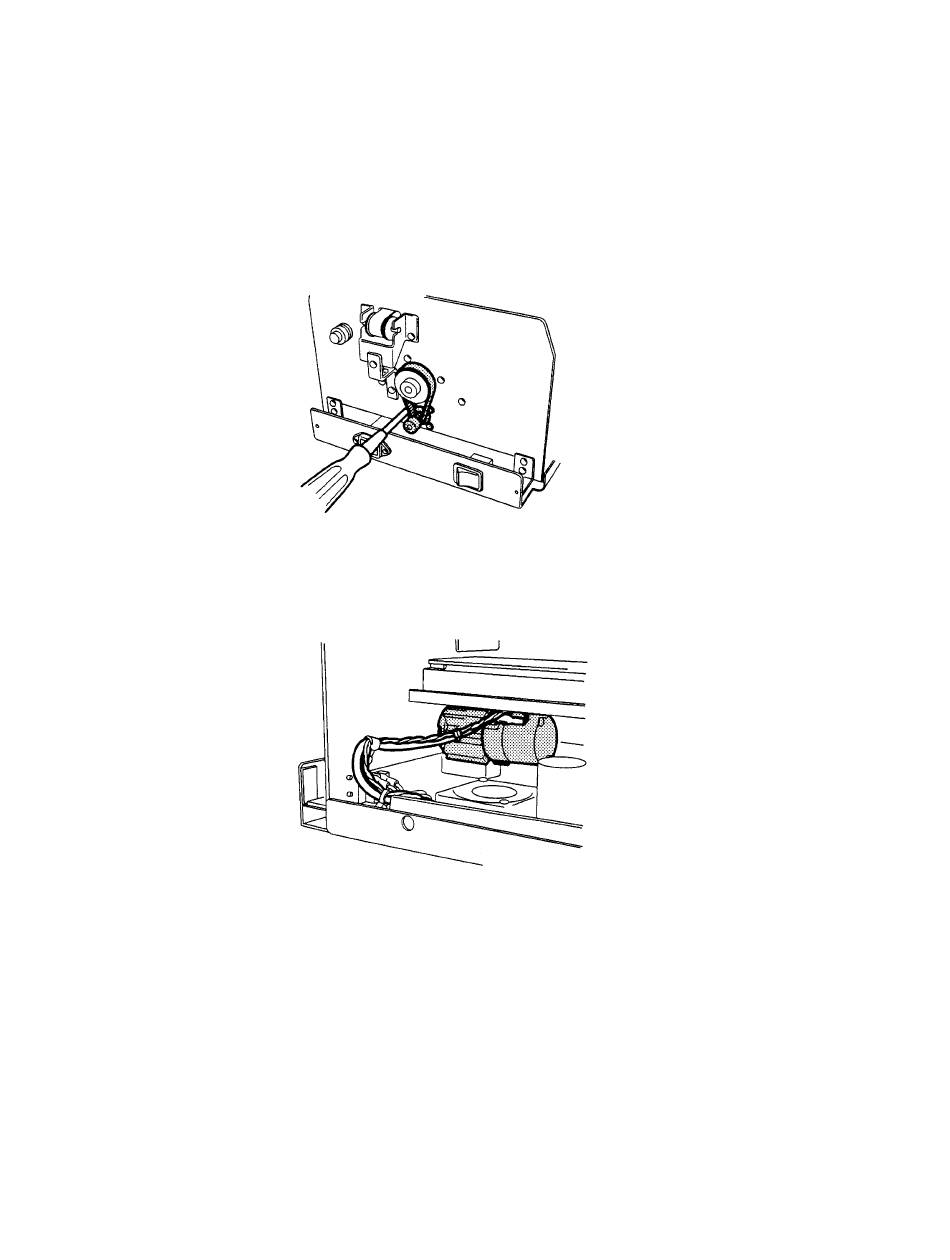

Fig. 4-60
Fig. 4-61
