5.6 Default Trimmer Settings

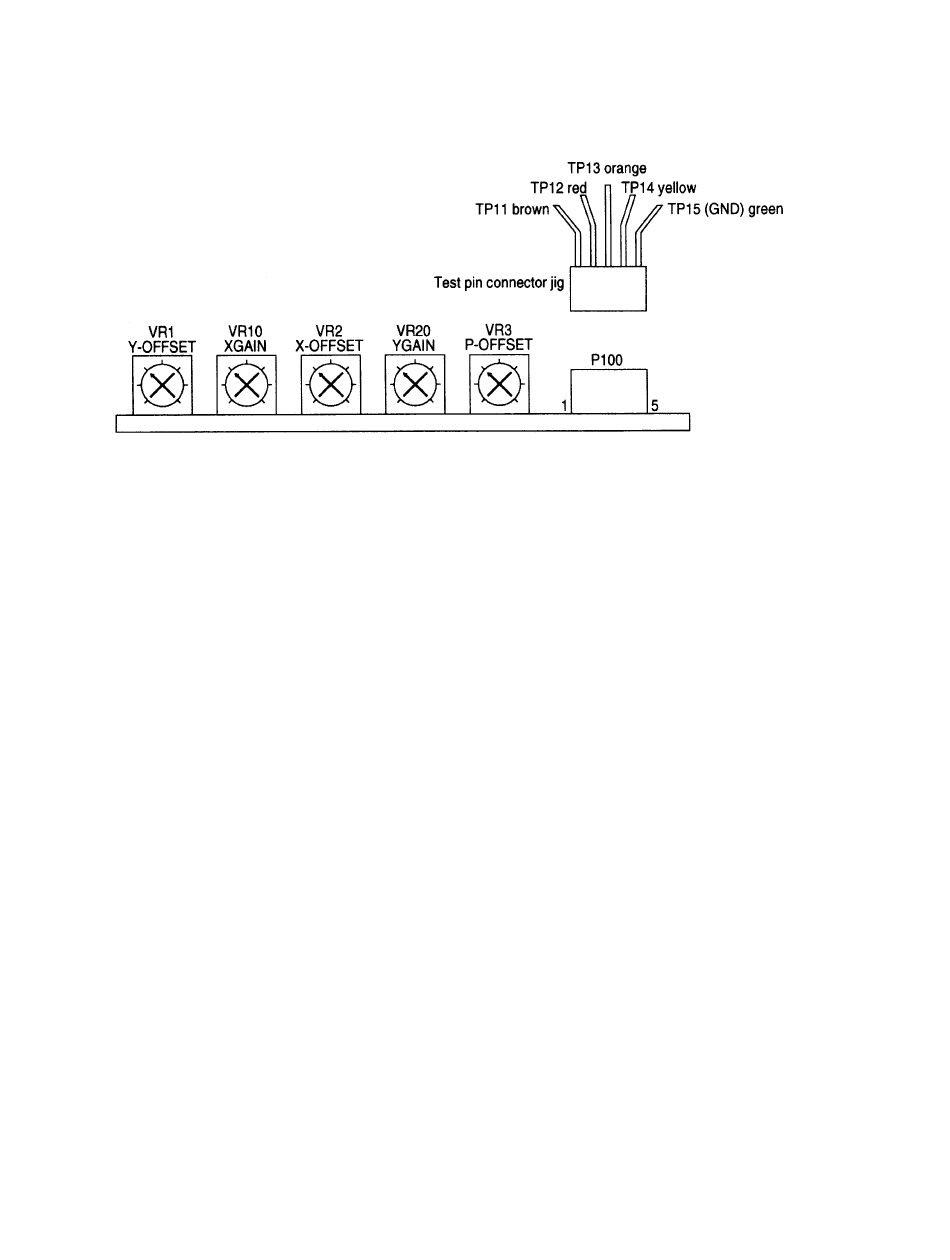

Before turning the plotter back on, set each of the main board's trimmers as indicated below.
VR1 (Y-OFFSET)
VR2 (X-OFFSET)
VR3 (P-OFFSET)
VR10 (X-GAIN)
VR20 (Y-GAIN)
Brown : TP11
Red : TP12
Orange : TP13
Yellow : TP14
Green : TP15 (GND)
: Trimmer for adjusting the Y motor offset
: Trimmer for adjusting the X motor offset
: Trimmer for adjusting the pen offset
: Trimmer for adjusting the X motor gain
: Trimmer for adjusting the Y motor gain
5 - 6
