2.9 Setting the Programmable Resolution

When GP-GL command mode is selected, this function lets you set the distance of pen movement
corresponding to the coordinate value of 1.
When HP-GLTM command mode is selected, this function is not displayed.
Note : Be sure to set the programmable resolution to match the corresponding setting of your software
application. If they are not set identically, the cutting results will not be the same size that you
specified.
Procedure
[ PAUSE ] : Press the [ PAUSE ] key to select PAUSE mode.
↓
[ NEXT ] : Press the [ NEXT ] key.
↓
[ NEXT ] : Press the [ NEXT ] key again.
↓
[ 1 ] : Press the [ 1 ] key to select INTERFACE.
↓
[ 1 ] : Press the [ 1 ] key to select STEP SIZE.
↓

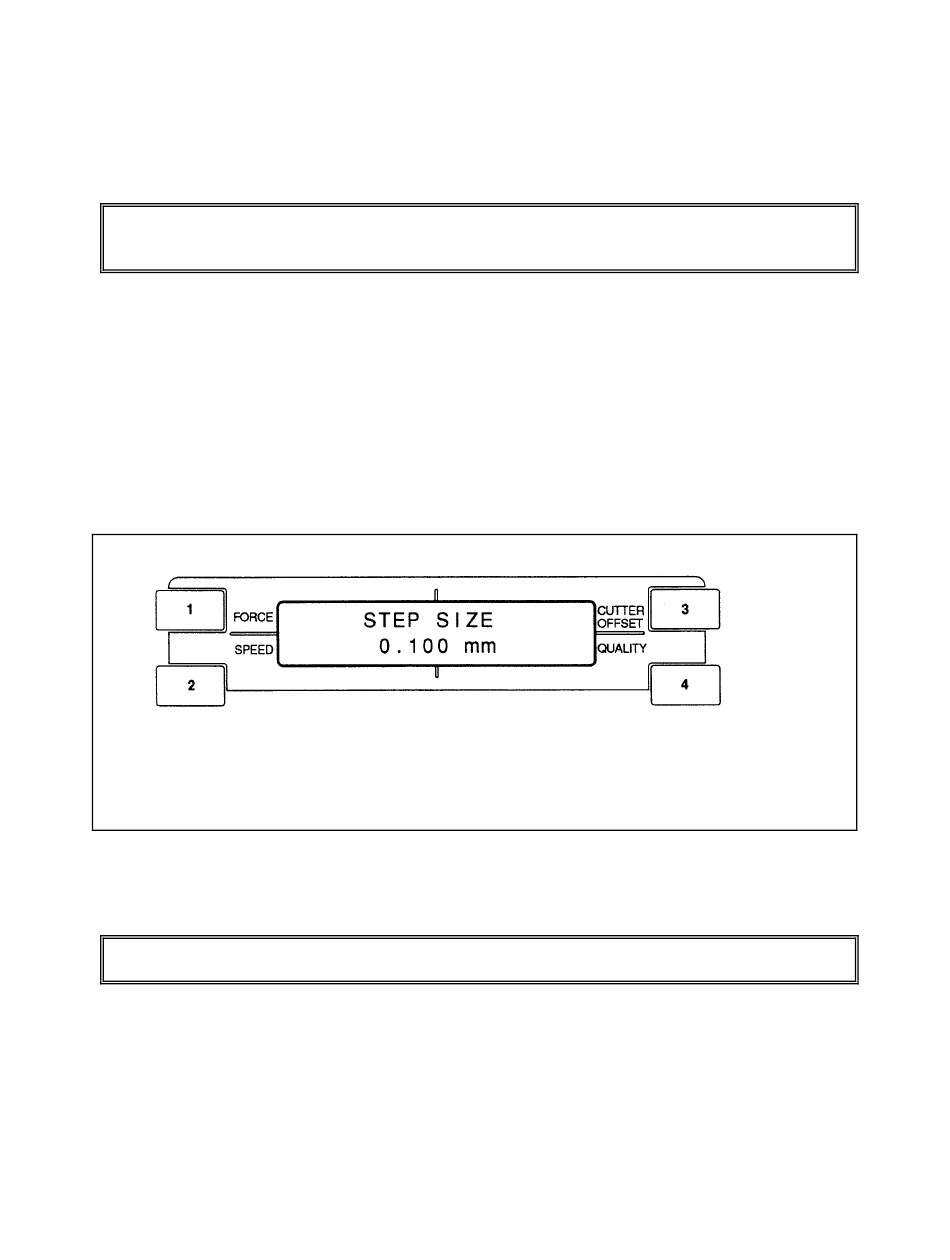

The sub-menu below appears.
To select the programmable resolution, consecutively press the [ ⇑ ] or [ ⇓ ] key to cycle through the
available sizes in the sequence below.
→ 0.010 ↔ 0.025 ↔ 0.050 ↔ 0.100 ←
|_______________________________|
↓
[ ENTER ] : Press the [ ENTER ] key to register your setting.
↓
[ PAUSE ] : Press the [ PAUSE ] key to cancel PAUSE mode.
Note : Your STEP SIZE setting is retained in the plotter's internal memory even while the plotter is
turned off.
