2.7 Setting the Serial Interface

To enable prompt compatibility with multiple software applications, you can register three different
groups of interface settings (RS-1, RS-2, and RS-3) in the plotter's non-volatile RAM. The desired group
of RS-232C interface settings can later be easily loaded from the control panel.
Incorrectly set interface conditions can cause the plotter to malfunction or not operate at all. Be sure to set
the plotter's interface conditions to match those of your computer and the target software application.
Note : For the specifications of your plotter's serial interface, see Section 2.11,"RS- 232C Serial
Interface."

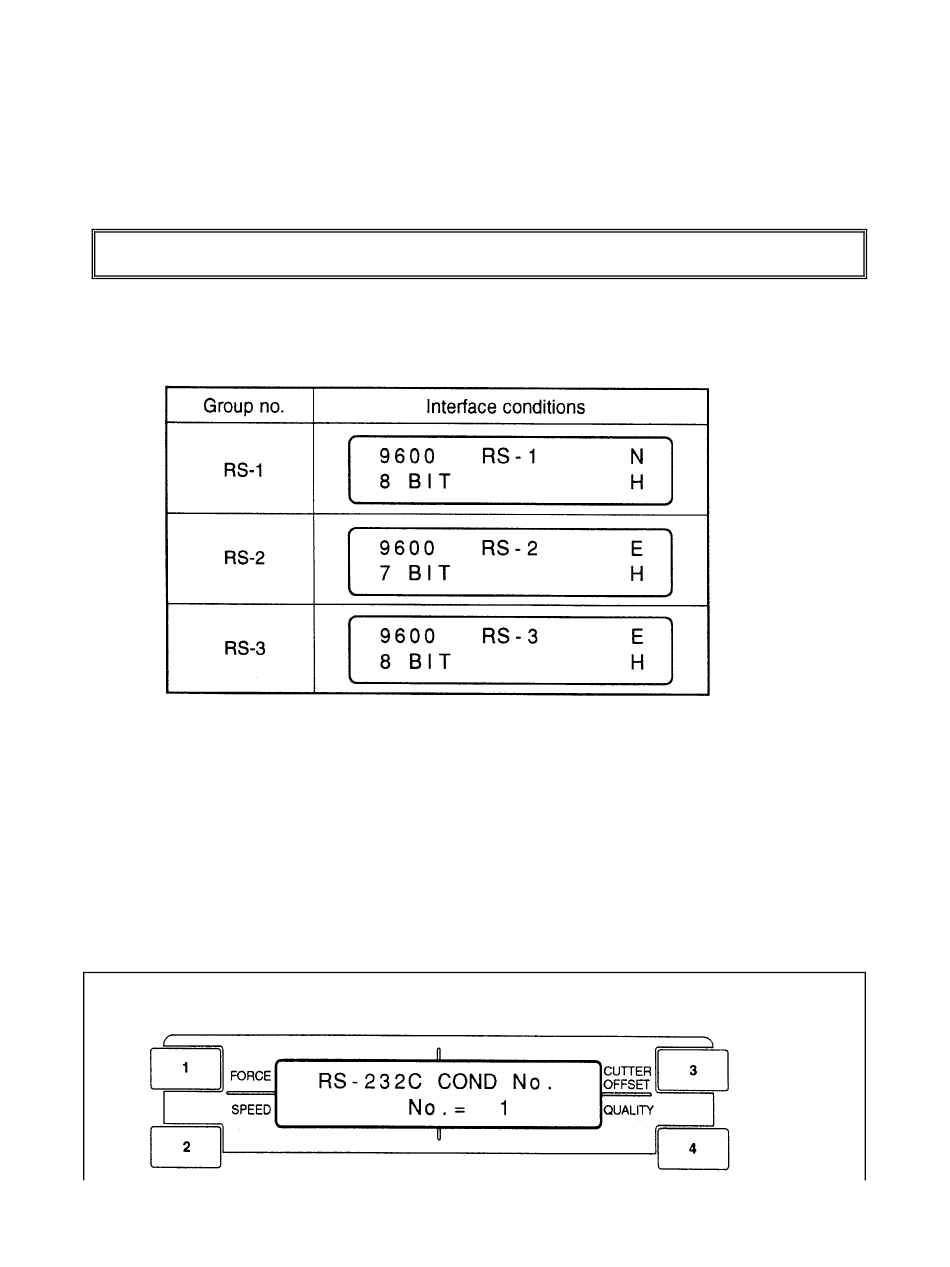

Factory Preset Interface Settings
Your plotter comes with its three groups of interface conditions set to the factory presets listed in the table
below.
Procedure
[ PAUSE ] : Press the [ PAUSE ] key to enter PAUSE mode.
↓
[ NEXT ] : Press the [ NEXT ] key.
↓
[ NEXT ] : Press the [ NEXT ] key again.
↓
[ 1 ] : Press the [ 1 ] key to select INTERFACE.
↓
[ 2 ] : Press the [ 2 ] key to select RS-232C.
↓
The menu below appears, so select the group of RS-232C interface conditions to be changed.
