4.6 The Pounce Tool Option

4.6.1 Replacing the Pouncing Pin

Special Precautions : The plotter uses a special pouncing cartridge and mat. Observe the following
precautions, whenever handling the pounce tool to prevent operator injury:
• The pounce tool point is very sharp, do no touch.
• The pin shaft will bend when mishandled.

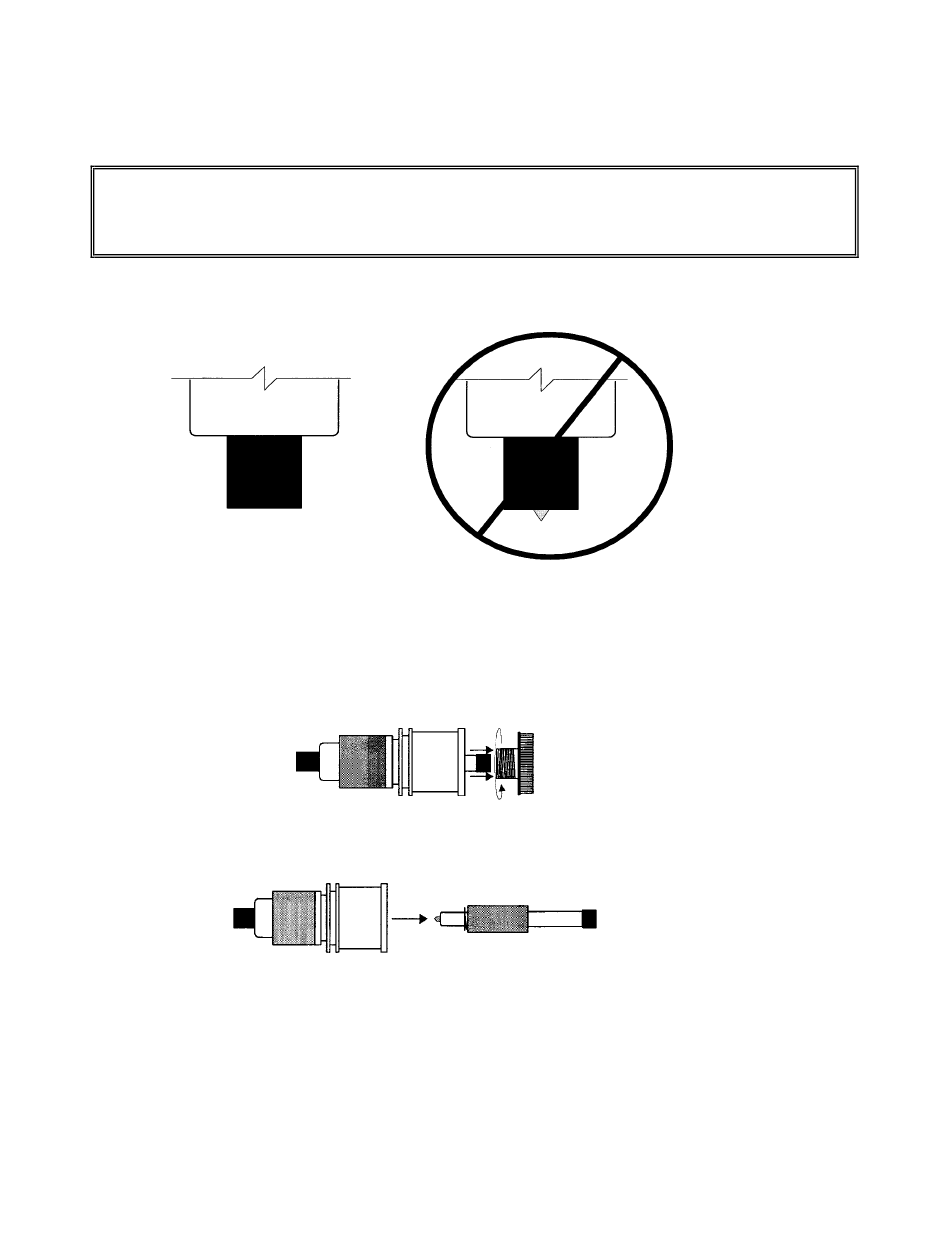

Handling the Pounce Tool
The pin of the cartridge is very sharp. Do not extend further than the safety cap.
Disassembling the Pouncing Pin
(1) Disassemble the cartridge on a clean, uncluttered, well lit work surface.
(2) Remove the cap at the top of the pounce tool by turning the cap counterclockwise.
Set the plastic cap on it's top so it will not roll away.
(3) Remove the plastic body of the pounce tool by slipping it off the bottom of the pounce tool. Set the
plastic body down on it's side to prevent the spring and safety cap from sliding out and getting lost.
Fig. 4-130
Fig. 4-131
Fig. 4-132
