4.5 The Stand and Media Basket Option

4.5.1 Overview

This Stand and Media Basket option was designed to keep media clean and reduce media handling
problems caused by debris adhering to media.

4.5.2 Assembling the Stand

Assembly Area : Assemble the Stand on a secure, flat surface.
Assembling the Stand

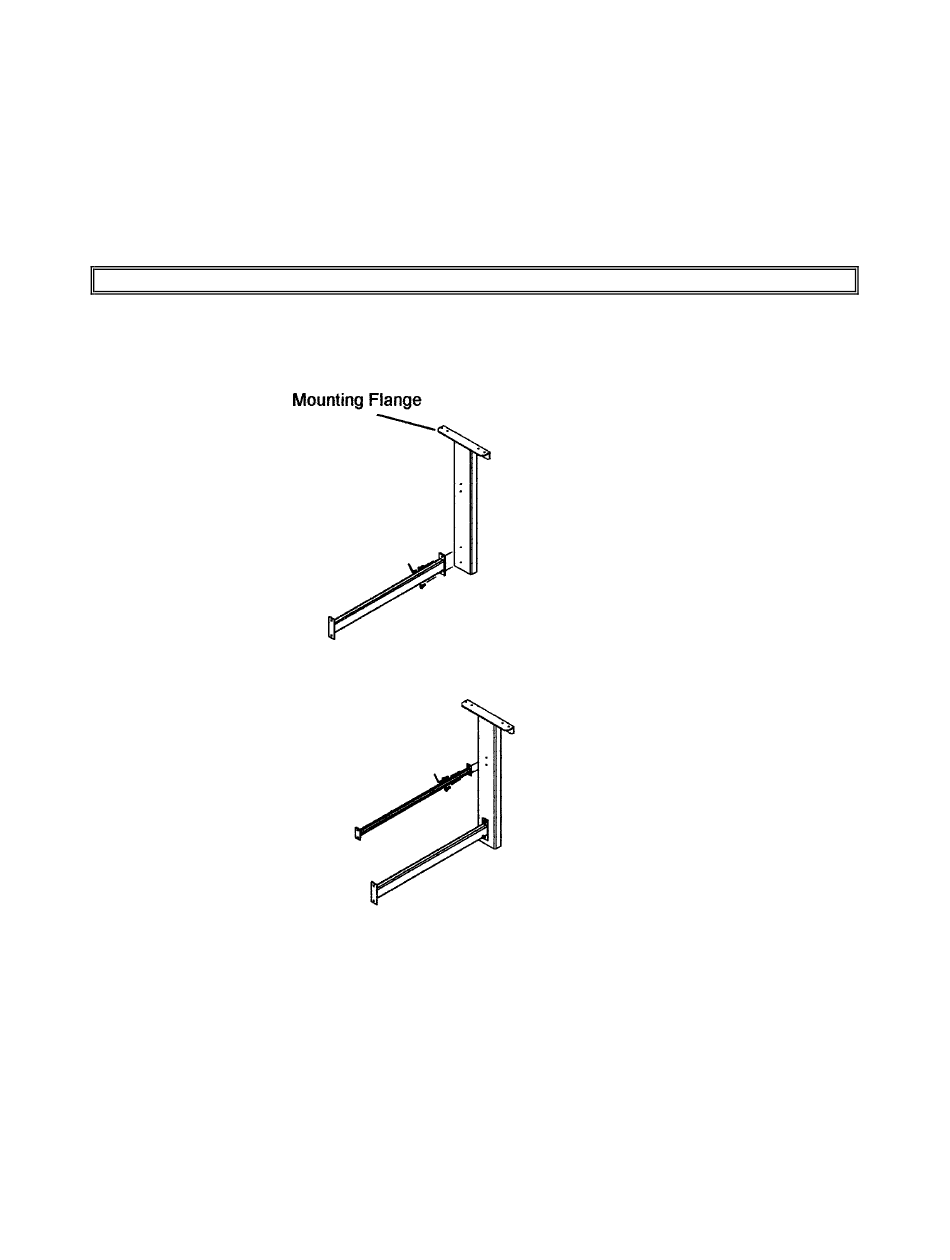

(1) Install the Bottom Connecting Tube to the Right Side Vertical Support with 2 M6 x 8mm Screws and
the M4 Hex Key.
(2) Install the Top Connecting Tube to the Right Side Vertical Support using the same hardware.
Fig. 4-109
Fig. 4-110
4 - 49
FC3100-60 Service Manual
P/N53802-031T Rev. A
