(2) To prevent skewing the Film Stocker Assembly during final assembly, tighten the screws in the
following order:
1. Tighten the Right Front screws.
2. Tighten the Left Front screws.
3. Tighten the Right Middle screws
4. Tighten the Left Middle screws.
5. Tighten the Right Rear screws.
6. Tighten the Left Rear screws.
7. Tighten the Right Side Plate screws.
8. Tighten the Left Side Plate screws.

4.4.3 Loading Sheet Film

Loading the Film
(1) Lower the film set lever to raise the push roller.
(2) Load a sheet of film in the plotter.
(3) Align the right edge of the sheet with the supply side and the front roll guides.
(4) Measure the distance of the front and rear roll guides from the media bracket to the edge of the roll
guide.

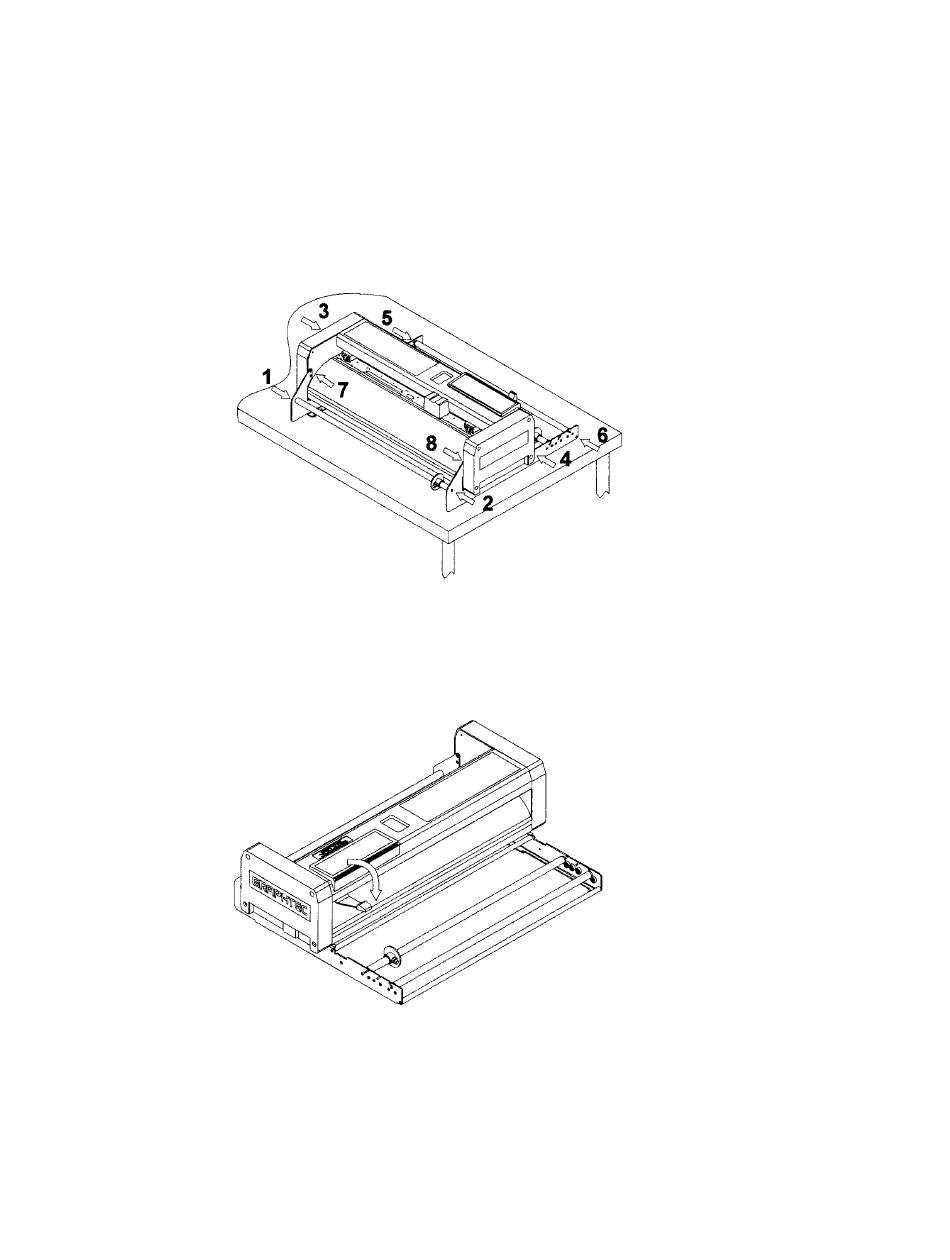

Fig. 4-103
Fig. 4-104
