4.2.7 Replacing and Adjusting the Push Roller Arm Assembly

Replacing a Push Roller

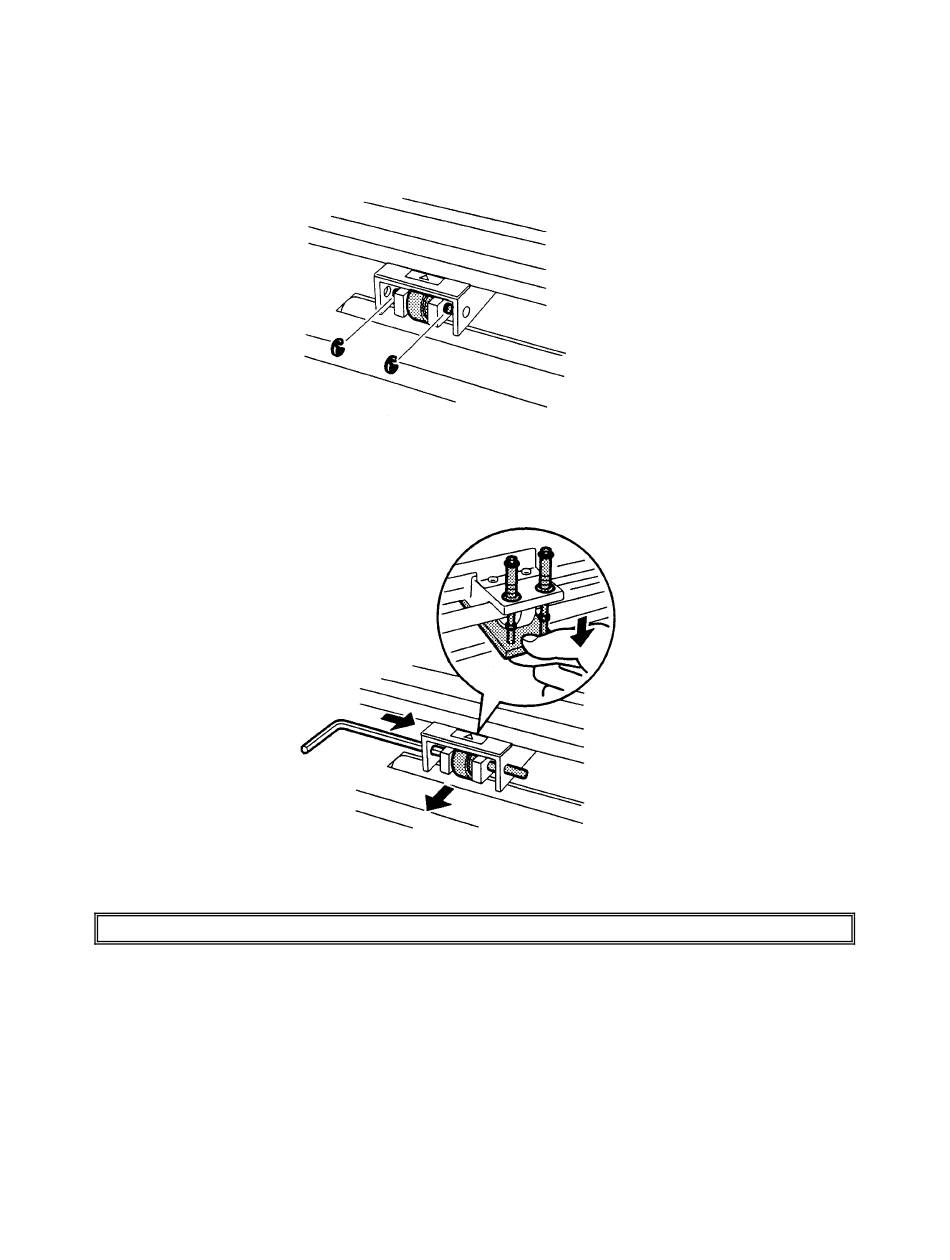

(1) As shown in Fig.4-43, remove the two E clips.
• Be sure not to lose them.
(2) Remove the push roller pin as shown in Fig.4-44.
• Press the push roller arm using your fingers.
• Use an L-shaped hex wrench or its equivalent.
(3) To attach the push roller, reverse the above procedure.
Note : Replacement of the entire push roller arm assembly can only be performed at the factory.
Fig. 4-43
Fig. 4-44
