5.19 Setting the DIP Switch from the LCD

This function allows you to set the main board's DIP switch from the LCD panel using the control panel
keys.
To cancel this function, clear the non-volatile RAM by turning on the plotter while holding down the [ ⇑ ]
POSITION key.
Note : This function cannot be used to set certain DIP switch functions.
(1) While concurrently holding down the [ ⇐ ] and [ ⇒ ] POSITION keys, turn on the plotter.

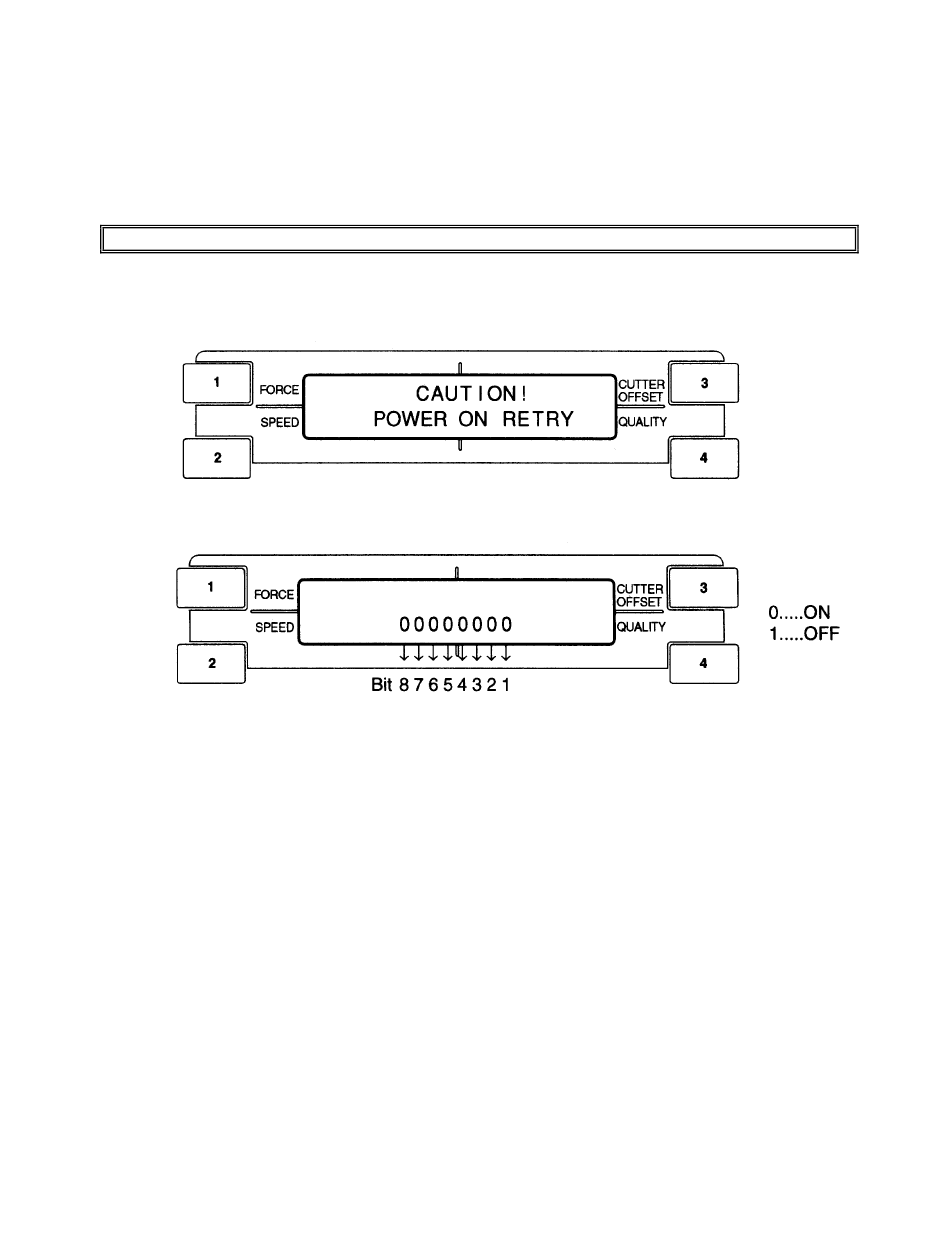

(2) The message below appears.
(3) Press the [ ENTER ] key to display the menu below.
The above numerals correspond to the bits of the DIP switch.
(4) Use the [ ⇐ ] or [ ⇒ ] POSITION key to shift the cursor to the desired position and then select its
ON/OFF status using the [ ⇑ ] or [ ⇓ ] POSITI0N key.
(5) Press the [ ENTER ] key to enable your new DIP switch settings to take effect.
