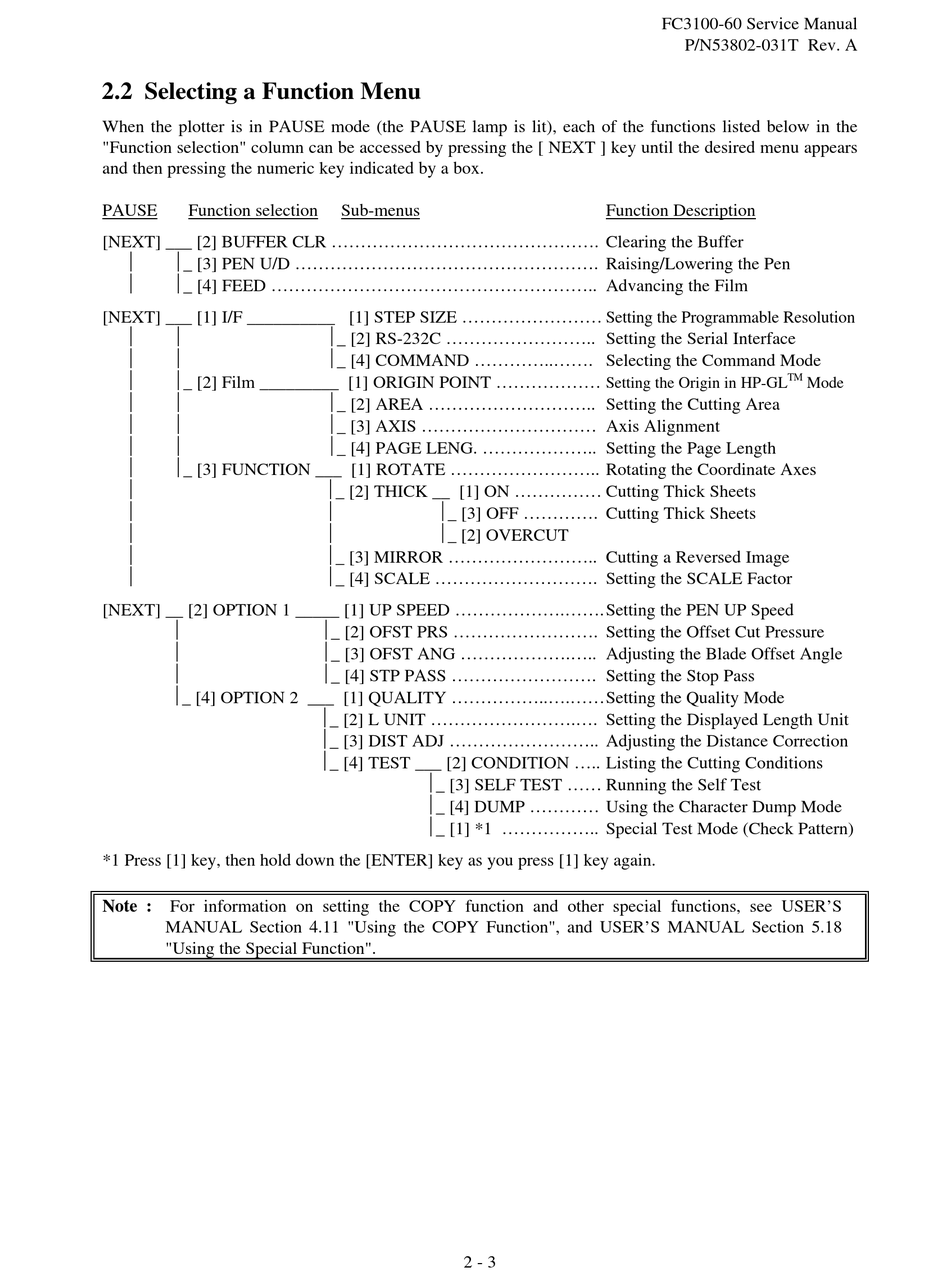

2.2 Selecting a Function Menu

When the plotter is in PAUSE mode (the PAUSE lamp is lit), each of the functions listed below in the
"Function selection" column can be accessed by pressing the [ NEXT ] key until the desired menu appears
and then pressing the numeric key indicated by a box.
PAUSE Function selection
[NEXT] ___ [2] BUFFER CLR .............................................. Clearing the Buffer
 _ [3] PEN U/D .................................................... Raising/Lowering the Pen
 _ [4] FEED ........................................................ Advancing the Film
[NEXT] ___ [1] I/F __________ [1] STEP SIZE ........................ Setting the Programmable Resolution
 
 
 _ [2] Film _________ [1] ORIGIN POINT ..................
 
 
 
 _ [3] FUNCTION ___ [1] ROTATE .......................... Rotating the Coordinate Axes





[NEXT] __ [2] OPTION 1 _____ [1] UP SPEED ..........................Setting the PEN UP Speed



_ [4] OPTION 2 ___ [1] QUALITY ...........................Setting the Quality Mode
*1 Press [1] key, then hold down the [ENTER] key as you press [1] key again.
Note : For information on setting the COPY function and other special functions, see USER'S
MANUAL Section 4.11 "Using the COPY Function", and USER'S MANUAL Section 5.18
"Using the Special Function".
Sub-menus
_ [2] RS-232C .......................... Setting the Serial Interface
_ [4] COMMAND ..................... Selecting the Command Mode
_ [2] AREA ............................. Setting the Cutting Area
_ [3] AXIS .............................. Axis Alignment
_ [4] PAGE LENG. .................... Setting the Page Length
_ [2] THICK __ [1] ON ............... Cutting Thick Sheets
 _ [3] OFF ............. Cutting Thick Sheets
 _ [2] OVERCUT
_ [3] MIRROR .......................... Cutting a Reversed Image
_ [4] SCALE ............................ Setting the SCALE Factor
_ [2] OFST PRS ......................... Setting the Offset Cut Pressure
_ [3] OFST ANG ........................ Adjusting the Blade Offset Angle
_ [4] STP PASS ......................... Setting the Stop Pass
_ [2] L UNIT ............................. Setting the Displayed Length Unit
_ [3] DIST ADJ .......................... Adjusting the Distance Correction
_ [4] TEST ___ [2] CONDITION ..... Listing the Cutting Conditions
_ [3] SELF TEST ...... Running the Self Test
_ [4] DUMP ............ Using the Character Dump Mode
_ [1] *1 ................. Special Test Mode (Check Pattern)
2 - 3
FC3100-60 Service Manual
P/N53802-031T Rev. A
Function Description
Setting the Origin in HP-GL
TM
Mode
